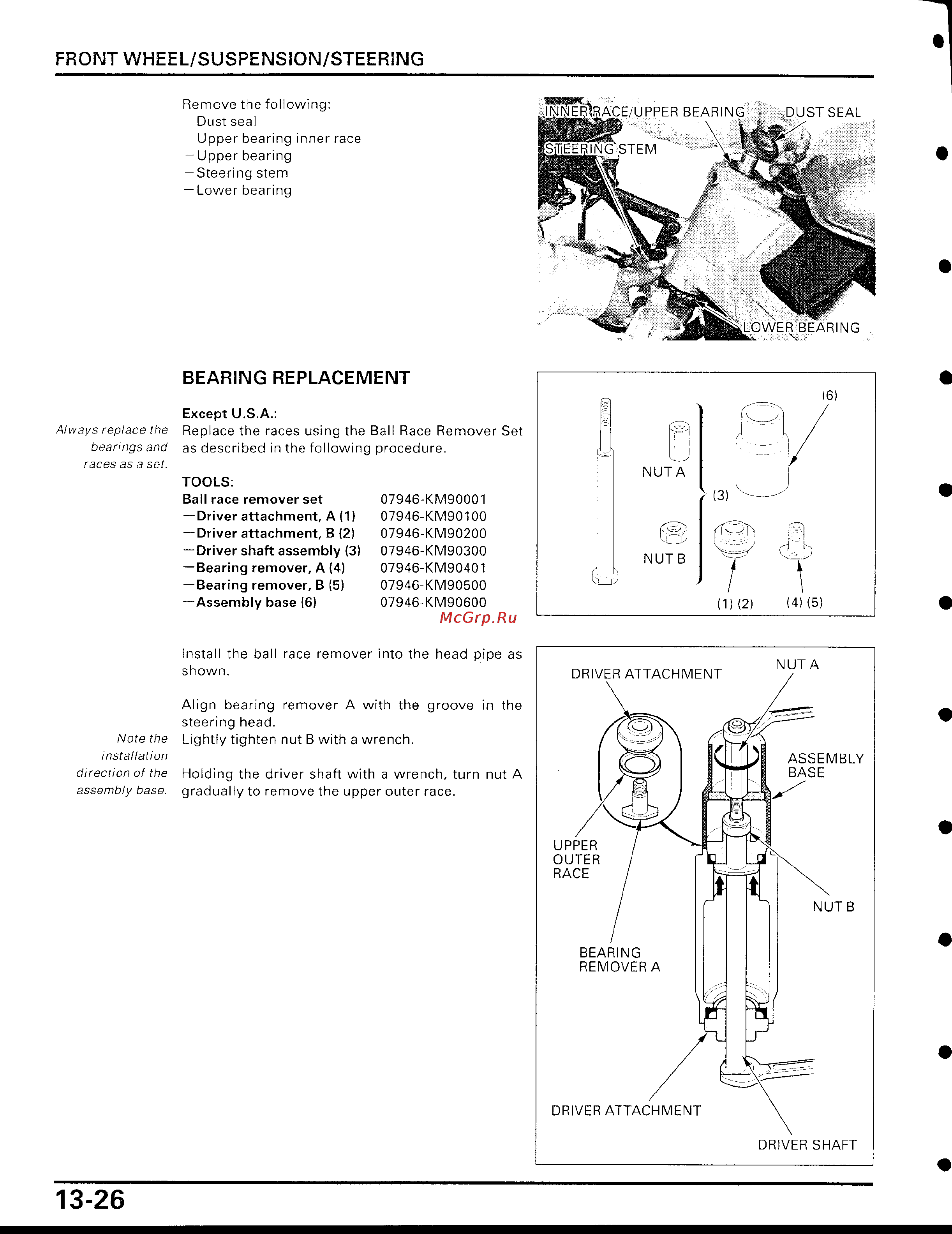

FRONT WHEEL/SUSPENSION/STEERING
Note the
installation
direction of the
assembly base
.
13-26
Remove the following
:
-Dust seal
Upper bearing inner race
-Upper bearing
-Steering stem
-Lower bearing
BEARING REPLACEMENT
Except
U
.S
.A
. :
Always replace the
Replace the races using the Ball Race Remover Set
bearings and
as described in the following procedure
.
races as a set
.
TOOLS
:
Ball race remover set
07946-KM90001
-Driver attachment, A (1)
07946-KM90100
-Driver attachment, B (2)
07946-KM90200
-Driver shaft assembly (3)
07946-KM90300
-Bearing remover, A (4)
07946-KM90401
-Bearing remover, B (5)
07946-KM90500
-Assembly base (6)
~
07946-KM90600
Install the ball race remover into the head pipe as
shown
.
Align bearing remover A with the groove in the
steering head
.
Lightly tighten nut B with a wrench
.
Holding the driver shaft with a wrench, turn nut A
gradually to remove the upper outer race
.
NNER RACE/UPPER BEARING
~
DUST SEAL
1' ,
J
G, -STEM
LOW R BEARING
NUT A
J
NUT B
(1) (2)
~
(4) (5)
(6)
DRIVER ATTACHMENT
BEARING
REMOVER A
DRIVER ATTACHMENT
a
NUT A
ASSEMBLY
BASE
UPPER
OUTER
RACE
NUT B
DRIVER SHAFT
