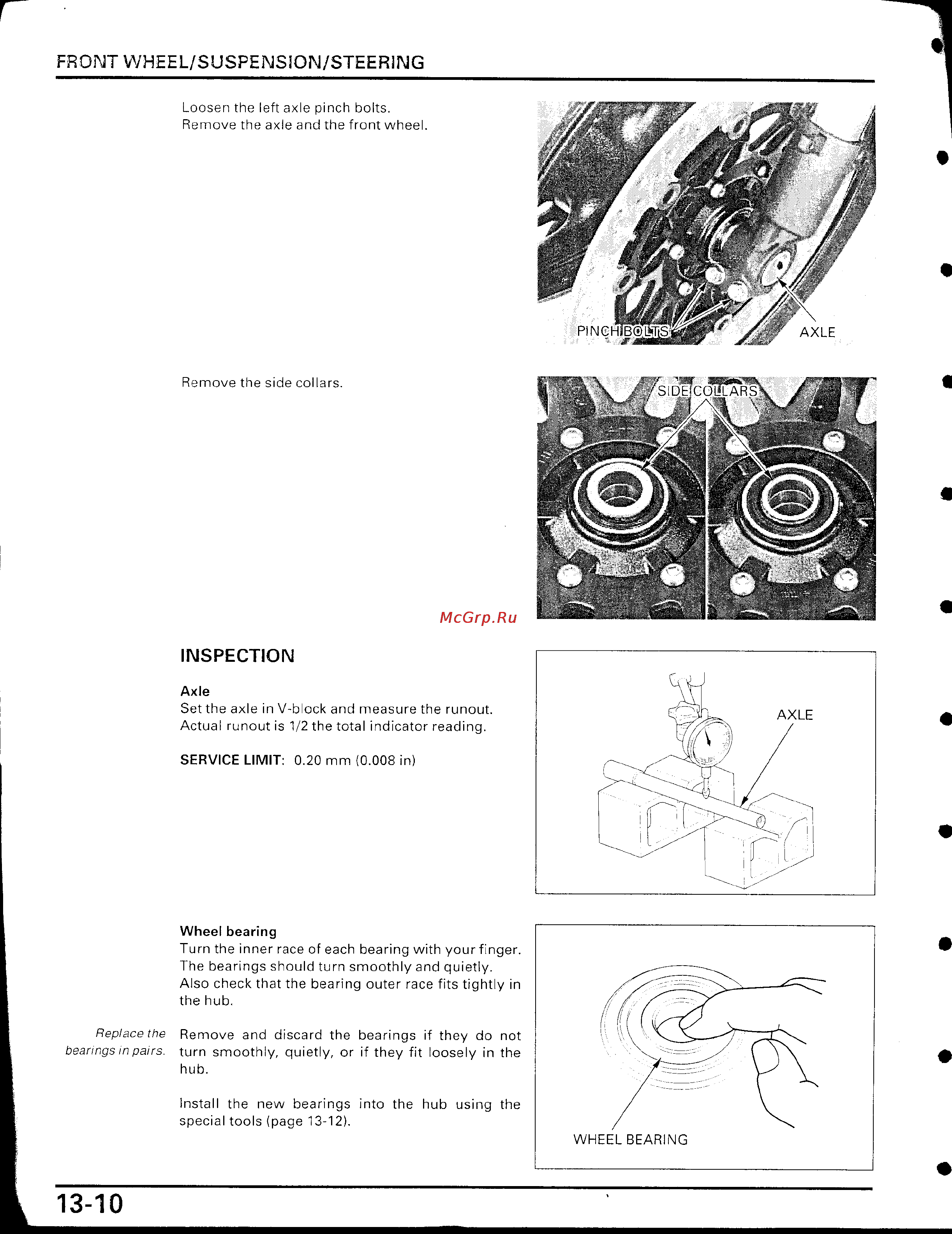

FRONT
WHEEL/SUSPENSION/STEERING
Loosen the left axle pinch bolts
.
Remove the axle and the front wheel
.
Remove the side collars
.
INSPECTION
Axle
Set the axle in V-block and measure the runout
.
Actual runout is 1/2 the total indicator reading
.
SERVICE LIMIT
:
0
.20 mm (0
.008 in)
Wheel bearing
Turn the inner race of each bearing with your finger
.
The bearings should turn smoothly and quietly
.
Also check that the bearing outer race fits tightly in
the hub
.
Replace the
Remove and discard the bearings if they do not
bearings in pairs
.
turn smoothly, quietly, or if they fit loosely in the
hub
.
Install the new bearings into the hub using the
special tools (page 13-12)
.
s
PIN I I
~
AXLE
111
AXLE
7
_/
WHEEL BEARING
6
