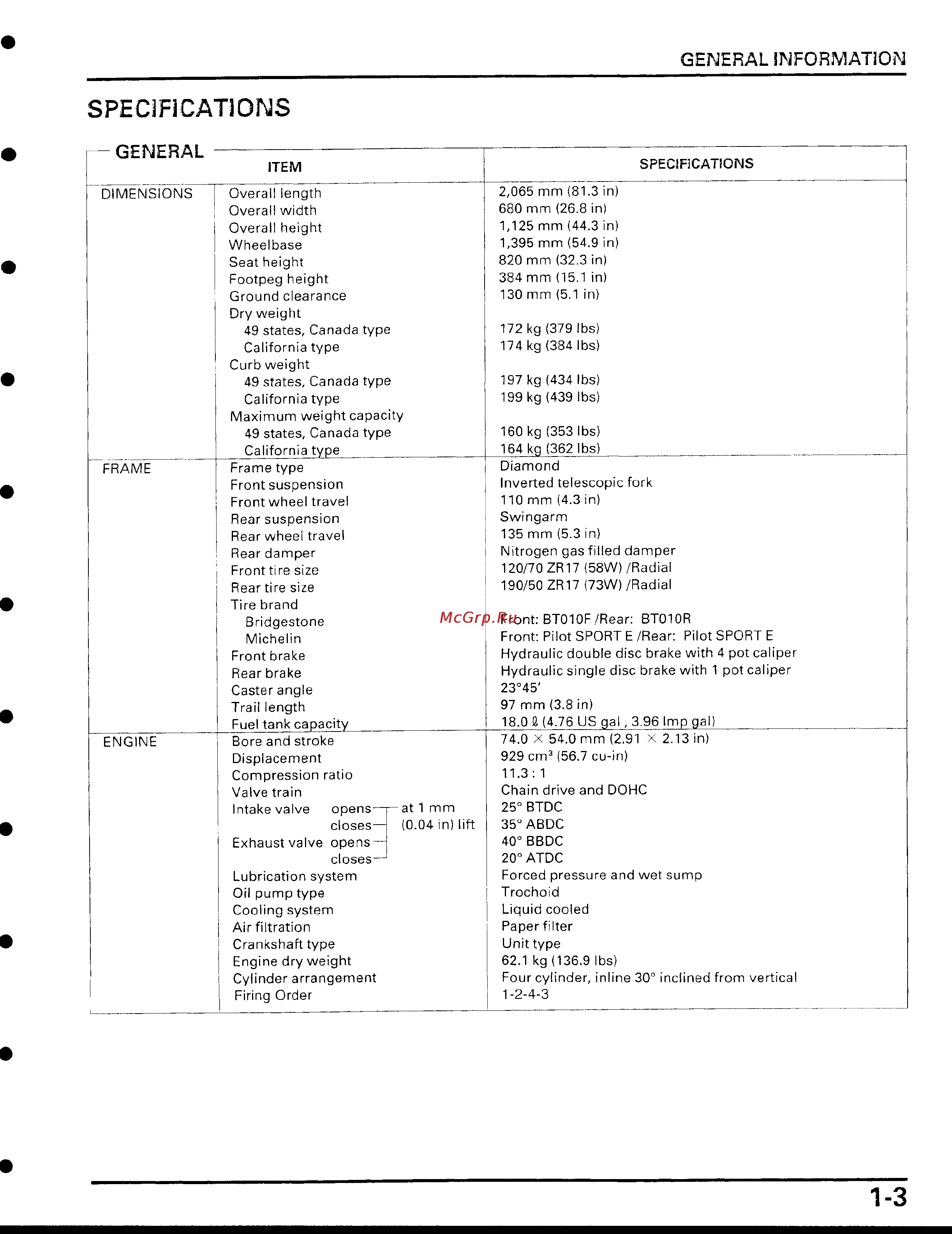

SPECIFICATIONS
GENERAL
DIMENSIONS
FRAME
ENGINE
ITEM
Overall length
Overall width
Overall height
Wheelbase
Seat height
Footpeg height
Ground clearance
Dry weight
49 states, Canada type
California type
Curb weight
49 states, Canada type
California type
Maximum weight capacity
49 states, Canada type
California type
Frame type
Front suspension
Front wheel travel
Rear suspension
Rear wheel travel
Rear damper
Front tire size
Rear tire size
Tire brand
Bridgestone
Michelin
Front brake
Rear brake
Caster angle
Trail length
Fuel tank capacity
Bore and stroke
Displacement
Compression ratio
Valve train
Intake valve
opens
~
at 1 mm
closes-
(0
.04 in) lift
Exhaust valve opens
-
closes
Lubrication system
Oil pump
type
Cooling system
Air filtration
Crankshaft type
Engine dry weight
Cylinder arrangement
Firing Order
2,065 mm (81
.3 in)
680 mm (26
.8 in)
1,125 mm (44
.3 in)
1,395 mm (54
.9 in)
820 mm (32
.3 in)
384 mm (15
.1 in)
130 mm (5
.1 in)
172 kg (379 Ibs)
174 kg (384 Ibs)
197 kg (434 Ibs)
199 kg (439 Ibs)
160 kg (353 Ibs)
164 kg (362 Ibs)
Diamond
Inverted telescopic fork
110 mm (4
.3 in)
Swingarm
135 mm (5
.3 in)
Nitrogen gas filled damper
120/70 ZR17 (58W) /Radial
190/50 ZR17 (73W) /Radial
GENERAL
INFORMATION
SPECIFICATIONS
Front
: BT01OF /Rear
: BT010R
Front
: Pilot SPORT E /Rear
: Pilot SPORT E
Hydraulic double disc brake with 4 pot caliper
Hydraulic single disc brake with 1 pot caliper
23°45'
97 mm (3
.8 in)
18
.0 2 (4
.76 US gal
, 3
.96 Imp gal)
74
.0
X
54
.0 mm (2
.91
X
2
.13 in)
929 cm
3
(56
.7 cu-in)
11
.3
: 1
Chain drive and DOHC
25° BTDC
35° ABDC
40° BBDC
20° ATDC
Forced pressure and wet sump
Trochoid
Liquid cooled
Paper filter
Unit type
62
.1 kg (136
.9 1 bs)
Four cylinder, inline 30° inclined from vertical
1-2-4-3
