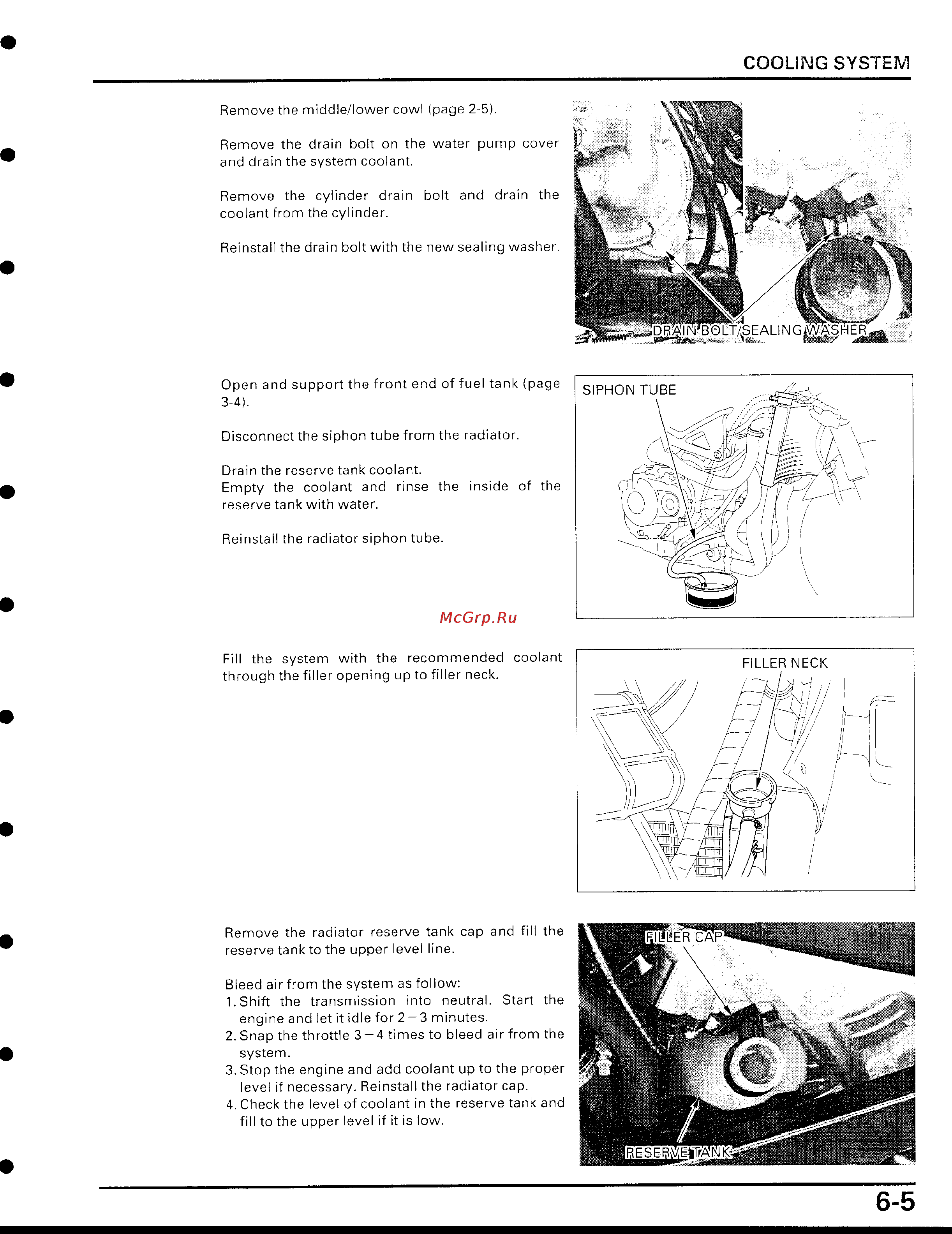

Remove the middle/lower cowl (page
2-5)
.
Remove the drain bolt on the water pump cover
and drain the system coolant
.
Remove the cylinder drain bolt and drain the
coolant from the cylinder
.
Reinstall the drain bolt with the new sealing washer
.
Open and support the front end of fuel tank (page
3-4)
.
Disconnect the siphon tube from the radiator
.
Drain the reserve tank coolant
.
Empty the coolant and rinse the inside of the
reserve tank with water
.
Reinstall the radiator siphon tube
.
Fill the system with the recommended coolant
through the filler opening up to filler neck
.
Remove the radiator reserve tank cap and fill the
reserve tank to the upper level line
.
Bleed air from the system as follow
:
1
. Shift the transmission into neutral
. Start the
engine and let it idle for 2-3 minutes
.
2
. Snap the throttle 3-4 times to bleed air from the
system
.
3
. Stop the engine and add coolant up to the proper
level if necessary
. Reinstall the radiator cap
.
4
. Check the level of coolant in the reserve tank and
fill to the upper level if it is low
.
SIPHON TUBE
FILLER NECK
RESERVE
COOLING SYSTEM
11
F/,SEALINGkv,'
~
HER
F LL R CAP
:
rA N
