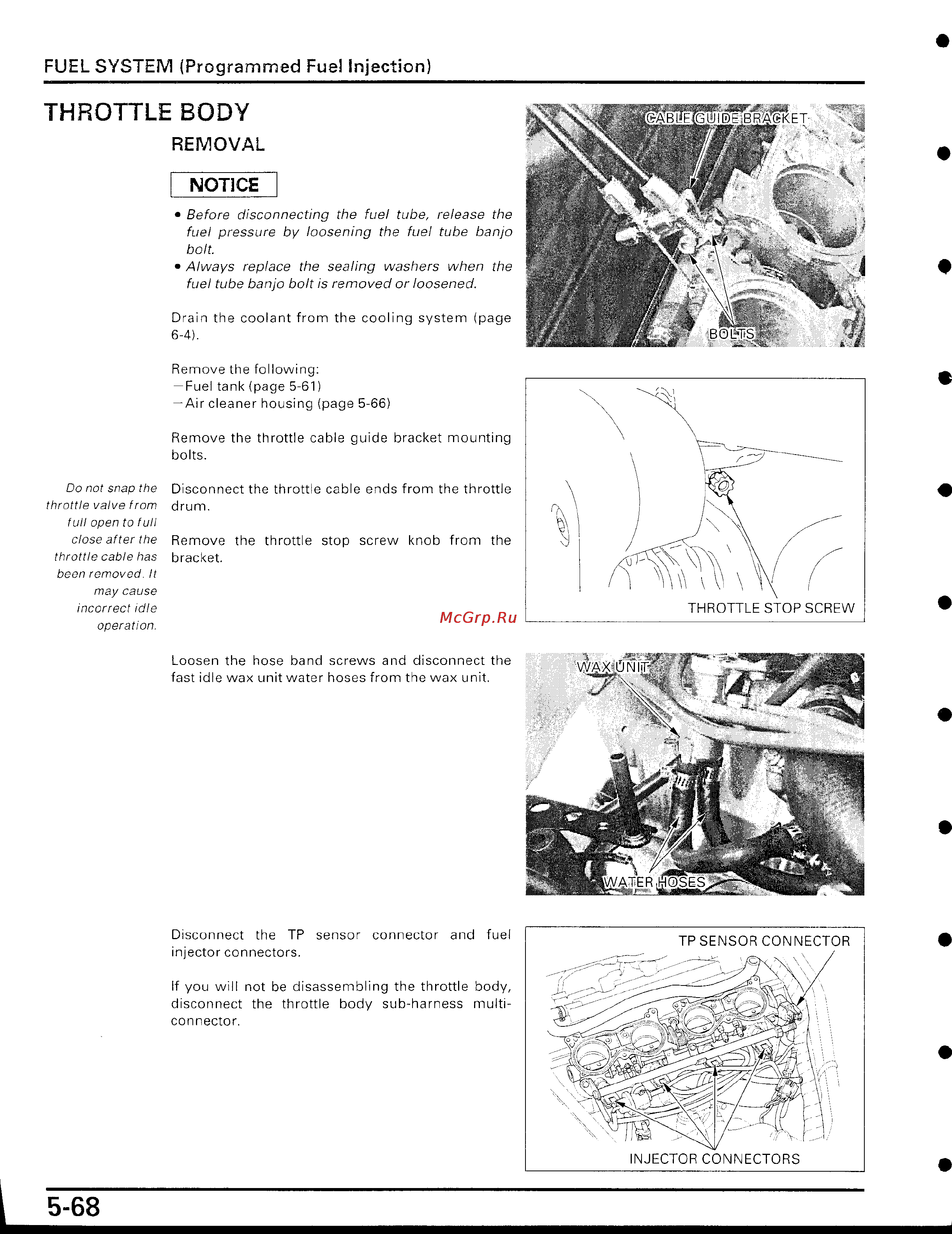

FUEL SYSTEM
(Programmed Fuel Injection)
THROTTLE BODY
REMOVAL
Do not snap the
throttle valve from
full open to full
close after the
throttle cable has
been removed
. It
may cause
incorrect idle
operation
.
NOTICE
•
Before disconnecting the fuel tube, release the
fuel pressure by loosening the fuel tube banjo
bolt
.
•
~
Always replace the sealing washers when the
fuel tube banjo bolt is removed or loosened
.
Drain the coolant from the cooling system (page
6-4)
.
Remove the following
:
-Fuel tank (page 5-61)
-Air cleaner housing (page 5-66)
Remove the throttle cable guide bracket mounting
bolts
.
Disconnect the throttle cable ends from the throttle
drum
.
Remove the throttle stop screw knob from the
bracket
.
Loosen the hose band screws and disconnect the
fast idle wax unit water hoses from the wax unit
.
Disconnect the TP sensor connector and fuel
injector connectors
.
If you will not be disassembling the throttle body,
disconnect the throttle body sub-harness multi-
connector
.
WAX-L Nl
-aTFR
.H
41
B
T
THROTTLE STOP SCREW
TP SENSOR CONNECTOR
1
INJECTOR CONNECTORS
