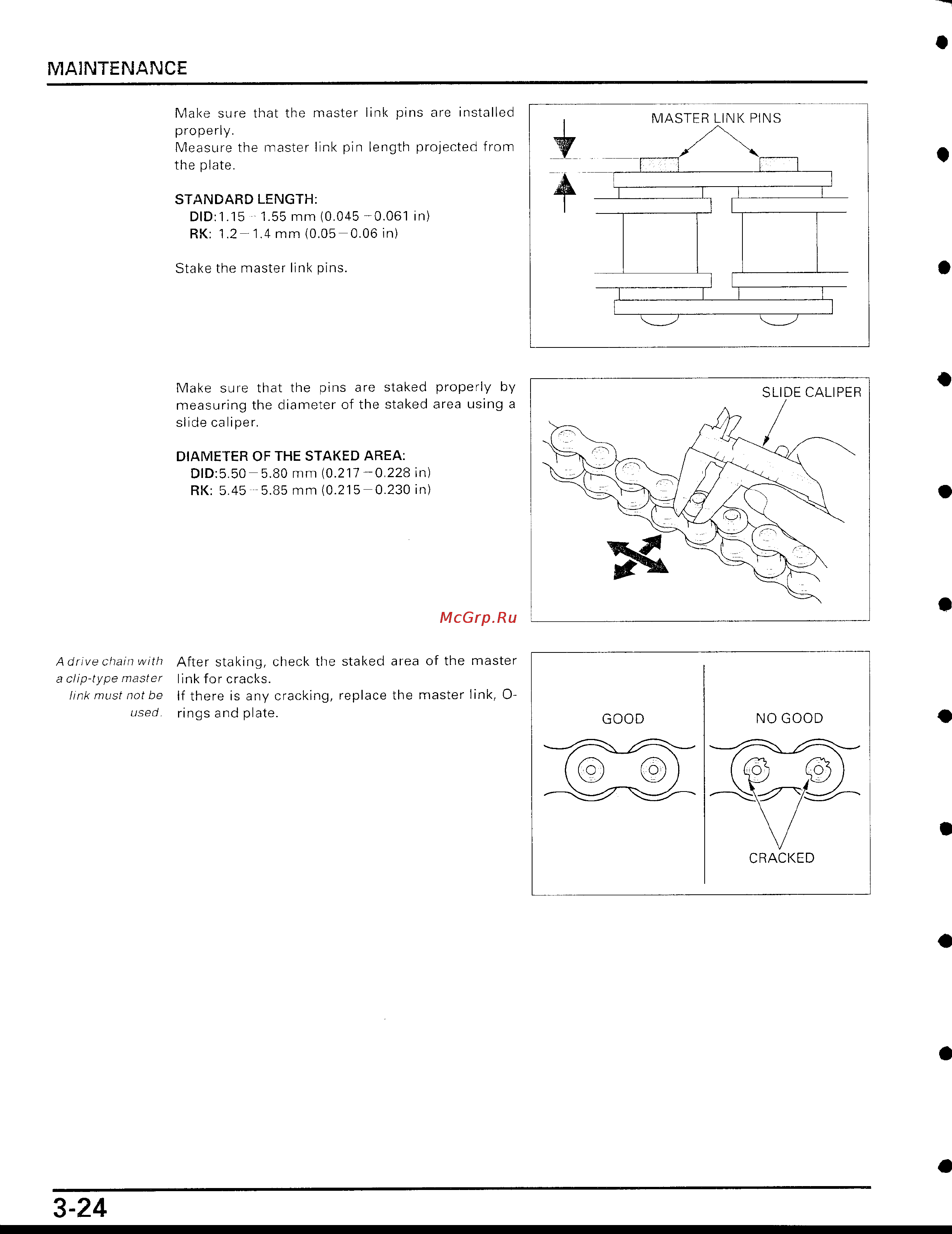

![Honda CBR929RR [93/488] The plat](/views2/1121098/page93/bg5d.png)
MAINTENANCE
Make sure that the master link pins are installed
properly
.
Measure the master link pin length projected from
the plate
.
STANDARD LENGTH
:
DID
:1
.15
-
1
.55 mm (0
.045 -0
.061 in)
RK
:
1
.2-1
.4 mm (0
.05-0
.06 in)
Stake the master link pins
.
Make sure that the pins are staked properly by
measuring the diameter of the staked area using a
slide caliper
.
DIAMETER OF THE STAKED AREA
:
DID
:5
.50
-
5
.80 mm (0
.217--0
.228 in)
RK
:
5
.45---5
.85 mm (0
.215-0
.230 in)
A drive chain with
After staking, check the staked area of the master
a clip-type master
link for cracks
.
link must not be
If there is any cracking, replace the master link, O-
usedd
rings and plate
.
MASTER LINK PINS
SLIDE CALIPER
GOOD
O O
O
NO GOOD
CRACKED
