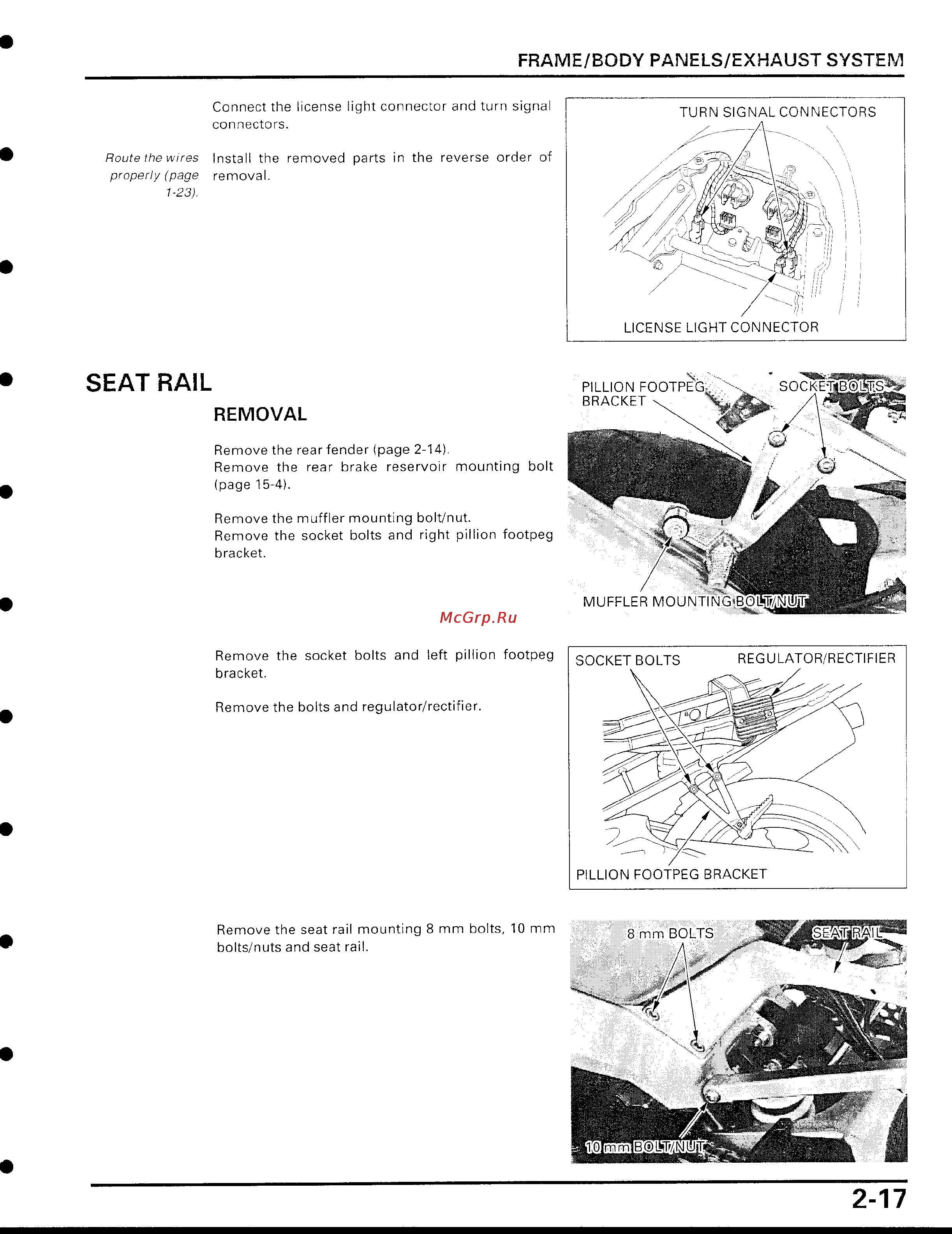

Honda CBR929RR [61/488] Page 17
![Honda CBR929RR [61/488] Page 17](/views2/1121098/page61/bg3d.png)
•
•
•
•
•
•
Connect the license light connector and turn signal
connectors
.
Route the wires
Install the removed parts in the reverse order of
properly (page
removal
.
1-23)
.
REMOVAL
Remove the rear fender (page 2-14)
.
Remove the rear brake reservoir mounting
bolt
(page 15-4)
.
Remove the muffler mounting bolt/nut
.
Remove the socket bolts and right pillion footpeg
bracket
.
Remove the socket bolts and left pillion footpeg
bracket
.
Remove the bolts and regulator/rectifier
.
Remove the seat rail mounting 8 mm bolts, 10 mm
bolts/nuts and seat rail
.
FRAME/BODY PANELS/EXHAUST SYSTEM
TURN SIGNAL CONNECTORS
LICENSE LIGHT CONNECTOR
PILLION FOOTPEG
.
BRACKET
BOL
$,
T1
NUT
8 mm BOLTS
n
MUFFLER MOUNTING BOL
F
/N
SOCKET BOLTS
7
PILLION FOOTPEG BRACKET
REGULATOR/RECTIFIER
T-
F
SFAIT R
s
'wS
