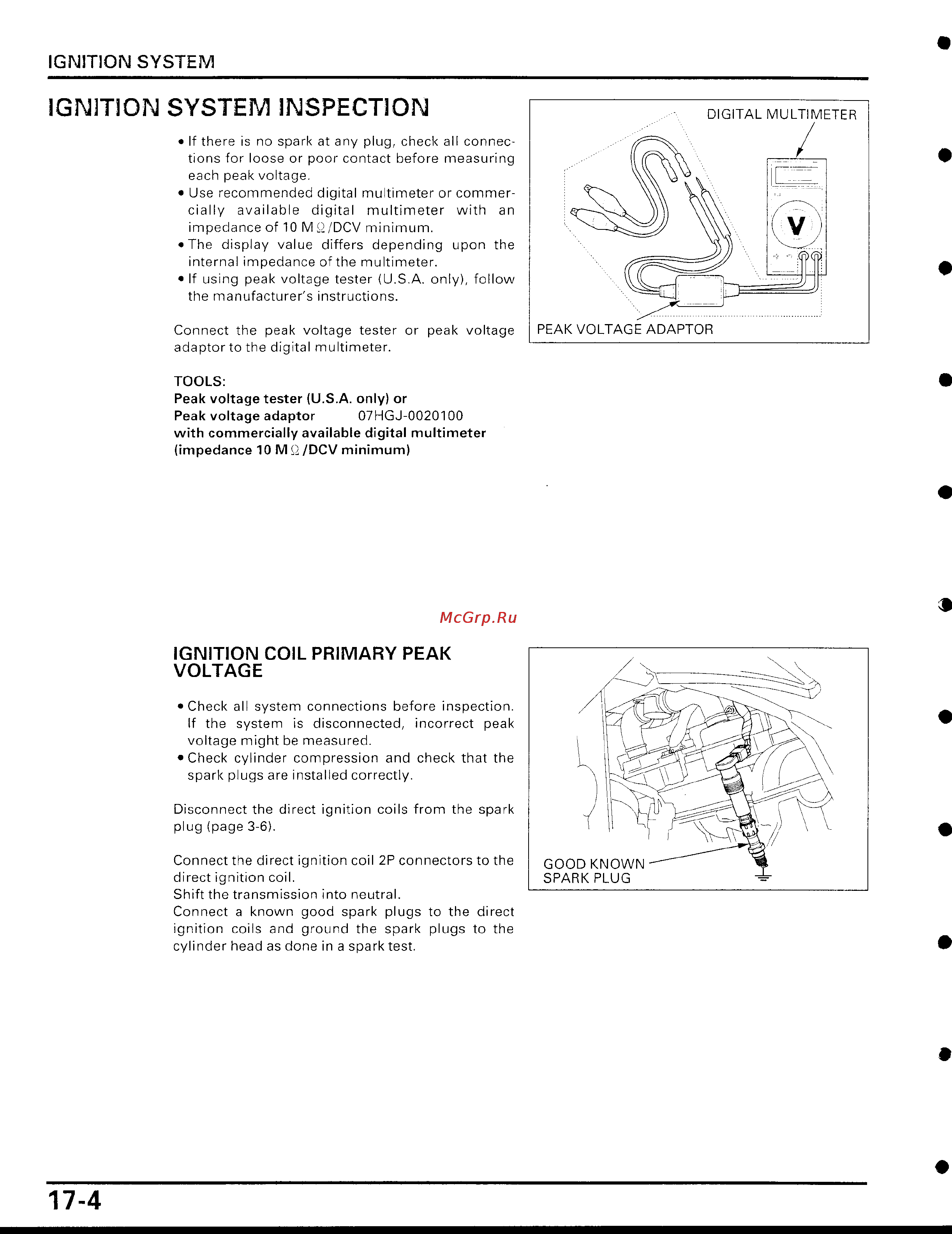

IGNITION SYSTEM
IGNITION SYSTEM INSPECTION
•
If there is no spark at any plug, check all connec-
tions for loose or poor contact before measuring
each peak voltage
.
•
~
Use recommended digital multimeter or commer-
cially available digital multimeter with an
impedance of 10 M Q? /DCV minimum
.
*The display value differs depending upon the
internal impedance of the multimeter
.
•
~
If using peak voltage tester (U
.S
.A
.
only), follow
the manufacturer's instructions
.
Connect the peak voltage tester or peak voltage
adaptor to the digital multimeter
.
TOOLS
:
Peak voltage tester
(U
.S
.A
.
only) or
Peak voltage adaptor
~
07HGJ-0020100
with commercially available digital multimeter
(impedance 10 M U /DCV minimum)
IGNITION COIL PRIMARY PEAK
VOLTAGE
•
~
Check all system connections before inspection
.
If the system is disconnected, incorrect peak
voltage might be measured
.
•
~
Check cylinder compression and check that the
spark plugs are installed correctly
.
Disconnect the direct ignition coils from the spark
plug (page
3-6)
.
Connect the direct ignition coil 2P connectors to the
direct ignition coil
.
Shift the transmission into neutral
.
Connect a known good spark plugs to the direct
ignition coils and ground the spark plugs to the
cylinder head as done in a spark test
.
DIGITAL MULTIMETER
J
^
0-
J
PEAK VOLTAGE ADAPTOR
i
GOOD KNOWN
SPARK PLUG
1
