ENGINE 3-41

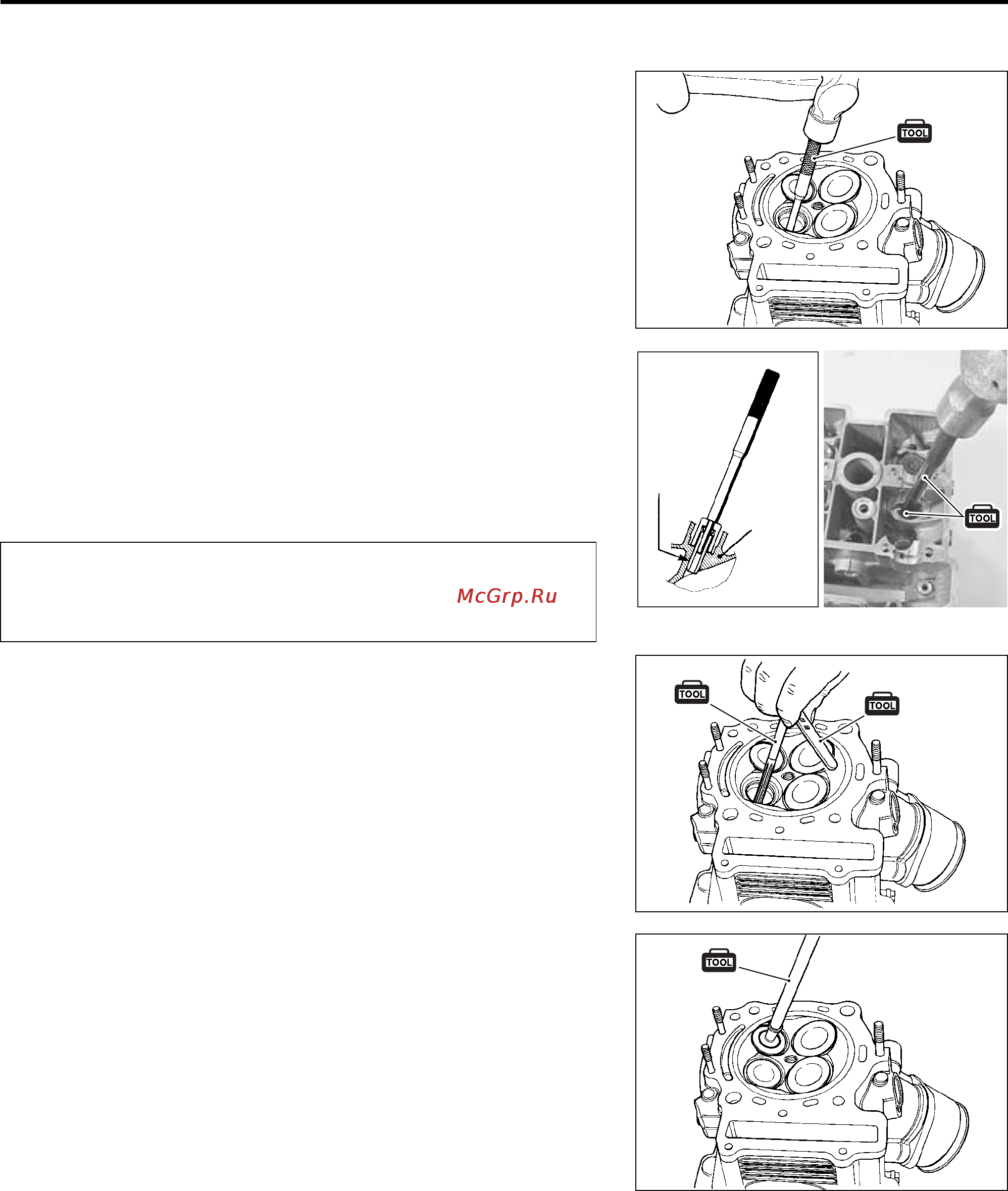

• Re-finish the valve guide holes in cylinder head with the
reamer and handle.
\ 09916-34580: Valve guide reamer
09916-34542: Reamer handle
• Oil the stem hole, too, of each valve guide and drive the guide
into the guide hole with the valve guide installer and attach-
ment.
\ 09916-44910: Valve guide remover/installer
09916-53340: Attachment
• After fitting the valve guides, re-finish their guiding bores with
the reamer. Be sure to clean and oil the guides after reaming.
\ 09916-34550: Valve guide reamer
09916-34542: Reamer handle
NOTE:
Insert the reamer from the combustion chamber and always turn
the reamer handle clockwise.
VALVE SEAT WIDTH
• Coat the valve seat uniformly with Prussian blue. Fit the valve
and tap the coated seat with the valve face in a rotating man-
ner, in order to obtain a clear impression of the seating con-
tact. In this operation, use the valve lapper to hold the valve
head.
Failure to oil the valve guide hole before driving the
new guide into place may result in a damaged guide or
head.
Valve
guide
Cylinder
head
