3-42 ENGINE

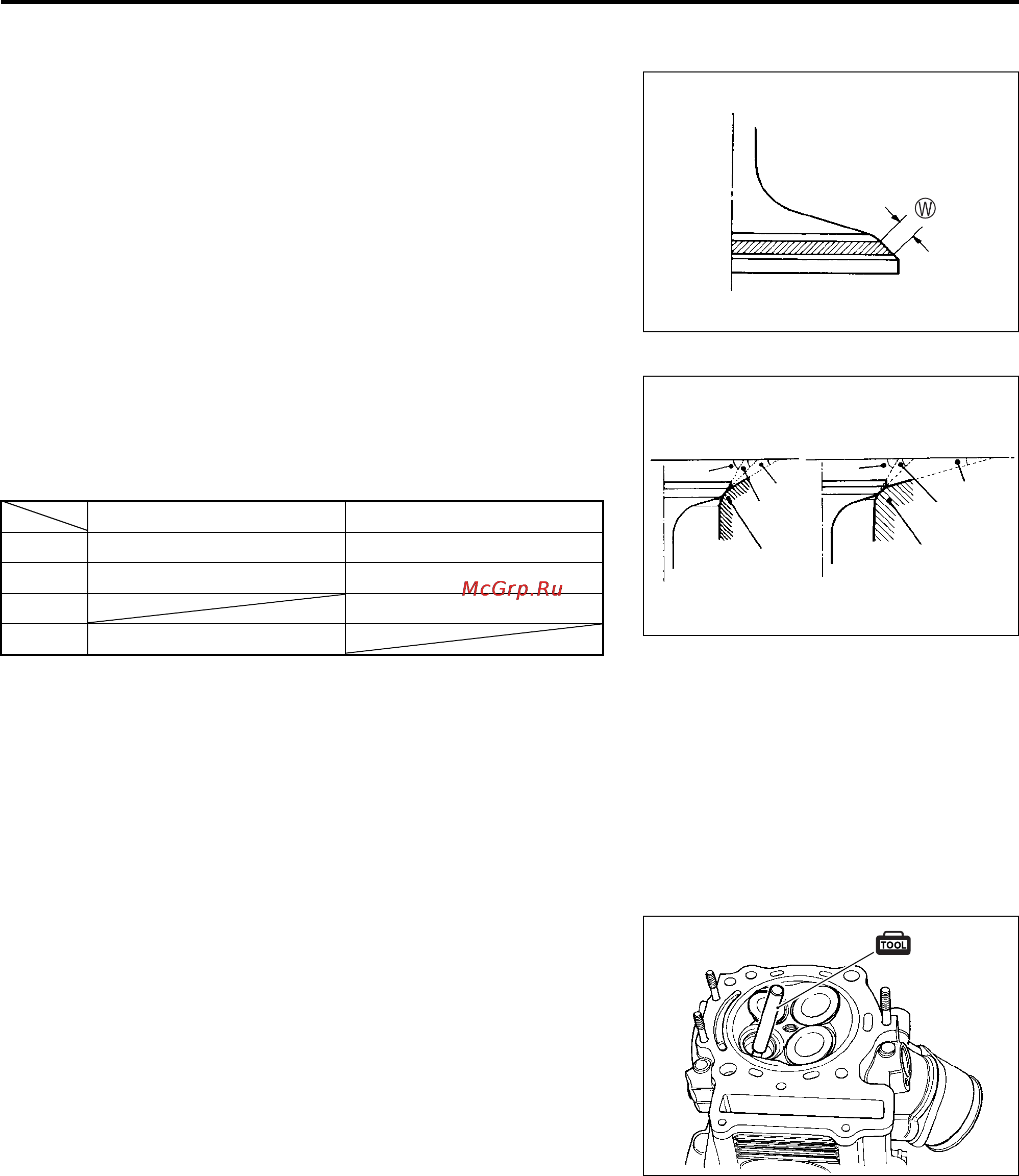

• The ring-like dye impression left on the valve face must be
continuous without any break. In addition, the width of the dye
ring, which is the visualized seat “width”, must be within the
following specification:
Valve seat width
8
Standard: 0.9 – 1.1 mm (0.035 – 0.043 in)
\ 09916-10911: Valve lapper set
If either requirement is not met, correct the seat by servicing is
as follows:
VALVE SEAT SERVICING
The valve seats for both intake and exhaust valves are
machined to four different angles. (The seat contact surface is
cut 45°.)
NOTE:
The valve seat contact area must be inspected after each cut.
\ 09916-21111: Valve seat cutter set
09916-24210: Valve seat cutter (N-615)
09916-24480: Solid pilot (N-140-5.5)
09916-24810: Valve seat cutter (N-626)
09916-27710: Valve seat cutter (N-211)
• Insert the solid pilot with a slight rotation. Seat the pilot
snugly. Install the 45° cutter, attachment and T-handle.
• Using the 45° cutter, descale and clean up the seat with one
or two turns.
• Inspect the seat by the previously described seat width mea-
surement procedure. If the seat is pitted or burned, additional
seat conditioning with the 45° cutter is required.
NOTE:
Cut only the minimum amount necessary from the seat to pre-
vent the possibility of the tappet shim replacement.
INTAKE EXHAUST
45° N-615 or N-626 N-615 or N-626
60° N-211 N-211
15° N-615
30° N-626
INTAKE
EXHAUST
Valve seat Valve seat
60˚
30˚
45˚
15˚
45˚
60˚
