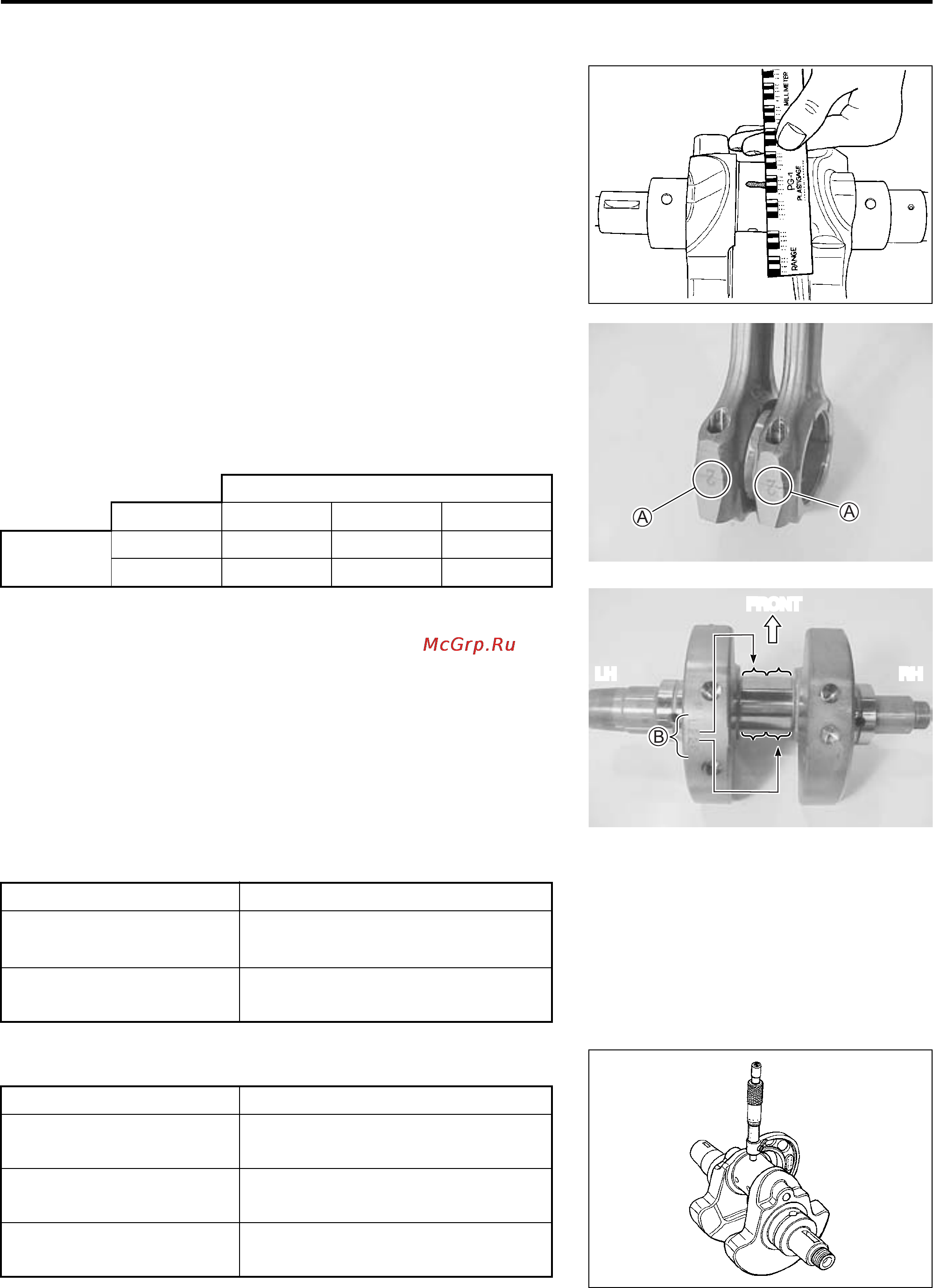

3-52 ENGINE

• Remove the caps and measure the width of compressed plas-

tigauge with envelope scale. This measurement should be

taken at the widest part.

 Conrod big end oil clearance

Service Limit: 0.080 mm (0.0031 in)

• If oil clearance exceeds the service limit, select the specified

bearings from the bearing selection table.

• Check the corresponding conrod I.D. code number

", “1” or

“2”.

• Check the corresponding crank pin O.D. code number

#, “1”,

“2” or “3” stamped on the left crank web.

Bearing selection table

 Conrod big end oil clearance

Standard: 0.040 – 0.064 mm (0.0016 – 0.0025 in)

Conrod big end I.D. specification

Crank pin O.D. specification

\ 09900-20202: Micrometer (25 – 50 mm)

Crank pin O.D.

Code 123

Conrod I.D.

code

1 Green Black Brown

2 Black Brown Yellow

FRONT

Code

" I.D. specification

48.000 – 48.008 mm

(1.8898

– 1.8900 in)

48.008 – 48.016 mm

(1.8900 – 1.8904 in)

Code

# O.D. specification

44.992 – 45.000 mm

(1.7713 – 1.7717 in)

44.984 – 44.992 mm

(1.7710 – 1.7713 in)

44.976 – 44.984 mm

(1.7707 – 1.7710 in)
