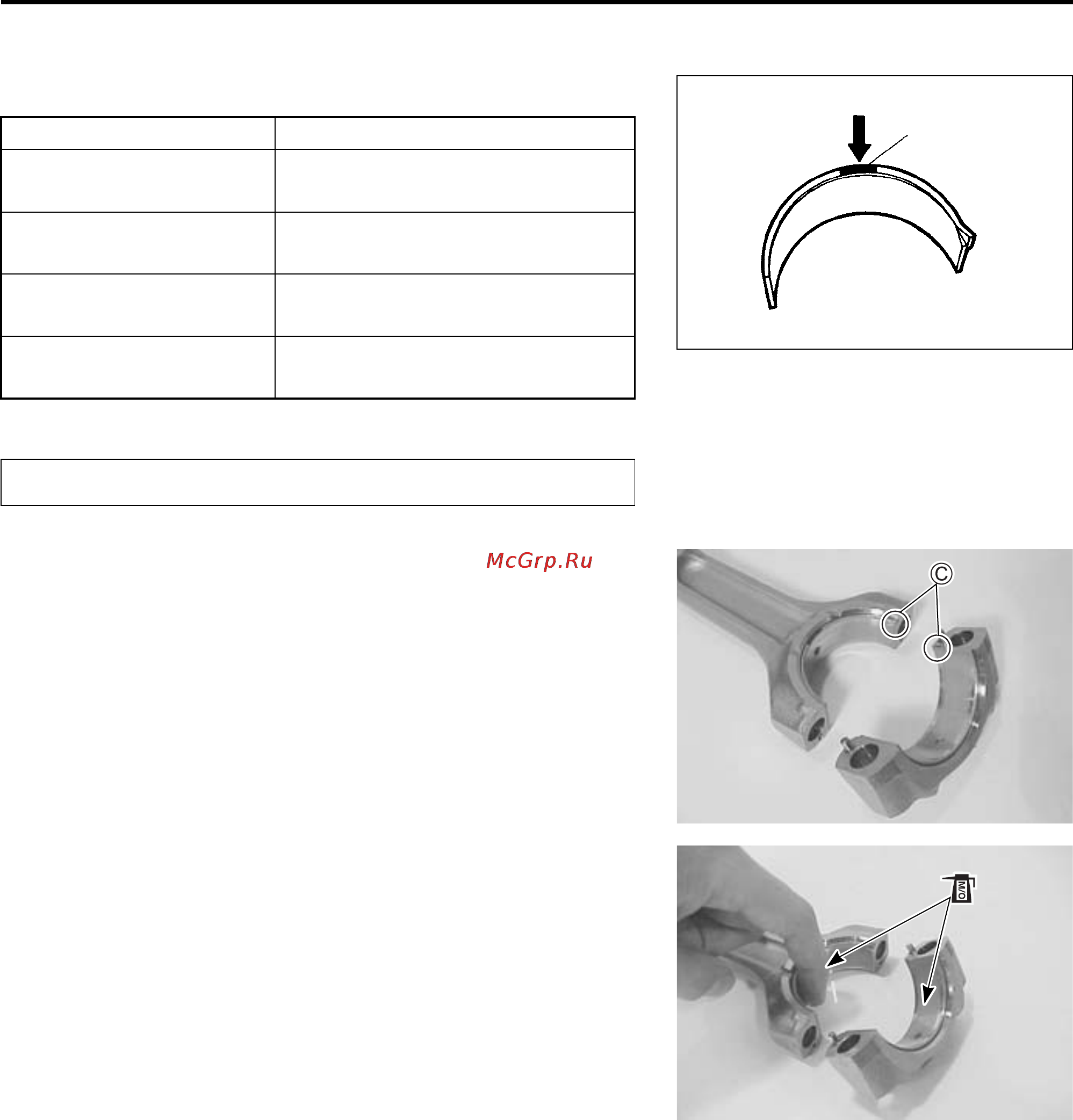

ENGINE 3-53
Bearing thickness
BEARING ASSEMBLY
• When fitting the bearings to the bearing cap and conrod, be
sure to fix the stopper part
$ first, and press in the other end.
• Apply molybdenum oil solution to the crank pin and bearing
surface.
P MOLYBDENUM OIL
Color (Part No.) Thickness
Green
(12164-02F11-0A0)
1.476 – 1.480 mm
(0.0581 – 0.0583 in)
Black
(12164-02F11-0B0)
1.480 – 1.484 mm
(0.0583 – 0.0584 in)
Brown
(12164-02F11-0C0)
1.484 – 1.488 mm
(0.0584 – 0.0586 in)
Yellow
(12164-02F11-0D0)
1.488 – 1.492 mm
(0.0586 – 0.0587 in)
Bearing must be replaced as a set.
Color code
