KE6900 / KE6940 User Manual
88
Channels
A Channel defines the Transmitter connections for a User Station. This allows
a User Station to connect to different Transmitters and stream sources from
different Transmitters, depending on how the Channel is defined. Once
Channels are created you can select them from the User Station’s Connection
Page (see Connecting, page 40).

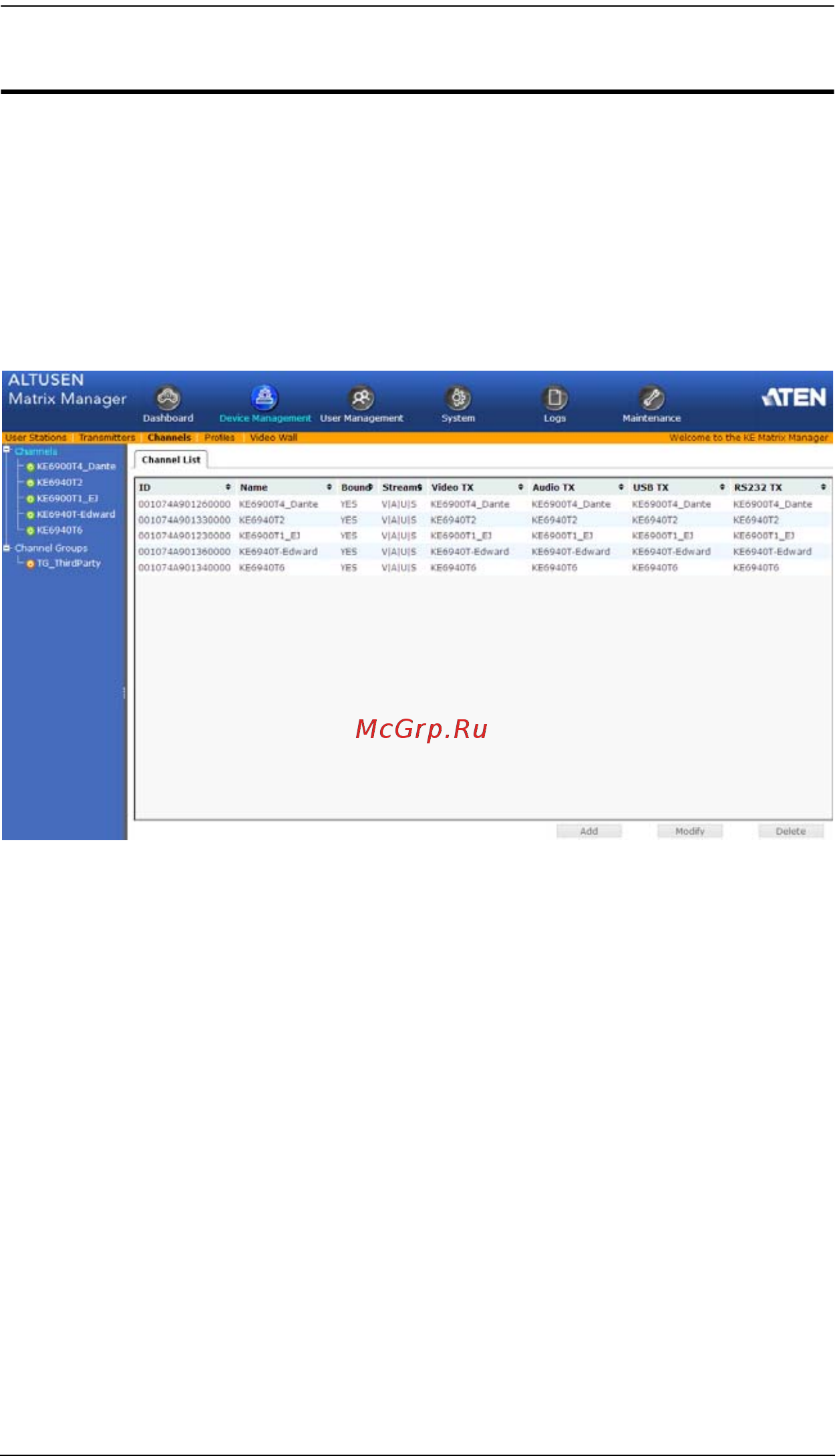

Click Channels from the menu bar and the following screen appears:
The main page provides an overview of each Channel. The Sidebar provides a
link with a more detailed view of each.
The meanings of the headings at the top of the page are straightforward.
ID refers to the identification number assigned by the system.
Name refers to the name entered on the Channel’s Info page.
Bound states whether the Channel’s connections are all bound to the same
Transmitter.
Streams refers to the source type that the Channel is configured to stream:
Video, Audio, USB, or Serial.
Video TX, Audio TX, USB TX, RS232 TX lists the Transmitter’s name for
each source stream.
Click Modify to change the selected Channel’s settings.
Click Add to create a new Channel.
Click Delete to remove the selected Channel.
