Chapter 1. Introduction

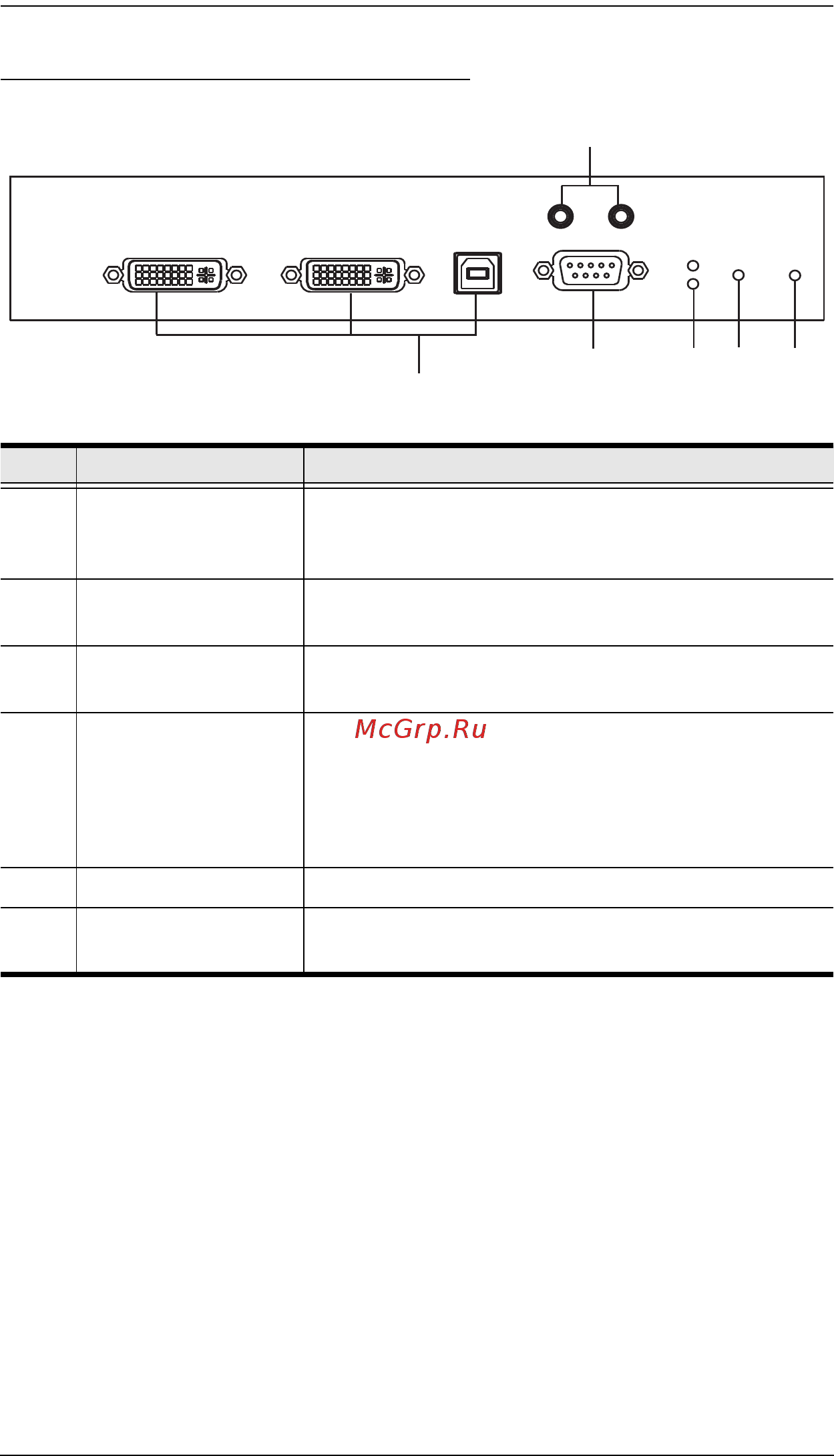

KE6940T (Transmitter) Front View

No. Component Description

1 KVM Ports The USB KVM cable supplied with the package that

links the Transmitter to the computer plugs into these

ports.

2 RS-232 Port This RS-232 serial port is for connecting to the

computer for serial control.

3 Remote / Local LED Lights green to indicate which side of the installation

(Local or Remote) has KVM control of the computer.

4 LAN LED Lights to indicate the network status:

 Lights green when connected to the LAN.

 Off when not connected to the LAN.

 Blinks green when the Ethernet connection is active.

5 Power LED Lights blue to indicate the unit is turned on.

6 Audio Ports These mini stereo ports are for the speakers (green)

and microphone (pink).

4 5
