105
Chapter 8
User Management
Overview
User Management has two menu bar items used to create Accounts and

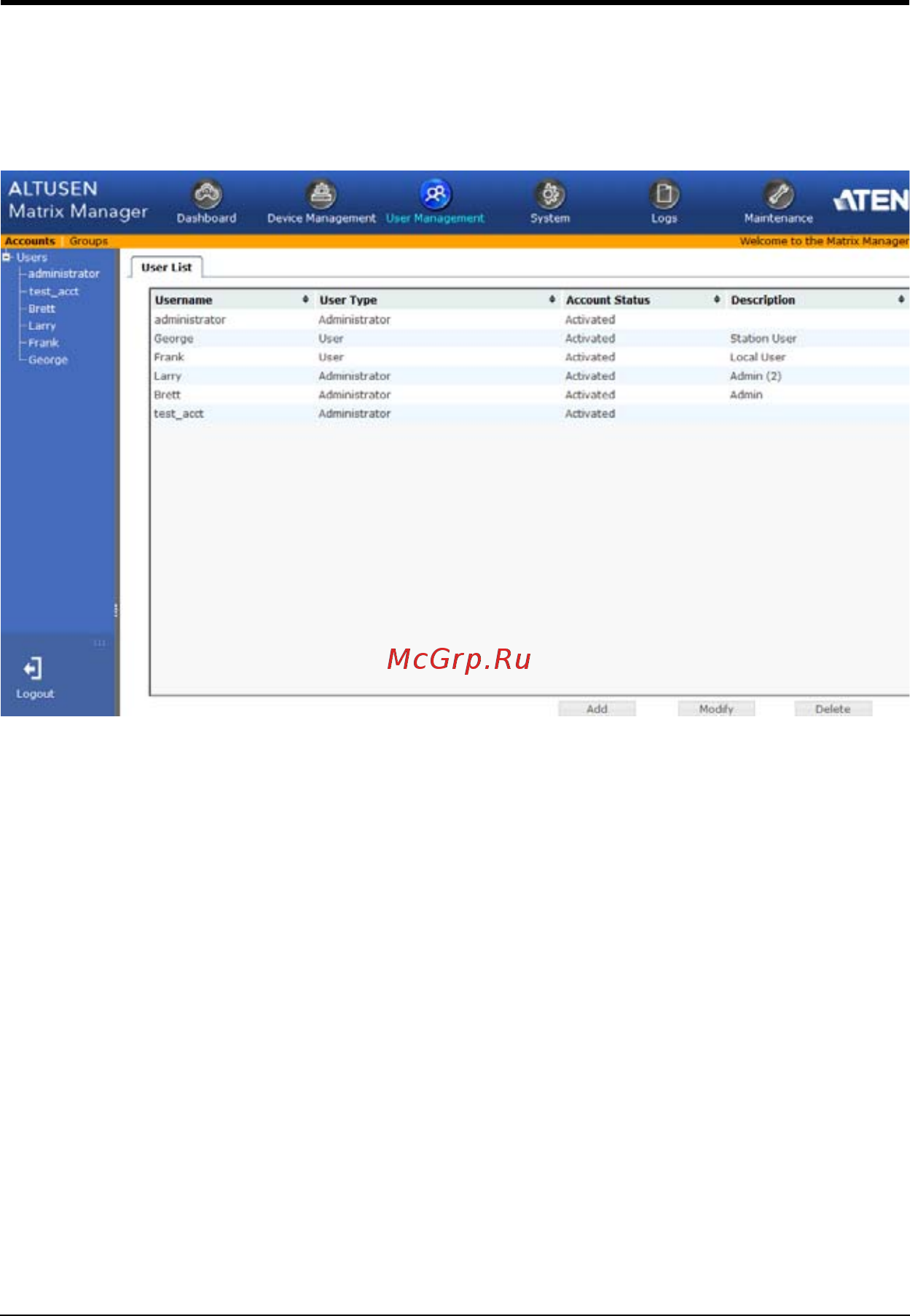

Groups. The User Management tab opens on the Accounts page, as shown
here:
The page is organized into two main areas: the Sidebar at the left, and the large
main panel at the right.
Users and groups appear in the panel at the left of the page. The large
panel at the right provides more detailed information at-a-glance for each.
There are menu bar entries for Accounts (Users) and Groups.
Depending on the menu item selected, either Users or Groups are listed
in the Sidebar.
The sort order of the information displayed can be changed by clicking the
main panel column headings.
The buttons below the main panel are used to manage users and groups, as
shown in the sections that follow.
