Aten KE6900 [207/222] Use the screws in step 2 to install the right and left mounting brackets

Appendix

193

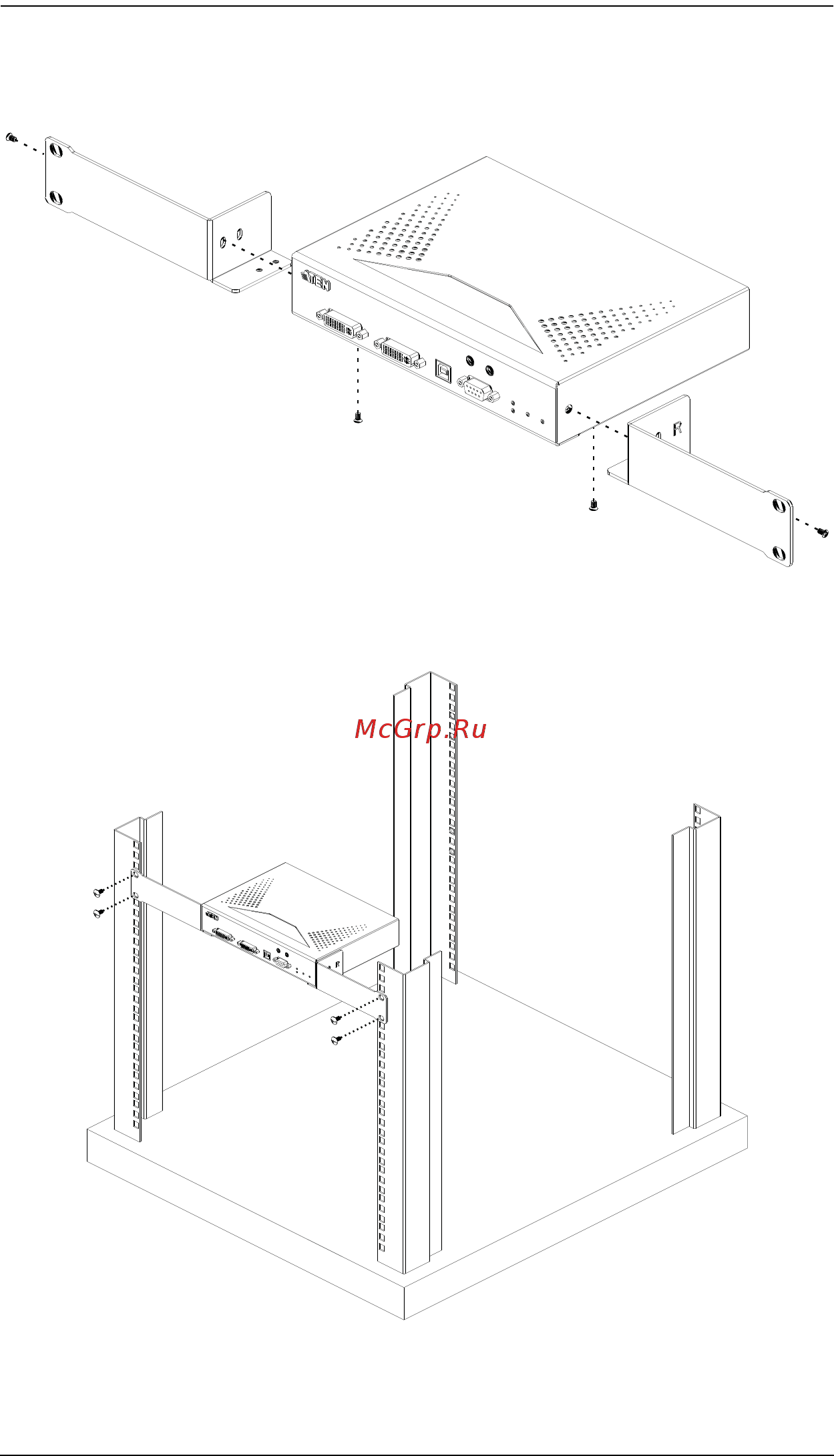

3. Use the screws in step 2 to install the right and left mounting brackets.

4. Screw the mounting brackets to the rack.
