KE6900 / KE6940 User Manual
40
Connecting
If the User Station is set to Extender mode, the video screen of the remote
computer will appear automatically when you exit the OSD (press Esc to exit).

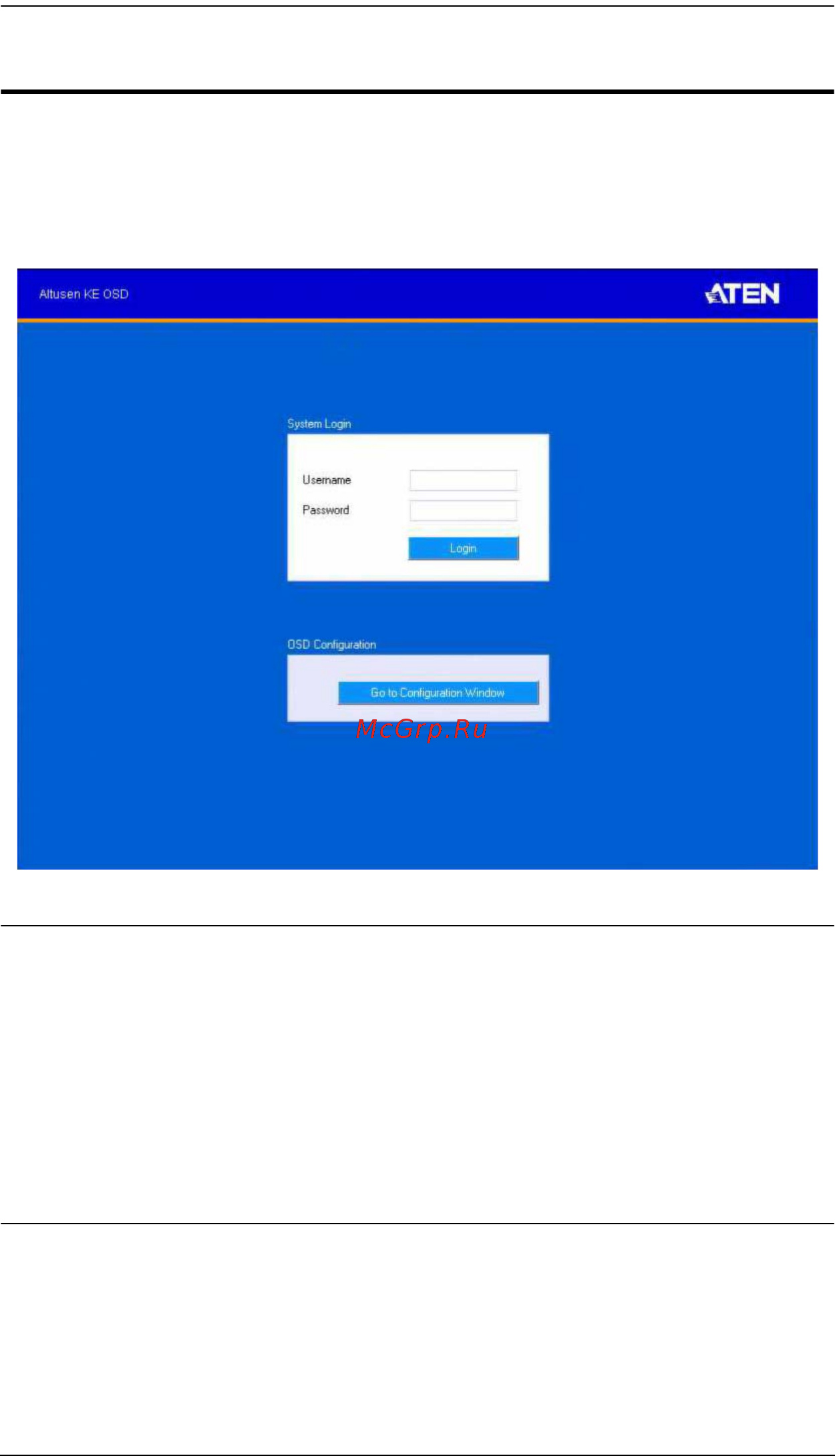

In Matrix mode you will see the System Login screen, which provides access
to the Connection Page by entering a username and password:
Note: 1. The administrator account can be used to log in for the first time.
Username: administrator | Password: password. For security
purposes, we recommend you change this to something unique (see
User Management, page 105).
2. If the User Station does not require a login, click Login to system (see
Login Required, page 74).
3. For information about Extender and Desktop/Matrix modes see
Mode, page 31.
After you login the Connection Page appears, as shown on the next page.
