Chapter 11. Maintenance
145

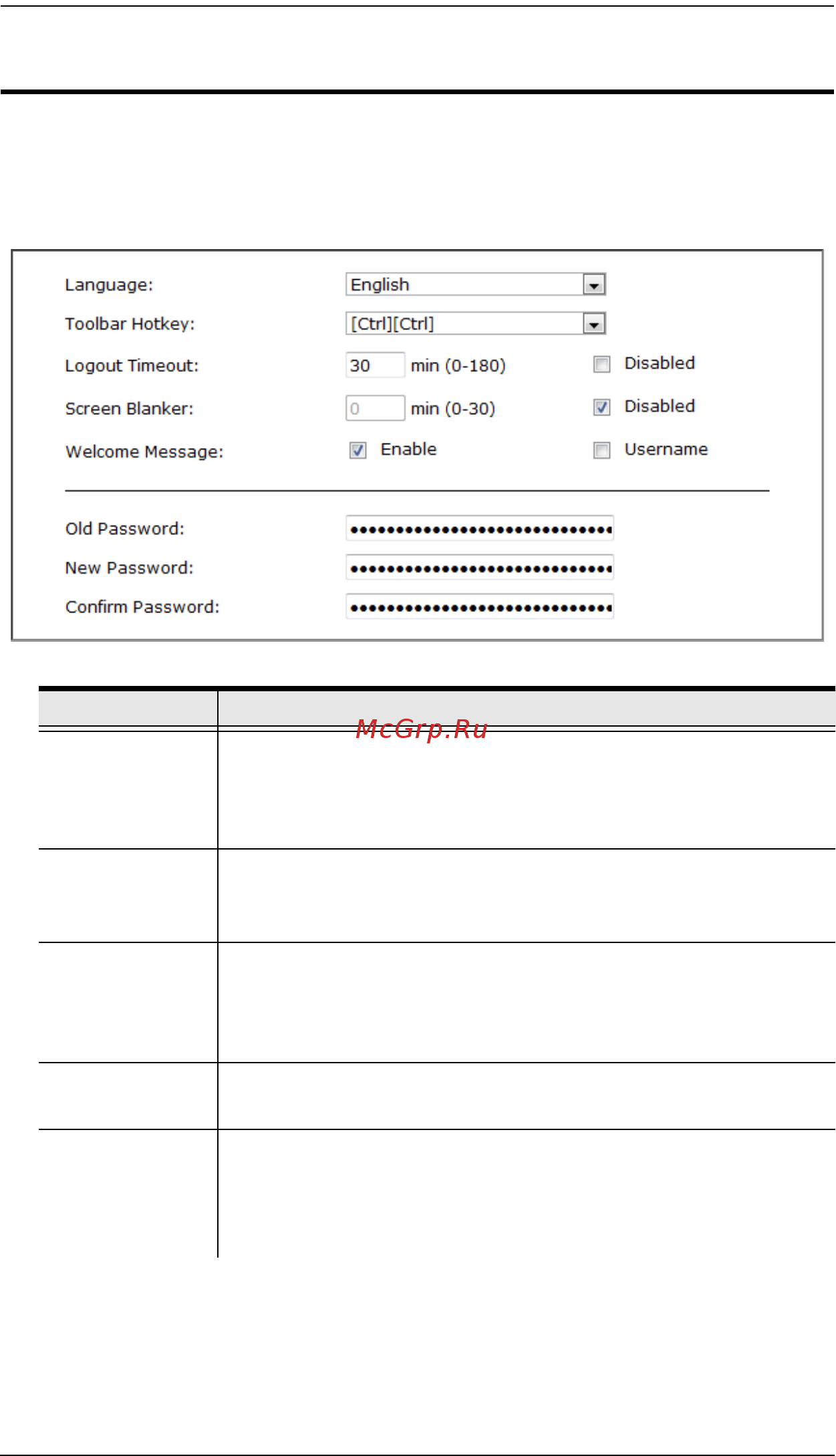

Preferences
Users can set individual preferences for their browser sessions on the
Preferences page. The Preferences page allows you to select options for the
user that is currently logged in.
Item Description
Language Click the drop-down menu to select the language you want to
use during sessions for this user. Choices are: English, Chinese
(Simplified), Chinese (Traditional), Japanese, Korean, Dutch,
French, Spanish, Portuguese, and Russian.
Toolbar Hotkey Select the hotkey combination to call the Tool Bar function for
this user. The Tool Bar is used when accessing the computer
from the Transmitter or Receiver side.
Logout Timeout If there is no user input for the amount of time set with this
function, the user is automatically logged out. A login is
necessary before the Matrix Manager can be accessed again.
The default is 30 minutes.
Screen Blanker Set how many minutes the KE6900 / KE6940 waits when a
session is idle before turning off the display.
Welcome Page If you want the Welcome Message to appear on screen when
the user logs in, select Enable.
If you want the user's Screen Name to appear with the
Welcome Message, check the Username check box.
