Chapter 9. System
121

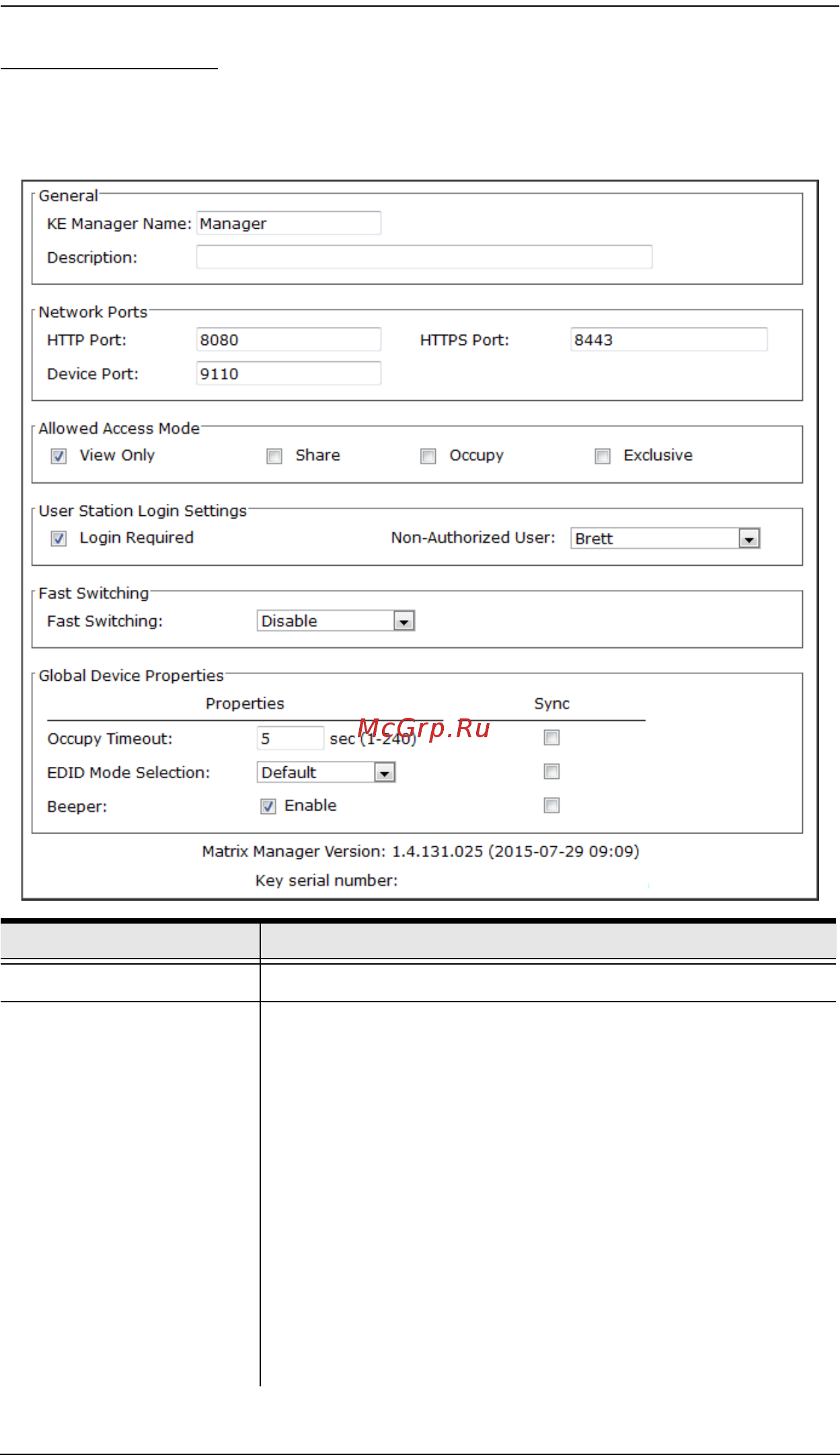

Global Settings
The Global Settings page lets an administrator change the default settings used
for the Matrix Manager:
Item Description
General Fill in a Name and Description for the Matrix Manager.
Network Ports Use this setting to specify the service ports used to access
the Matrix Manager:
Device Port: This is the port number to configure on the
Transmitter and User Station to access the Matrix Man-
ager (see Manager Address, page 36 and Manager
Address, page 32). The default is 9110.
HTTP Port: This is the port number to use for a browser
login. The default is 8080.
HTTPS Port: This is the port number to use for a secure
browser login. The default is 8443.
Example: To access the Matrix Manager on a computer
with an IP address of 192.168.0.100, using a secure
browser login (https), enter: https://192.168.0.100:8443
