KE6900 / KE6940 User Manual
94
Profiles
Profiles are created for Channels to allow User Station access to the
connection. Create a Profile for a Channel and assign access for each User
Station.

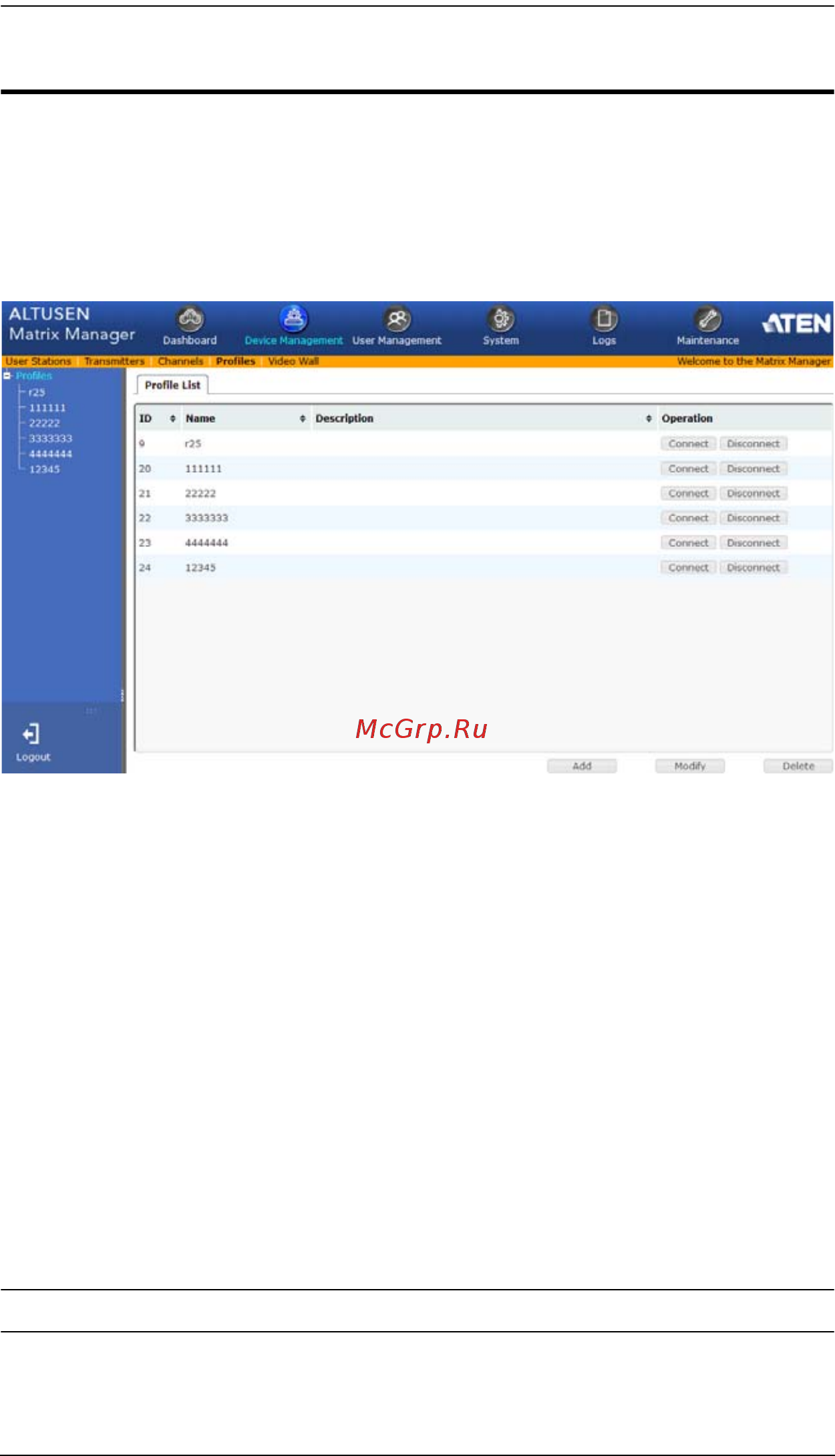

Click Profiles from the menu bar and the following screen appears:
The main page provides an overview of each Profile. The Sidebar provides a
link with a more detailed view of each Profile.
The meanings of the headings on the Profile List are straightforward.
ID refers to the identification number assigned by the system.
Name refers to the name entered on the Profile’s Settings page.*
Description refers to the description entered on the Profile’s Settings page.
Operation allows you to click Connect to send a Profile’s settings to the
Transmitters and User Stations, or Disconnect to remove a Profile’s
settings from the Transmitters and User Stations.
Click Add to create a new Profile.
Click Modify to change the selected Profile’s settings.
Click Delete to remove the selected Profile.
Note: Profiles and Video Walls can not share the same name.
