Chapter 6. Dashboard
67
Schedule

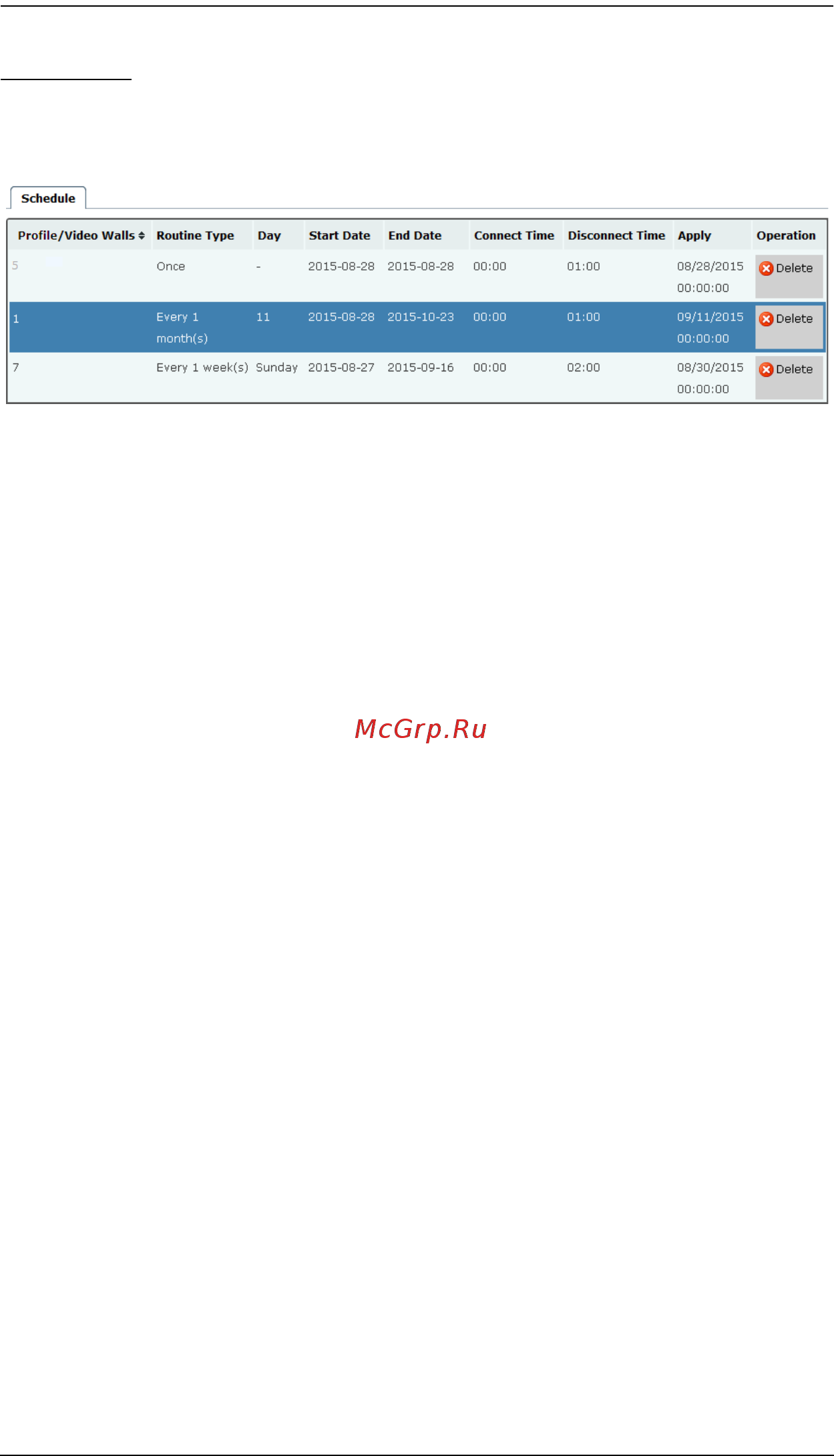

The Schedule page lets the administrator see all of the Profiles and Video Walls
that are scheduled to activate.
The meanings of the headings at the top of the page are straightforward.
Profiles/Video Walls refers to the ID number created for the Profile or
Video Wall schedule.
Routine Type refers to how often the Profile or Video Wall is scheduled to
repeat.
Day refers to either the day of a week (Monday to Sunday) or a day of the
month that the Profile or Video Wall is scheduled to run.
Start Date refers to the date that the Profiles or Video Wall is scheduled to
start.
End Date refers to the date that the Profile or Video Wall is scheduled to
end.
Connect Time refers to the time of day that the Profile or Video Wall is
scheduled to make its connection(s).
Disconnect Time refers to the time of day that the Profile or Video Wall is
scheduled to disconnect its connection(s).
Apply refers to the date and time when the Profile or Video Wall schedule
was created.
Operation provides a Delete button that can be used to permanently delete
the Profile or Video Wall schedule.
