Chapter 3. OSD Operation
39
User Preferences

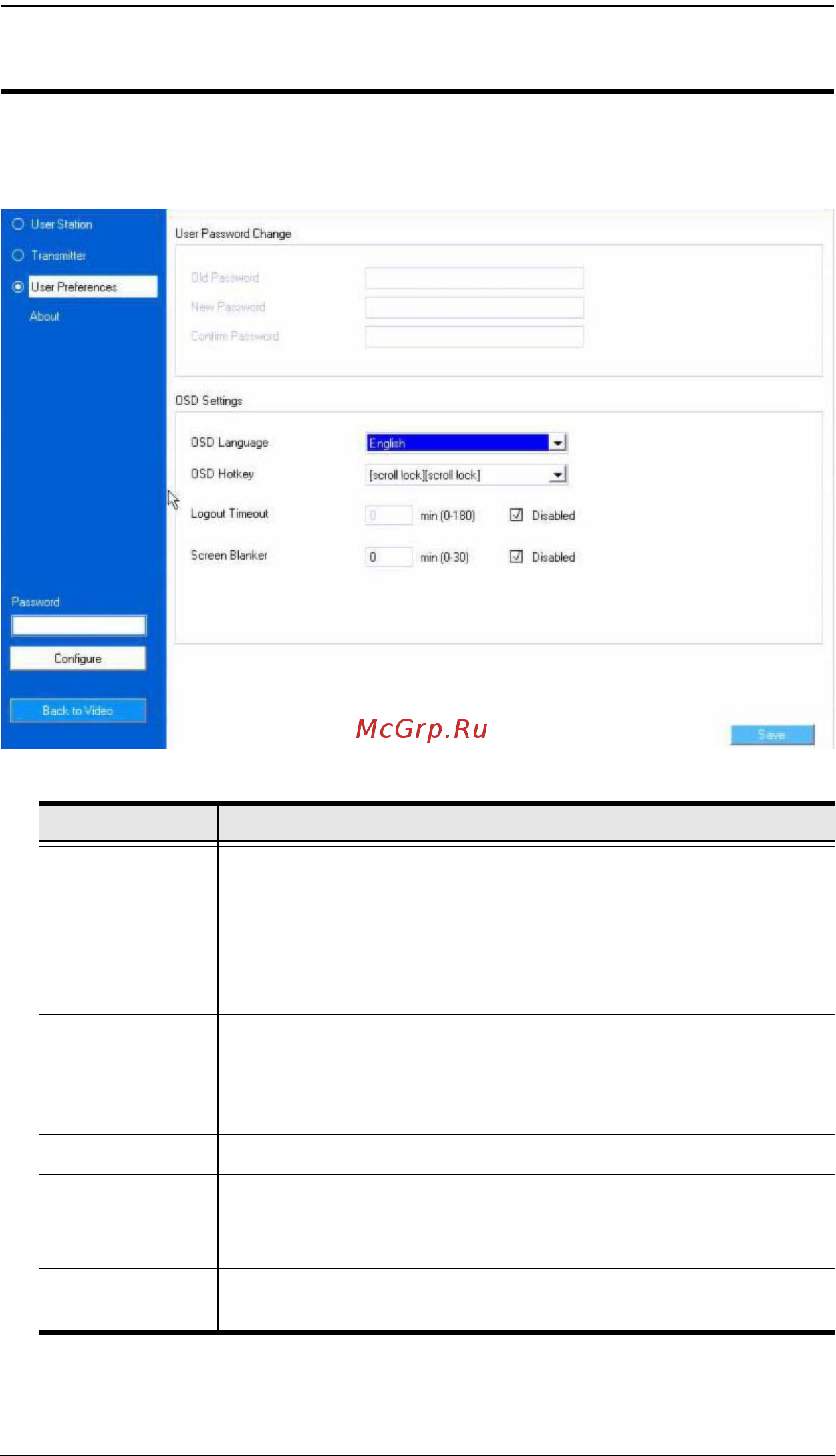

When you select the User Preferences radio button and click Configure to
login, the configuration screen appears:
When you have made your choices, Click Save.
Item Description
User Password
Change
This section allows you to change the OSD password:
1. Key in the old password in the Old password field.
2. Key in the new password in the New password field.
3. Key in the new password again in the Confirm password
field.
OSD Language Click the drop-down menu to select the language you want to
use for OSD sessions. Choices are: English, Chinese
(Simplified), Chinese (Traditional), Japanese, Korean, Dutch,
French, Spanish, Portuguese, and Russian.
OSD Hotkey Select the hotkey combination to invoke the OSD screen.
Logout Timeout If there is no user input for the amount of time set with this
function, the user is automatically logged out of the OSD. A
login is necessary before the OSD can be accessed again.
Screen Blanker Set how many minutes the OSD waits when a session is idle
before turning off the display.
