Aten KE6900 [204/222] Remove the bottom and side screw from each ke6900 unit

KE6900 / KE6940 User Manual

190

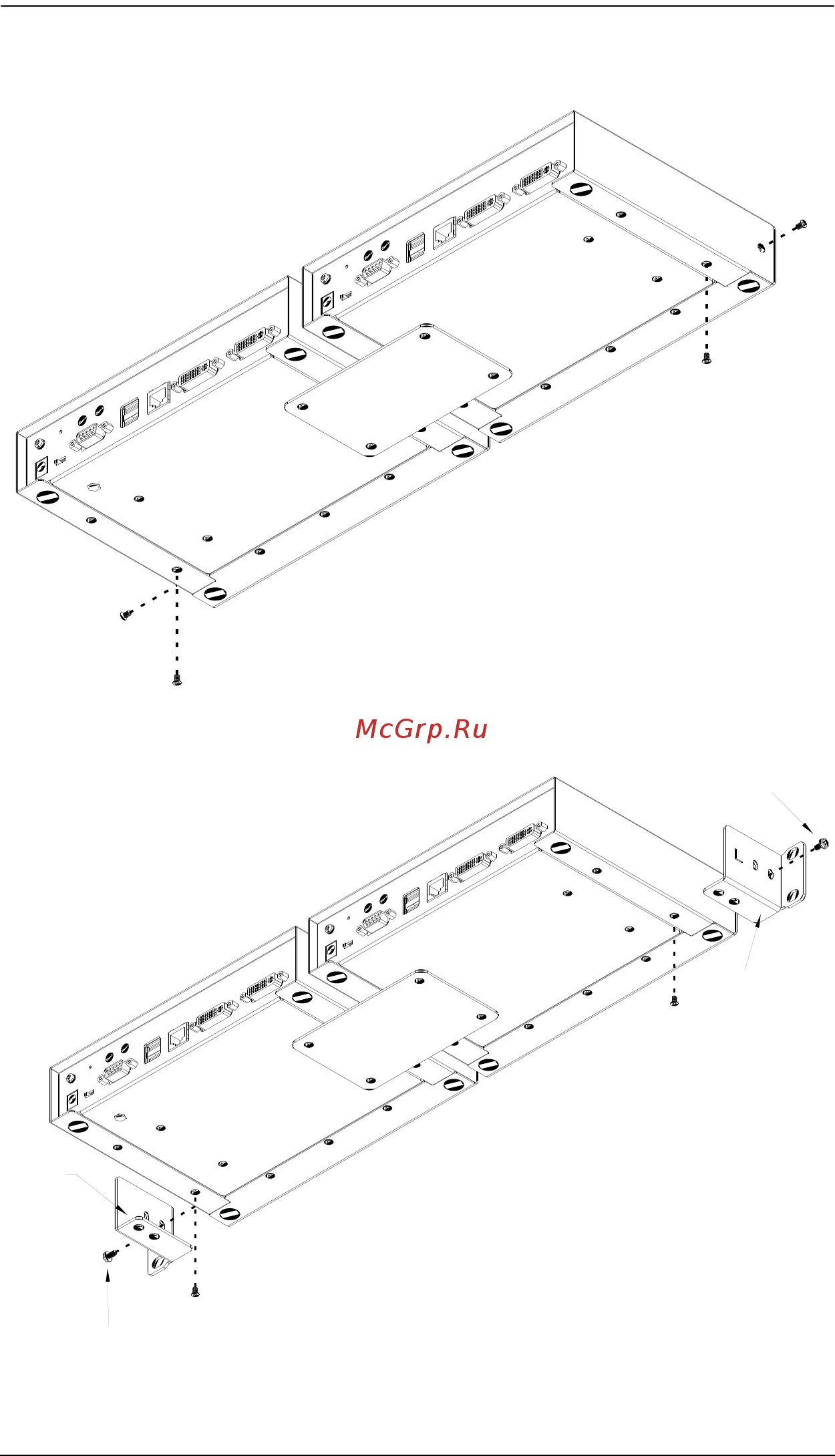

2. Remove the bottom and side screw from each KE6900 unit.

3. Use the screws in step 2 to install the left and right mounting brackets.

Remove Screws

Right

Mounting

Bracket

Phillips Head

Hex Screw

Phillips Head

Hex Screw

Left

Mounting

Bracket
