Aten KE6900 [79/222] Online transmitters

Chapter 6. Dashboard

Online Transmitters

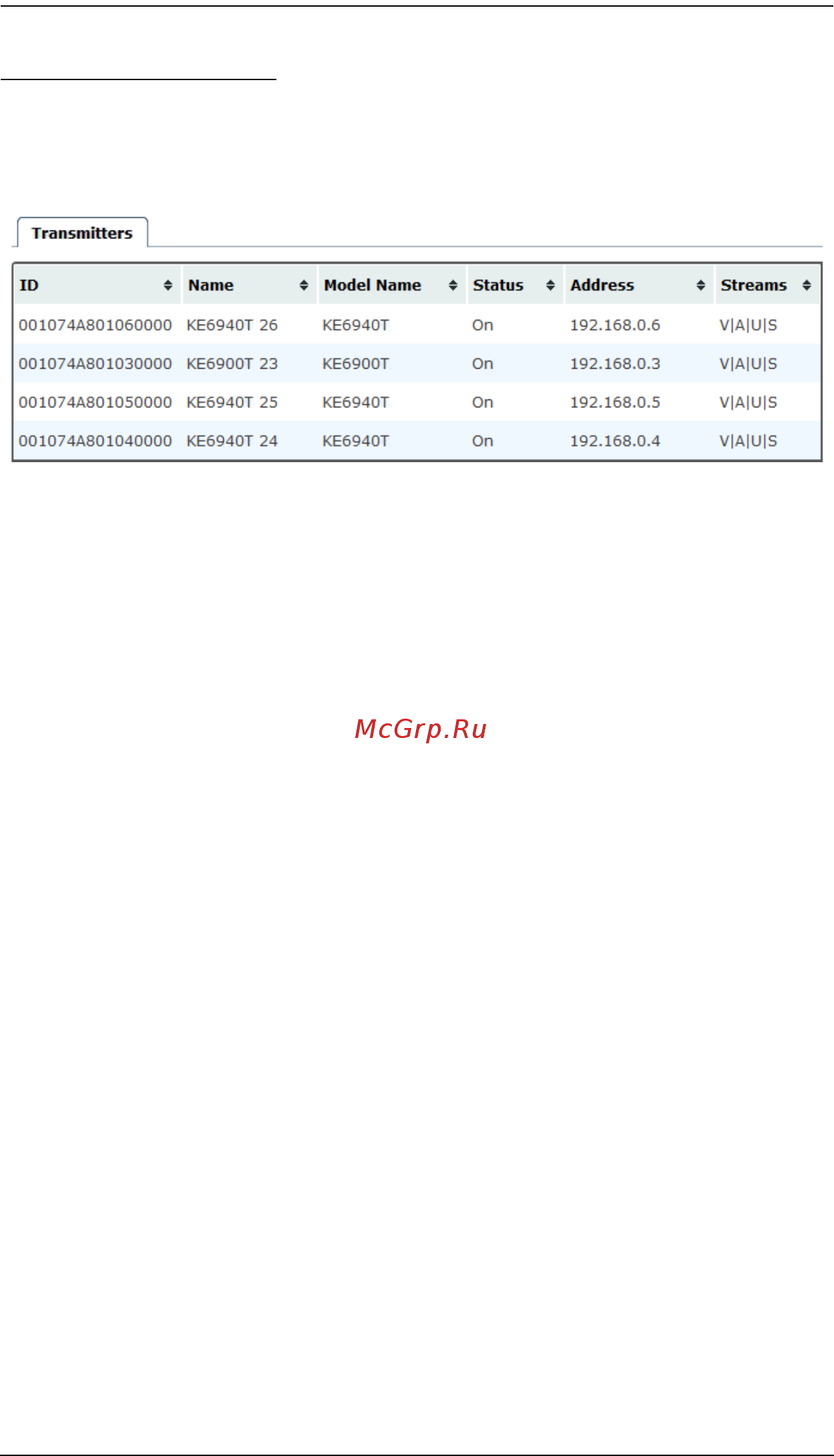

The Online Transmitters page lets the administrator see all of the Transmitters

that are currently available on the network and provides information about each

device.

The meanings of the headings at the top of the page are straightforward.

 ID refers to the identification number assigned by the system.

 Name refers to the name entered on the Transmitter’s System page.

 Model Name refers to the Transmitter model number.

 Status refers to the Transmitter’s online status.

 Address refers to the IP address of the Transmitter.

 Streams refers to the source type that the Transmitter is configured to

stream: Video, Audio, USB, or Serial.
