Aten KE6900 [134/222] System

120

Chapter 9

System

Overview

The System tab is used to configure the Matrix Manager’s system settings and

provides three menu bar items: Global Settings, ANMS and Redundancy.

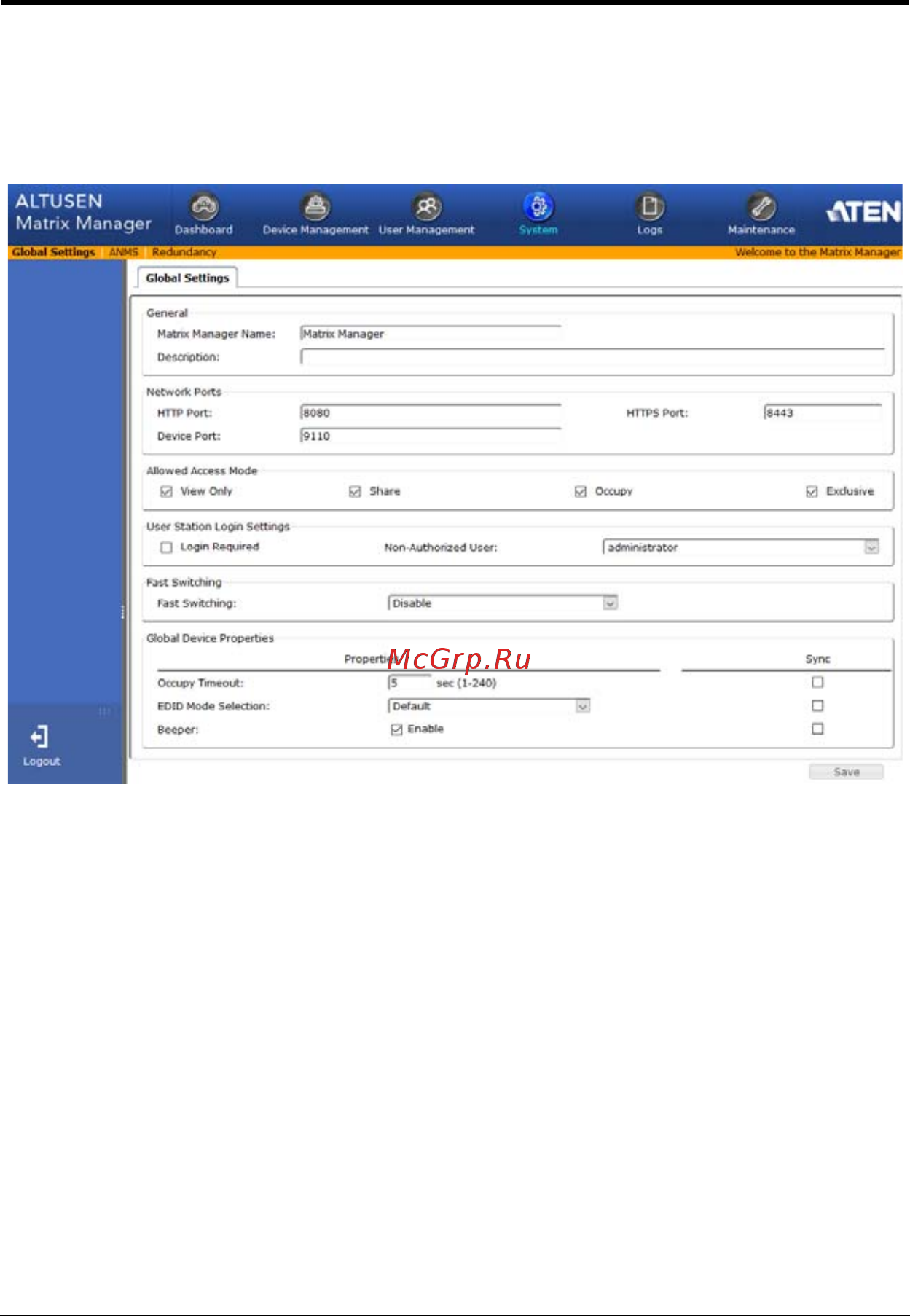

The System tab opens on the Global Settings page, as shown here:
