KE6900 / KE6940 User Manual

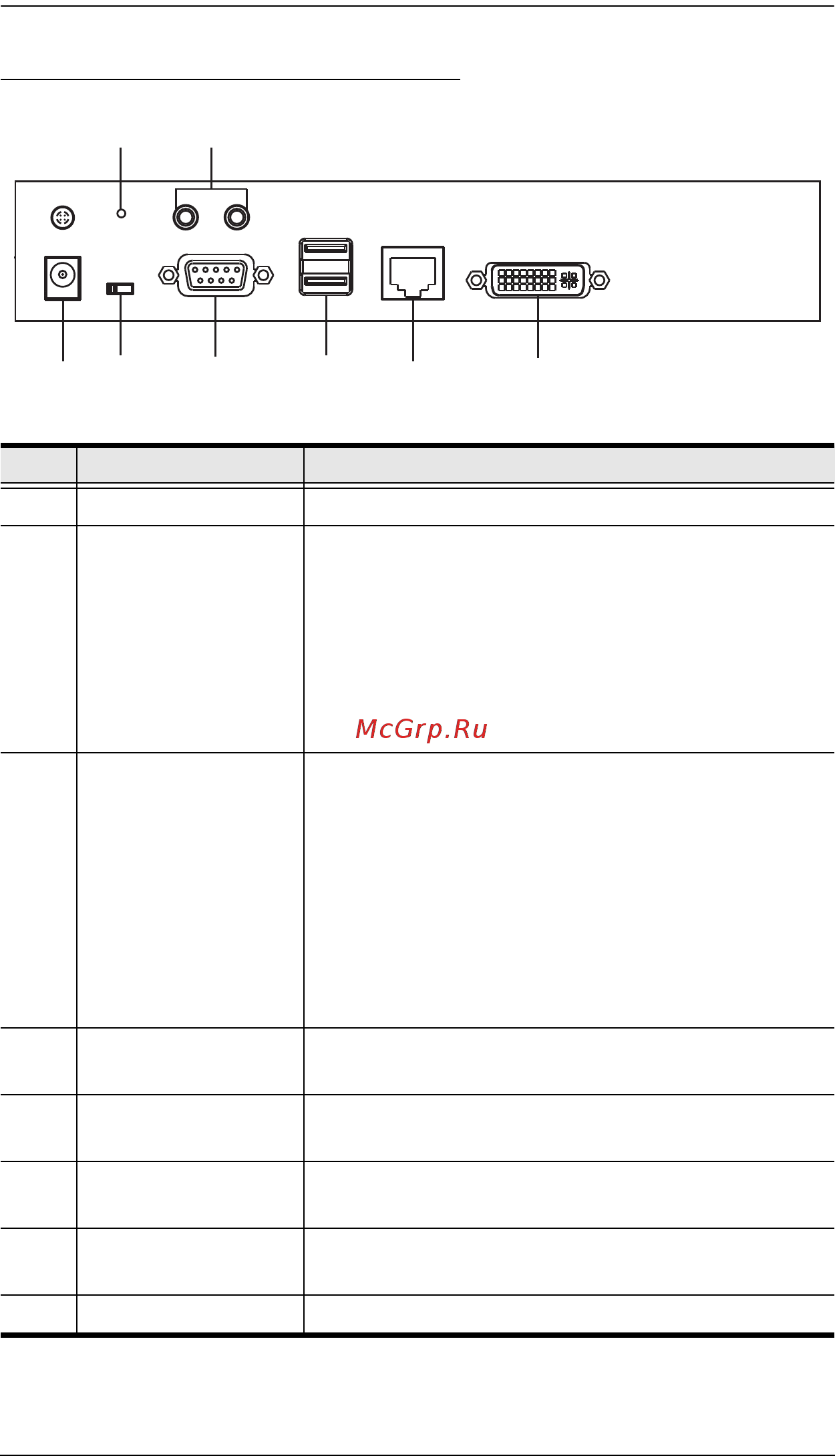

KE6900T (Transmitter) Rear View

No. Component Description

1 Power Jack The cable from the DC Power adapter connects here.

2 Function Switch Use this slide switch to set the unit’s mode to:

 Configure: The device is ready to configure.

 Local: Only the local Transmitter has KVM control

of the computer. The Receiver’s KVM access to the

computer is locked.

 Auto: Shared (simultaneous) KVM control of the

computer at the Transmitter and Receiver console.

3 Reset This switch must be pushed with a thin object, such as

the end of a paper clip.

 Press and release to reboot the device.

 Power off, hold reset then power on the device

while pressing reset to recover from a firmware

upgrade failure.

 Press and hold it in for more then three seconds

resets the unit back to its factory default

settings.

4 RS-232 Port This RS-232 serial port is for connecting to a serial

terminal.

5 Audio Ports These mini stereo ports are for the speakers (green)

and microphone (pink).

6 Console Ports The unit’s USB keyboard and USB mouse plug into

these ports.

7 LAN Port The cable that connects the unit to the LAN plugs in

here.

8 DVI-I Output The cable from the local DVI monitor plugs in here.
