Aten KE6900 [66/222] Upgrading trial version

KE6900 / KE6940 User Manual

Upgrading Trial Version

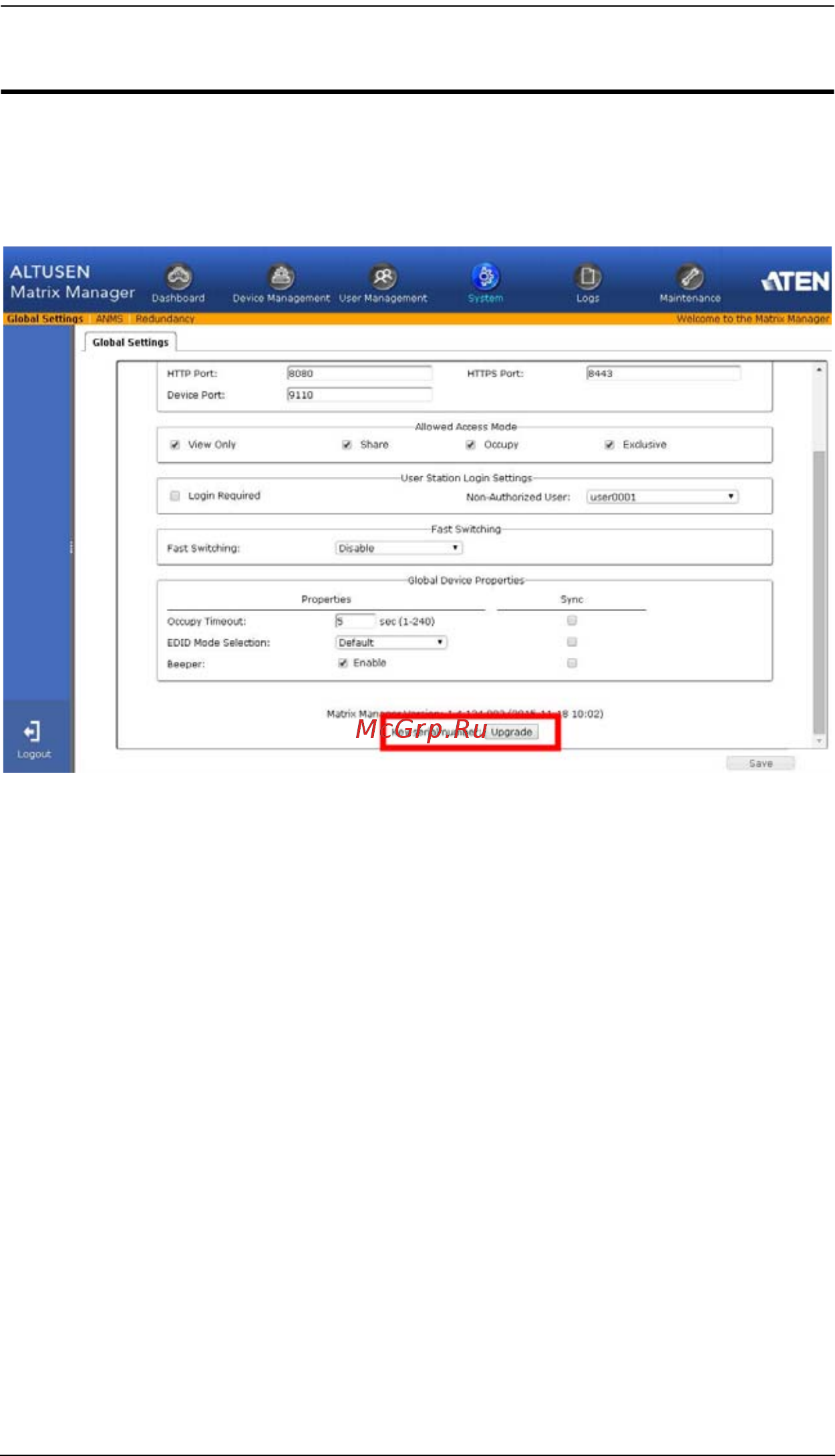

After you purchase a license to upgrade the Matrix Manager Lite version to the

full version of the Matrix Manger software, go to the System tab, and at the

bottom of the Global Settings page, click Upgrade:
