KE6900 / KE6940 User Manual
138

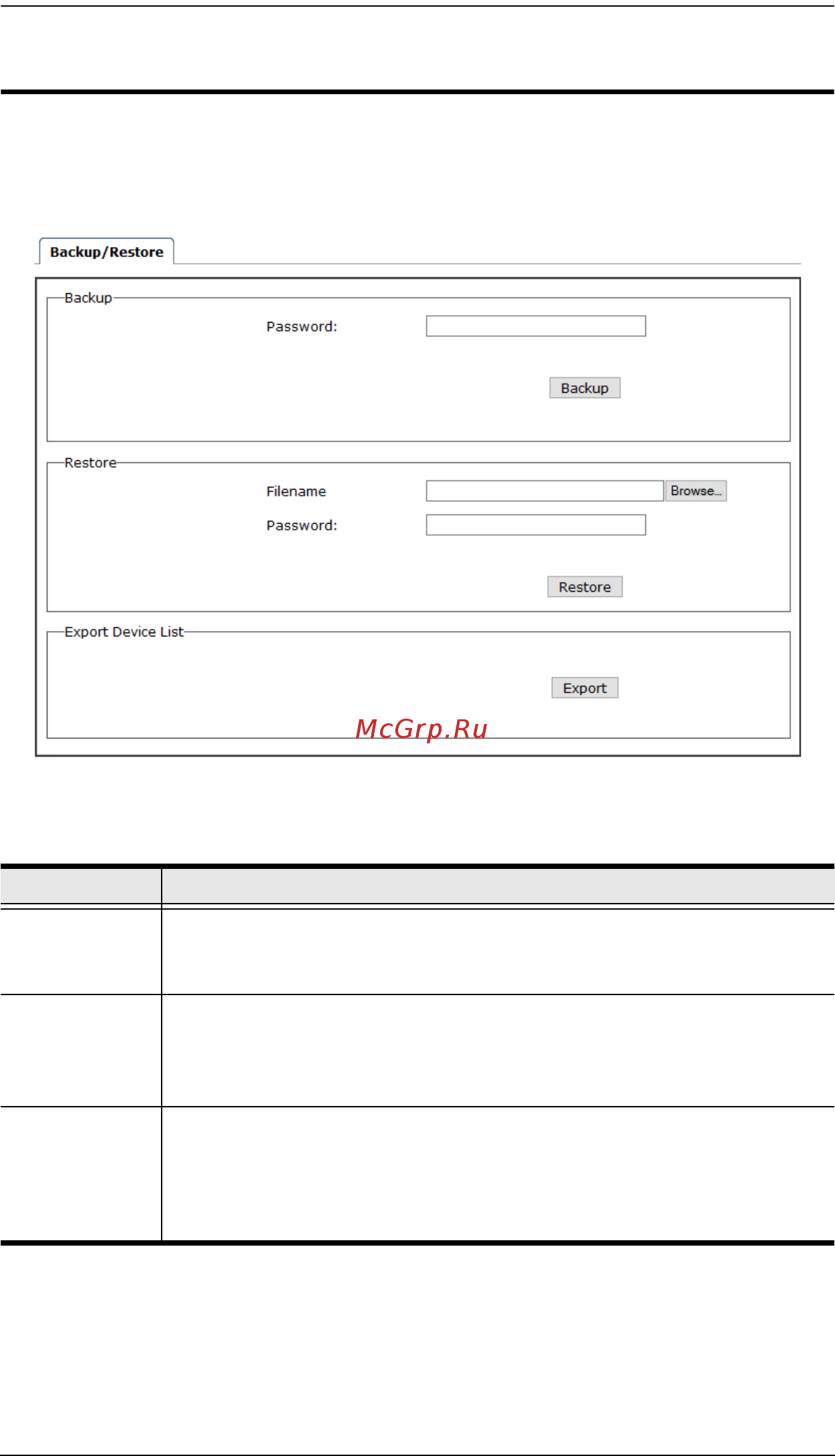

Backup / Restore
When you click the Maintenance tab Matrix Manager, the Backup/Restore
page is displayed. The page is divided into two main sections: Backup, and
Restore:
The operations to perform backup/restore procedures are described in the table
below and in the section that follows:
Procedure Operation
Backup Backs up the Matrix Manager configuration – including User Station,
Transmitter, Channel, and Profile configurations; user and group
accounts, user profiles, logs, and system settings.
Restore Deletes the current User Station, Transmitter, Channel, and Profile
configurations; user and group accounts, user profiles, logs, and
system settings.; then restores those settings to the values that exist
in the previously saved backup file.
Export Device
List
Clicking Export allows you to save a file with a complete list of the
devices added to the Matrix Manger. The file contains the ID, Name,
Description and IP Address of each Transmitter and User Station. An
Existing column also lists if the device is available: Yes, it exists and is
available, or No, it is off-line or has been removed.
