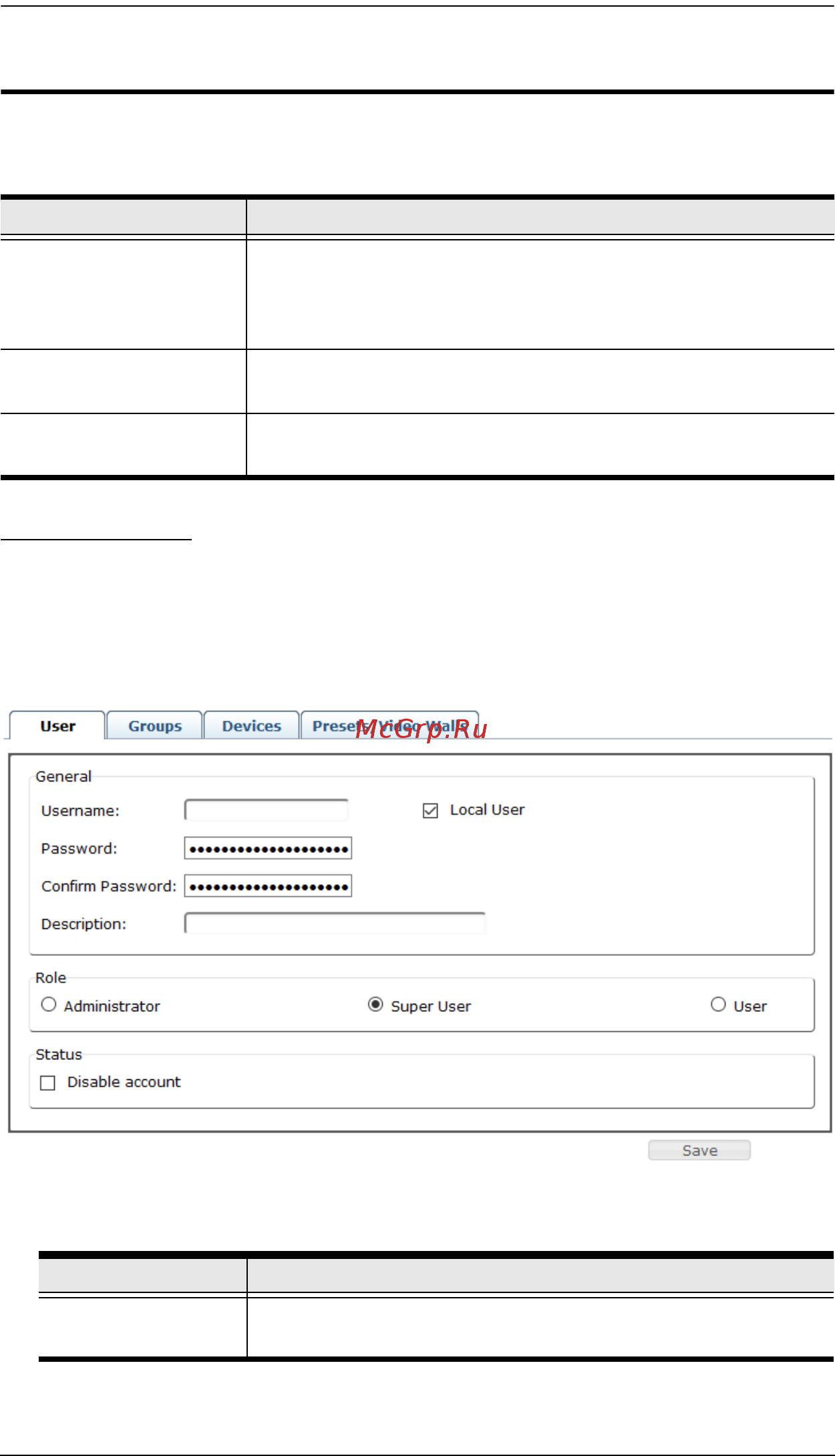

![Aten KE6900 [120/222] Adding users](/views2/1211143/page120/bg78.png)
KE6900 / KE6940 User Manual
106
Users
The Matrix Manager supports three types of user accounts, shown in the table
bellow:
Adding Users
To add a user, do the following:
1. Select Users in the Sidebar.
2. Click Add at the bottom of the main page. The User tab opens:
Enter the required information in the fields provided. A description of each
is given in the table below:
User Type Role
Administrator Access and management of the Matrix Manager, including
configuration and setting up of devices. Manage Users,
Groups, Channels, Profiles and Video Walls. Configure
personal working environments.
Super User Access User Station to connect Channels and Profiles they
have been given permission for.
User Access User Stations to connect to Channels they have
been given permission for.
Field Description
Username From 1 to16 characters are allowed depending on the
Account Policy settings.
