Chapter 7. Device Management
83

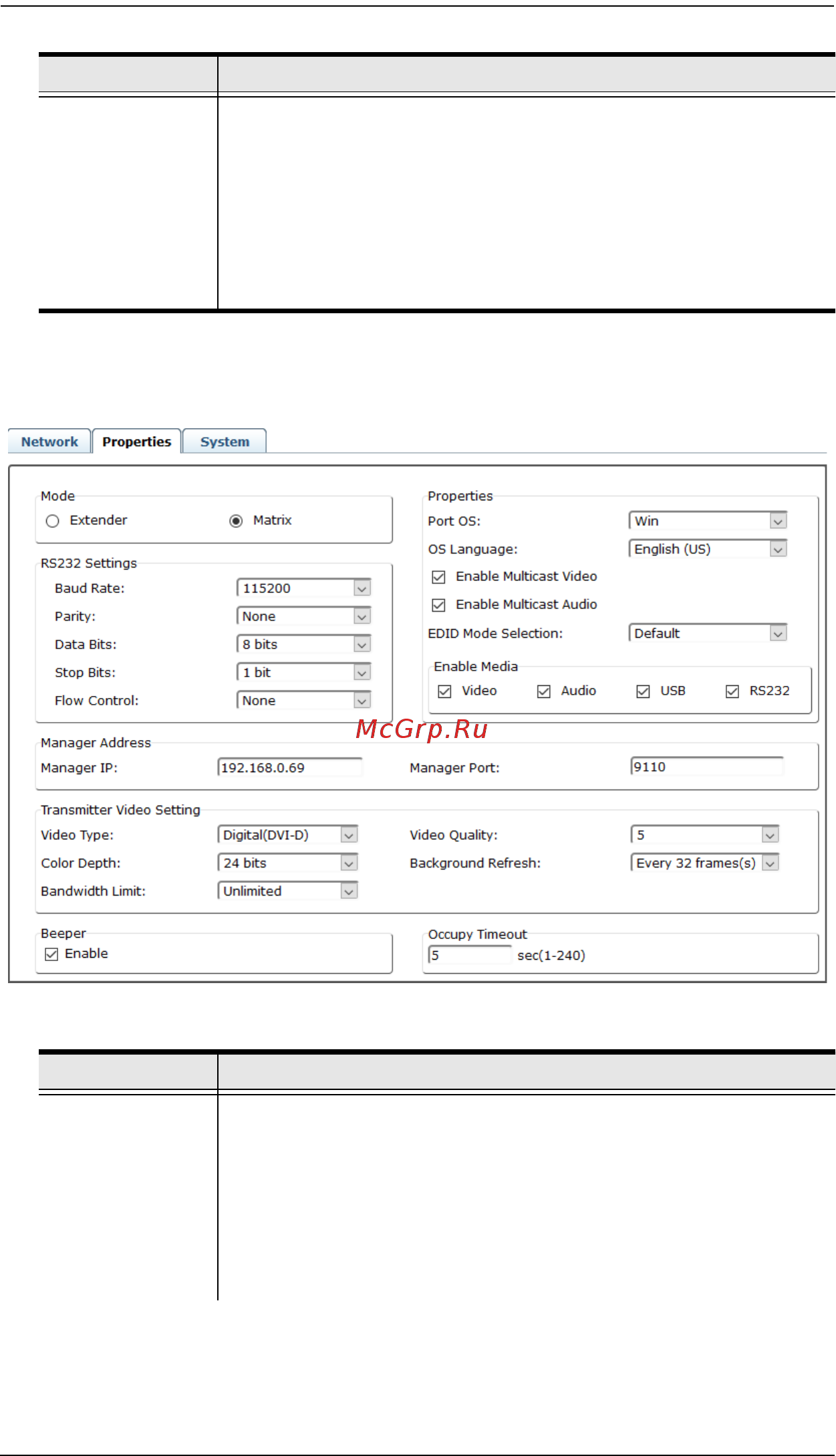

3. Click the Properties tab to configure the Transmitter’s properties:
Network
Configuration
For dynamic IP address assignment, select the Obtain IP
address automatically radio button.
To specify a fixed IP Address, Subnet Mask, and Default
Gateway, select the Set IP address manually radio button and
fill in the fields with values appropriate for your network.
For information to configure the network settings locally on the
device see Network Configuration, page 23.
Item Description
Mode Select Extender mode for simple one-to-one (Transmitter to
User Station) setups that are managed with the Receiver’s OSD
menu.
Select Matrix mode to manage devices and connections from
the Matrix Manager. This mode is for advanced administration
of Transmitter to User Station connections. (See Channel
Connections, page 87)
