Aten KE6900 [78/222] Online user stations

KE6900 / KE6940 User Manual

Online User Stations

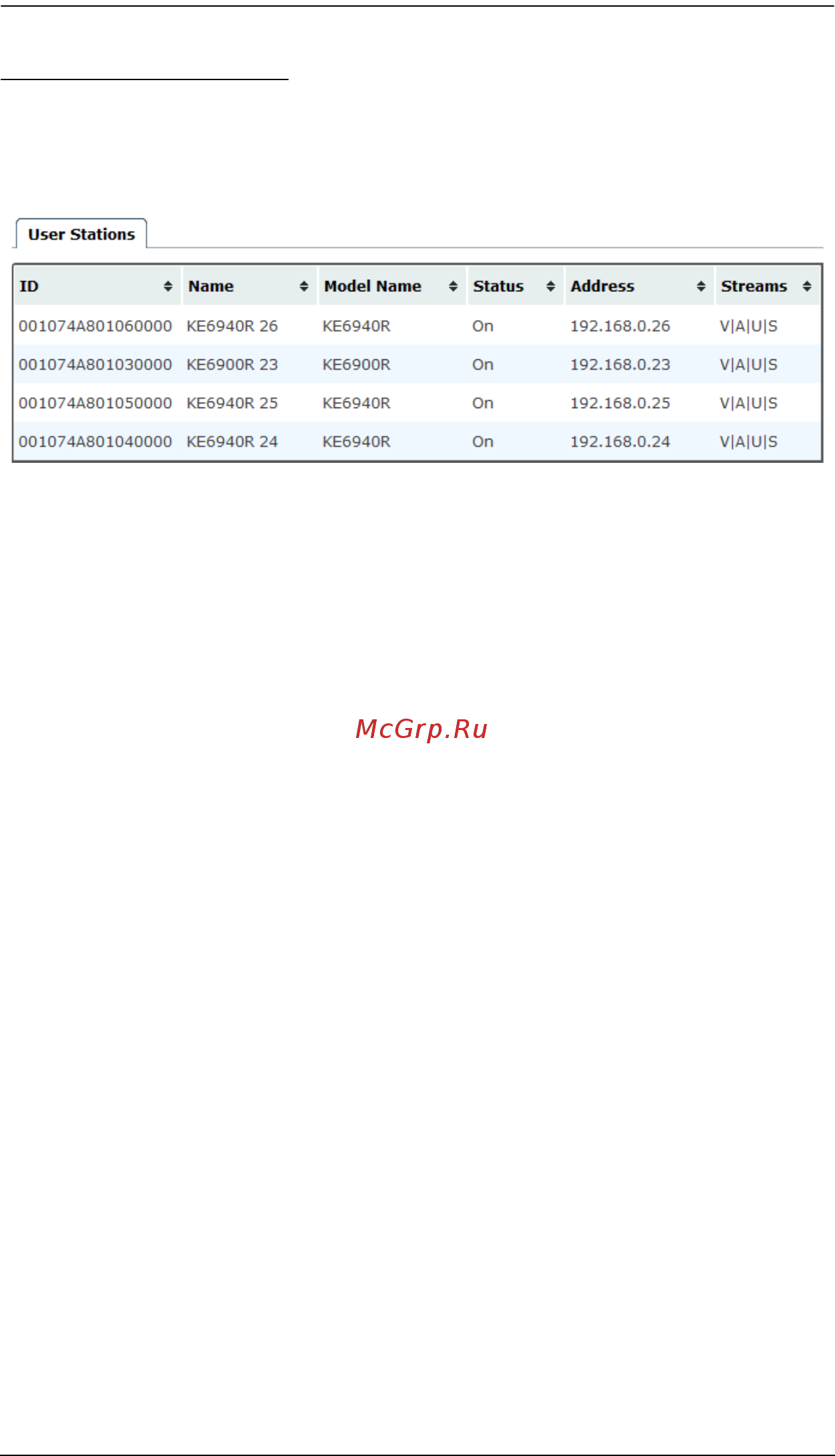

The Online User Stations page lets the administrator see all of the Receivers

that are currently available on the network and provides information about each

device.

The meanings of the headings at the top of the page are straightforward.

 ID refers to the identification number assigned by the system.

 Name refers to the name entered on the User Stations System page.

 Model Name refers to the Receiver model number.

 Status refers to the User Station’s online status.

 Address refers to the IP address of the User Station.

 Streams refers to the source type that the User Station is configured to

stream: Video, Audio, USB, and Serial.
