KE6900 / KE6940 User Manual

Latest Events

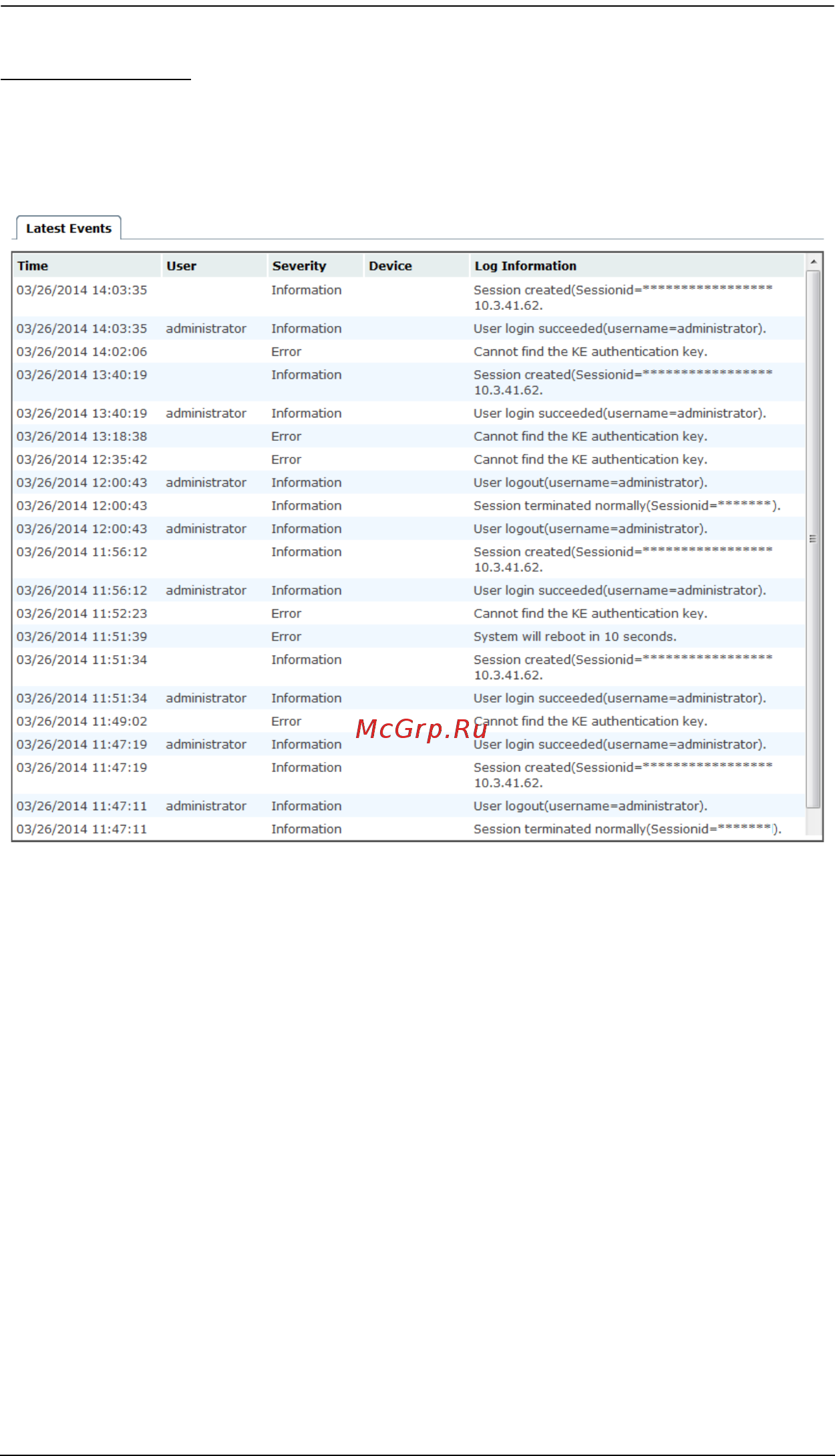

The Latest Events page lets the administrator see the most recent Dashboard

events that relate to the current connections and sessions, and provides details

about each.

The meanings of the headings at the top of the page are straightforward.

 Time refers to the date and time that the event occurred.

 User refers to the username that the event relates to. If no username

appears, the event is general system information.

 Severity refers to the event’s severity type: Information, Error, or Warning

 Device refers to the Transmitter or User Station that relates to the event. If

no device is listed the event refers to the Matrix Manager.

 Log Information provides detailed information about each event.
