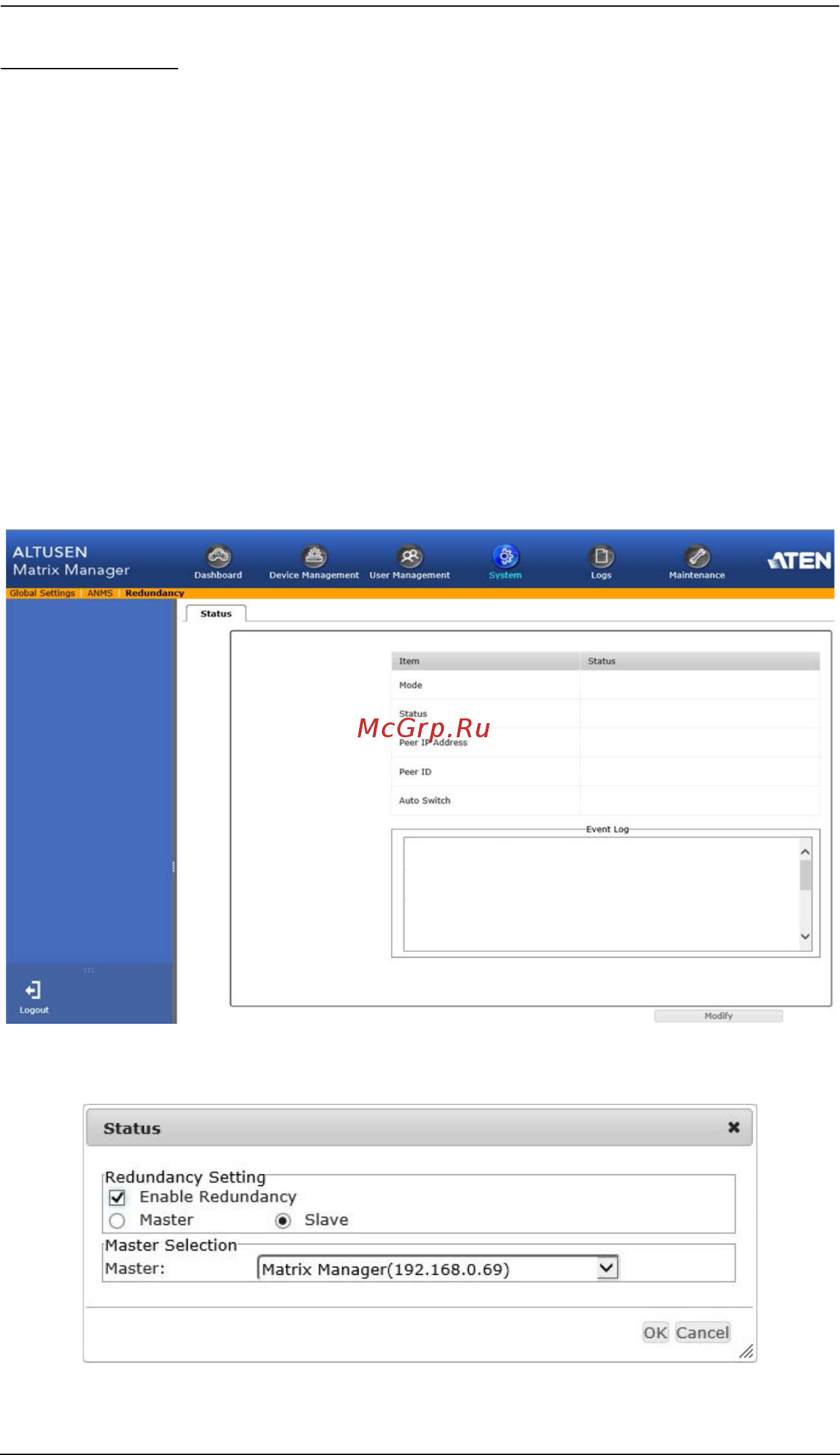

Chapter 9. System
129
Redundancy
The Redundancy page sets up a second computer as backup in case the
computer hosting the Matrix Manager goes off-line. If the Matrix Manager is
off-line, the secondary computer will automatically take over operations,
allowing all connections to continue without disruption – with only a brief
period (30 seconds) when new connections can't be started. When the primary
computer comes back online it retrieves the database with any changes from
the secondary computer and re-takes all Matrix Manager operations.
To setup Redundancy, do the following:
1. Install the Matrix Manager on a second computer with the USB License
key (see page 47).
2. Open the Matrix Manager and go to the System
→ Redundancy page.
3. Click Modify. The Status window appears:
4. Check the Enable Redundancy box and select the Slave radio button.
