Aten KE6900 [83/222] Device management

Chapter 7

Device Management

Overview

The Device Management tab contains five menu bar items: User Stations,

Transmitters, Channels, Profiles and Video Wall. Each page provides a way

to add, configure and schedule the Transmitters/Receivers connections. Before

Transmitters and Receivers can be added they must be connected to the

network and have an IP address.

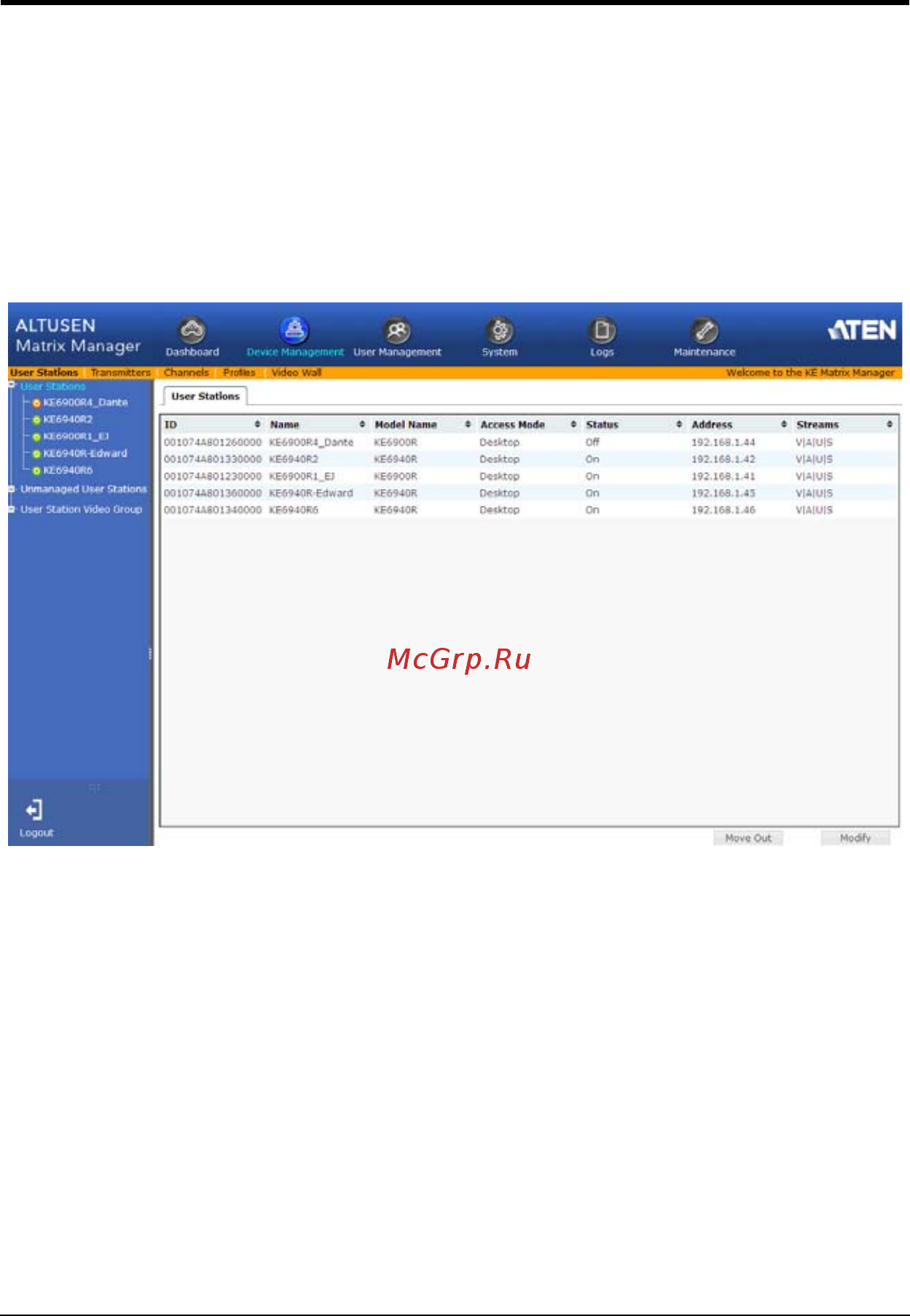

The Device Management tab opens on the User Stations page, as shown here:
