Aten KE6900 [86/222] Configuring a user station

KE6900 / KE6940 User Manual

Configuring a User Station

A User Station’s settings can be modified from the User Stations main page.

Changes that are saved here are then updated on the Receiver across the

network. To configure a User Station:

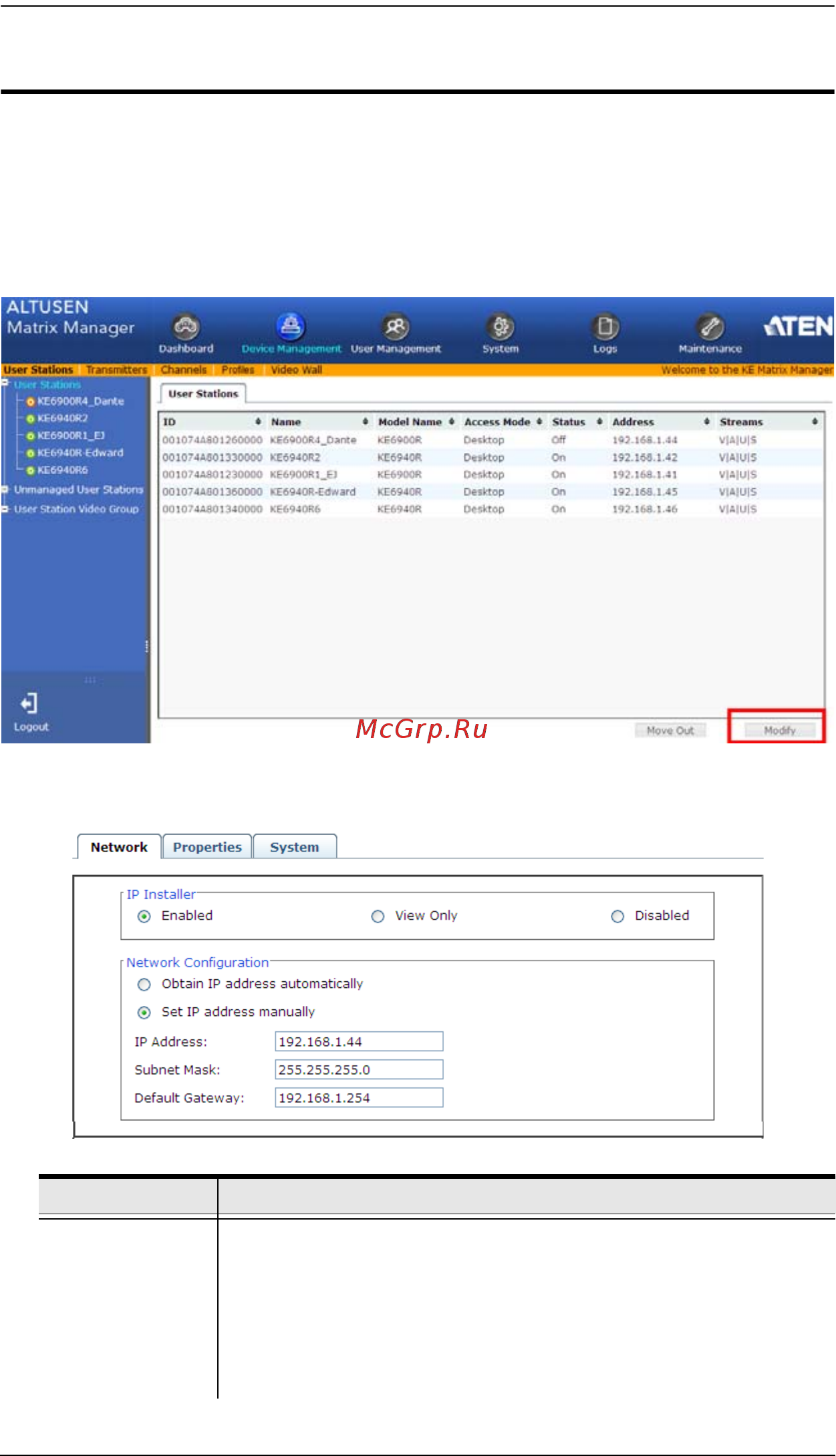

1. Select a User Station and click Modify.

2. The Network tab appears with the User Station’s IP address settings:

Item Description

IP Installer The IP Installer is an external Windows-based utility for

assigning IP addresses to the device. Click one of the radio

buttons to select Enable, View Only, or Disable for the IP

Installer utility. See IP Installer, page 194 for details.

For security, we strongly recommend that you set this to View

Only or Disable after each use.
