Aten KE6900 [45/222] Properties

Chapter 3. OSD Operation

Properties

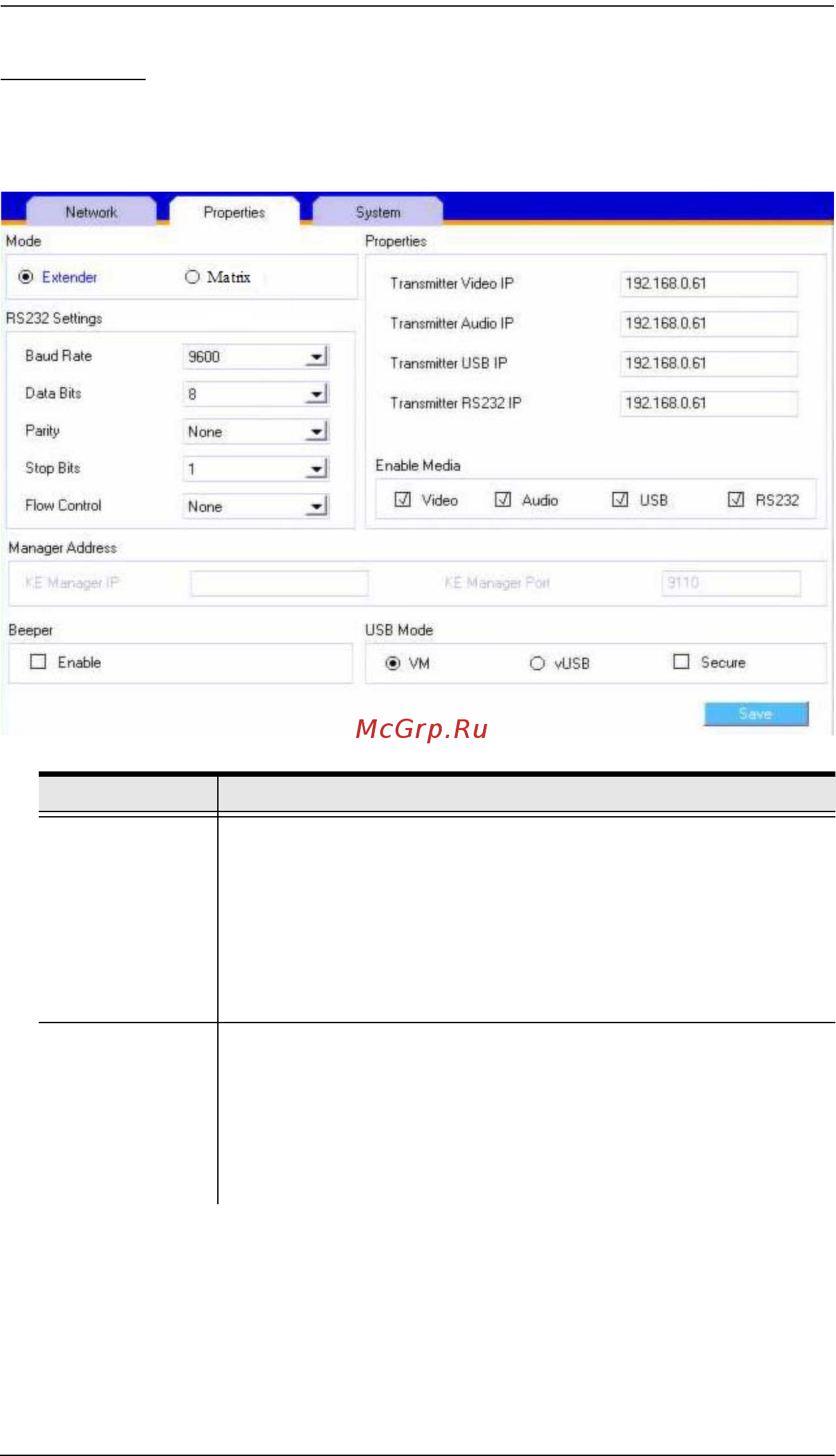

The Properties tab allows you to configure the User Station’s extender

settings:

Item Description

Mode Select Extender mode for simple one-to-one (Transmitter to

User Station) setups that are managed with the Receiver’s OSD

menu.

Select Matrix mode to manage devices and connections from

the Matrix Manager web GUI. This mode is for advanced

administration of Transmitter to User Station connections.

(See Channel Connections, page 87)

Properties If you selected Extender mode (above) set the Transmitter IP

address for the User Station’s Video, Audio, USB, and RS232

source signals.

If you selected Matrix mode (above) the Properties will be

grayed out. Use Channels to configure the Transmitter

connections. (See Channel Connections, page 87)
