Chapter 3. OSD Operation
29
OSD Interface

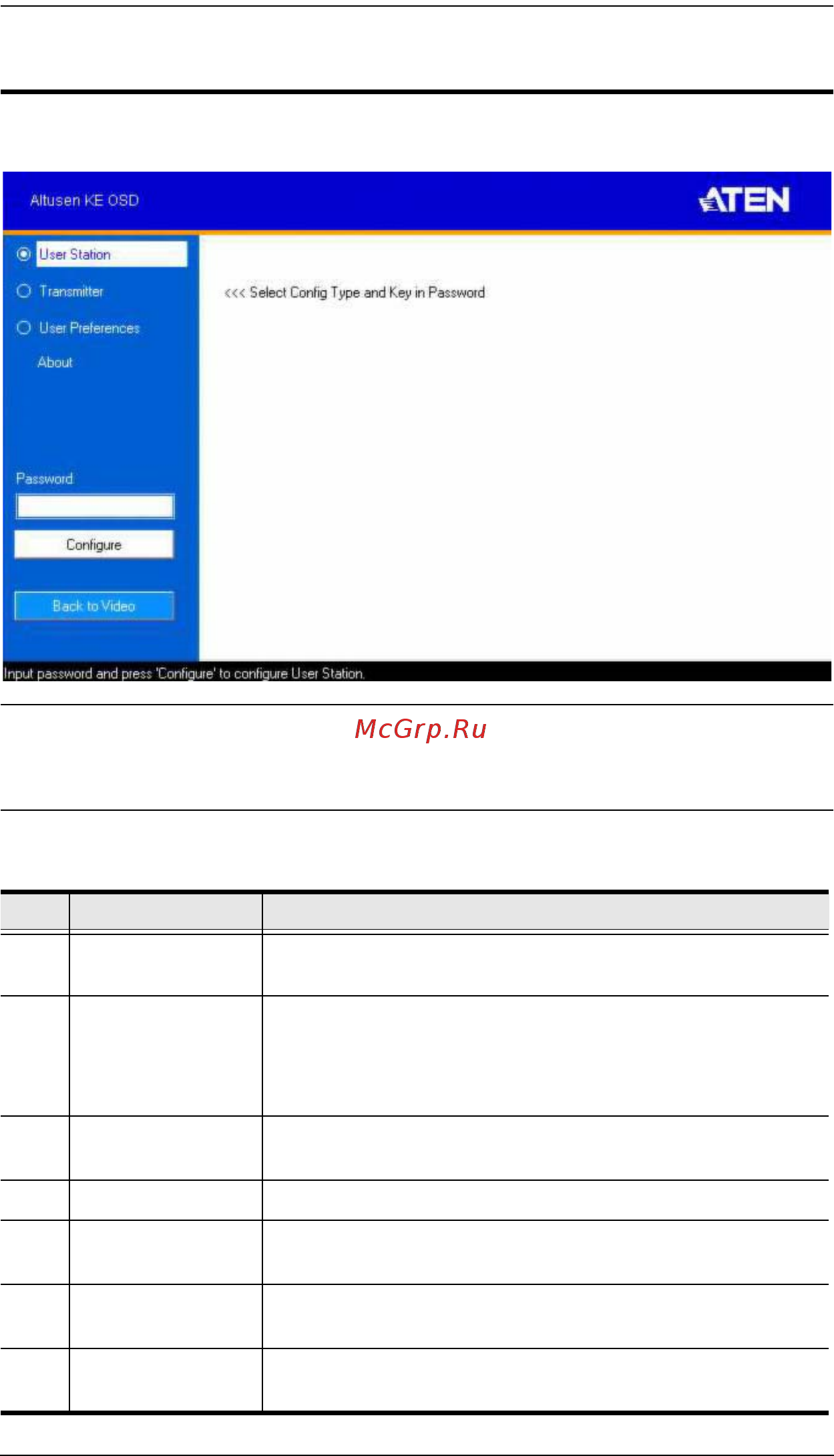

After you invoke the OSD, the main page appears:
Note: A password is required to enter the OSD. The default password is:
password. For security purposes, we recommend you change this to
something unique.
The OSD components are described in the table, below:
No. Item Description
1 User Station
(Receiver)
Select this radio button, enter a password, and click
Configure to enter the User Station Configuration screen.
2 Transmitter Select this radio button, enter a password, and click
Configure to enter the Transmitter Configuration screen.
Note: Receiver must first discover the transmitter over the
network for this option to be available.
3 User Preferences Select this radio button, enter a password, and click
Configure to enter the User Preferences screen.
4 About About provides information regarding the OSD version.
5 Password Input the OSD password and click Configure to enter the
selected configuration screen. See note for password.
6 Configure After entering a password, click Configure to enter the
selected configuration screen.
7 Back to Video Clicking this button exits the OSD and returns you to the
computer’s video display.
