KE6900 / KE6940 User Manual
44
Profile / Video Wall Page

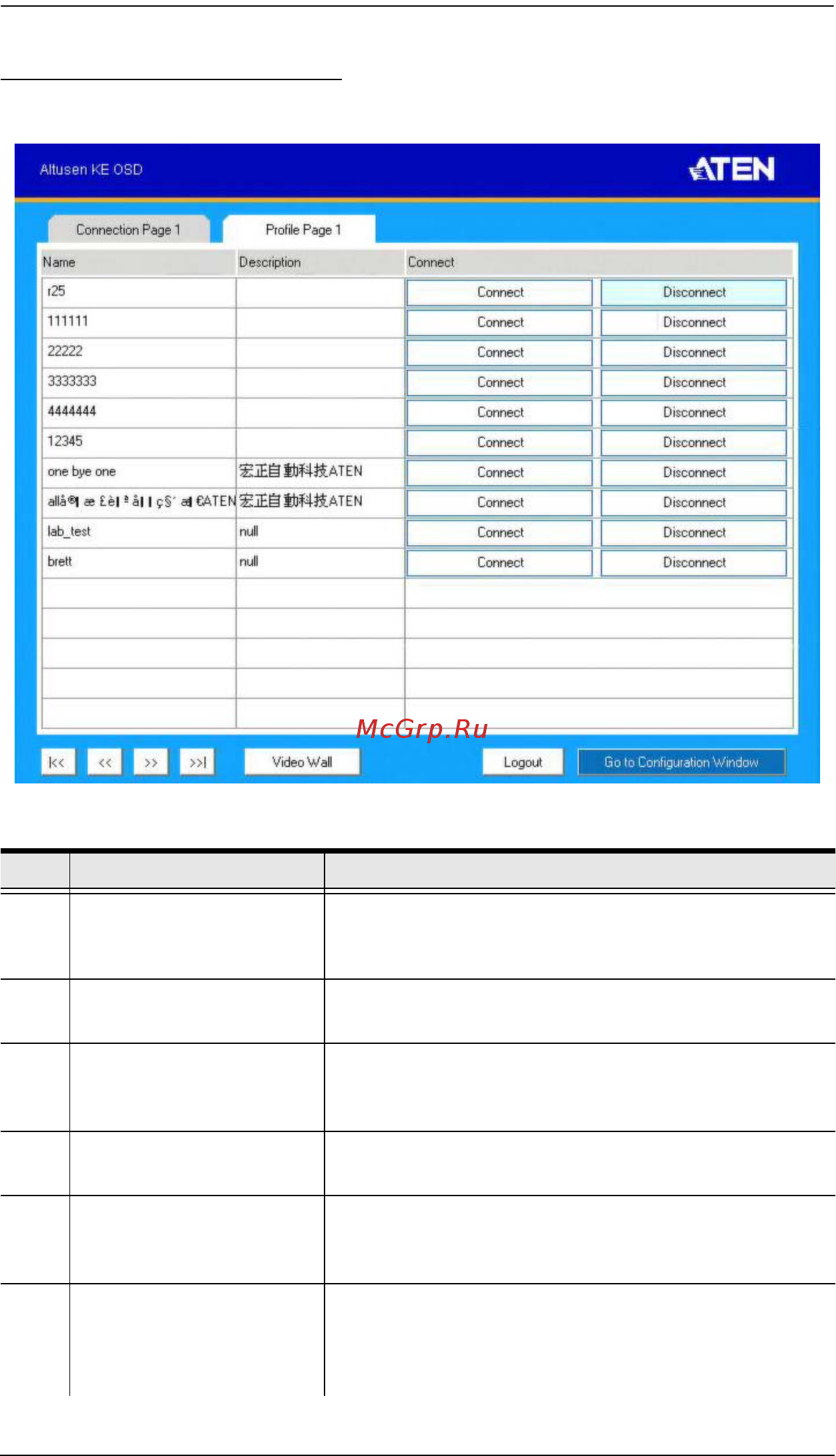

Click the Profile / Video Wall Page tab and the following screen appears:
The Profile /Video Wall Page components are described in the table, below:
No. Item Description
1 Name Lists the Profiles and Video Walls available. Profiles
/ Video Walls give User Stations access to Channels
and allow you to push the connection.
2 Description The field provides a description of the Profile/Video
Wall that was entered when it was created.
3 Connect Click Connect and the User Station will connect with
the settings of that Profile or Video Wall (see
Profiles, page 94 or Video Wall, page 98).
4 Disconnect Click Disconnect to end the current Profile or Video
Wall connection.
5 Next Arrow Use these two buttons to navigate to the next page
or to the end of the list if there are more Profiles/
Video Walls available than can be seen on the page.
6 Previous Arrow Use these two buttons to navigate to the previous
page or to the beginning of the list if there are more
Profiles/Video Walls available than can be seen on
the page.
