Aten KE6900 [206/222] Single rack mounting

KE6900 / KE6940 User Manual

192

Single Rack Mounting

The 2X-031G Single Rack Mounting kit installs one KE6900 unit in 1U of

server rack space.

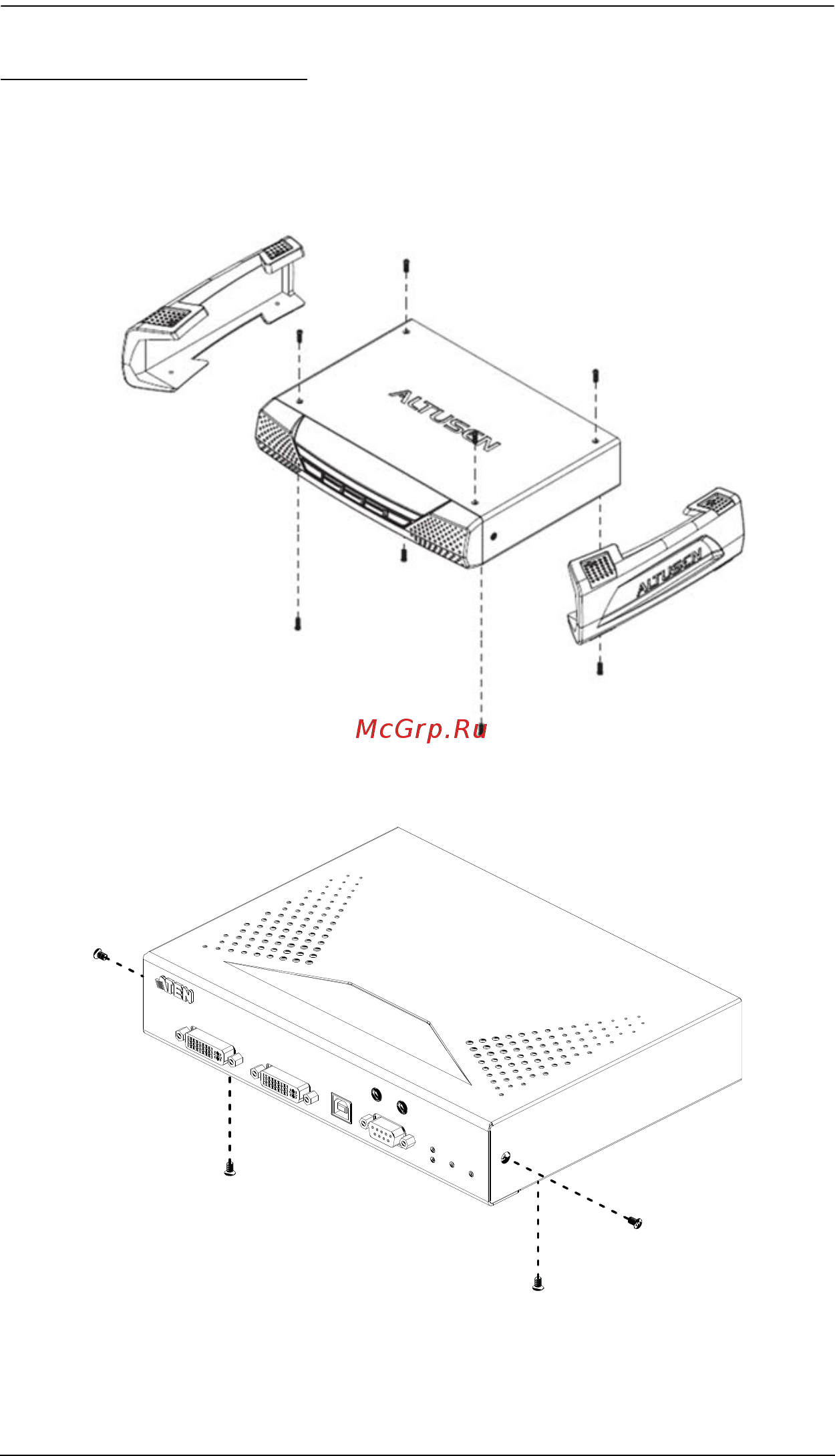

1. Remove the eight screws and plastic guards from the KE6900.

2. Remove the bottom and side screws from the KE6900.
