KE6900 / KE6940 User Manual
8

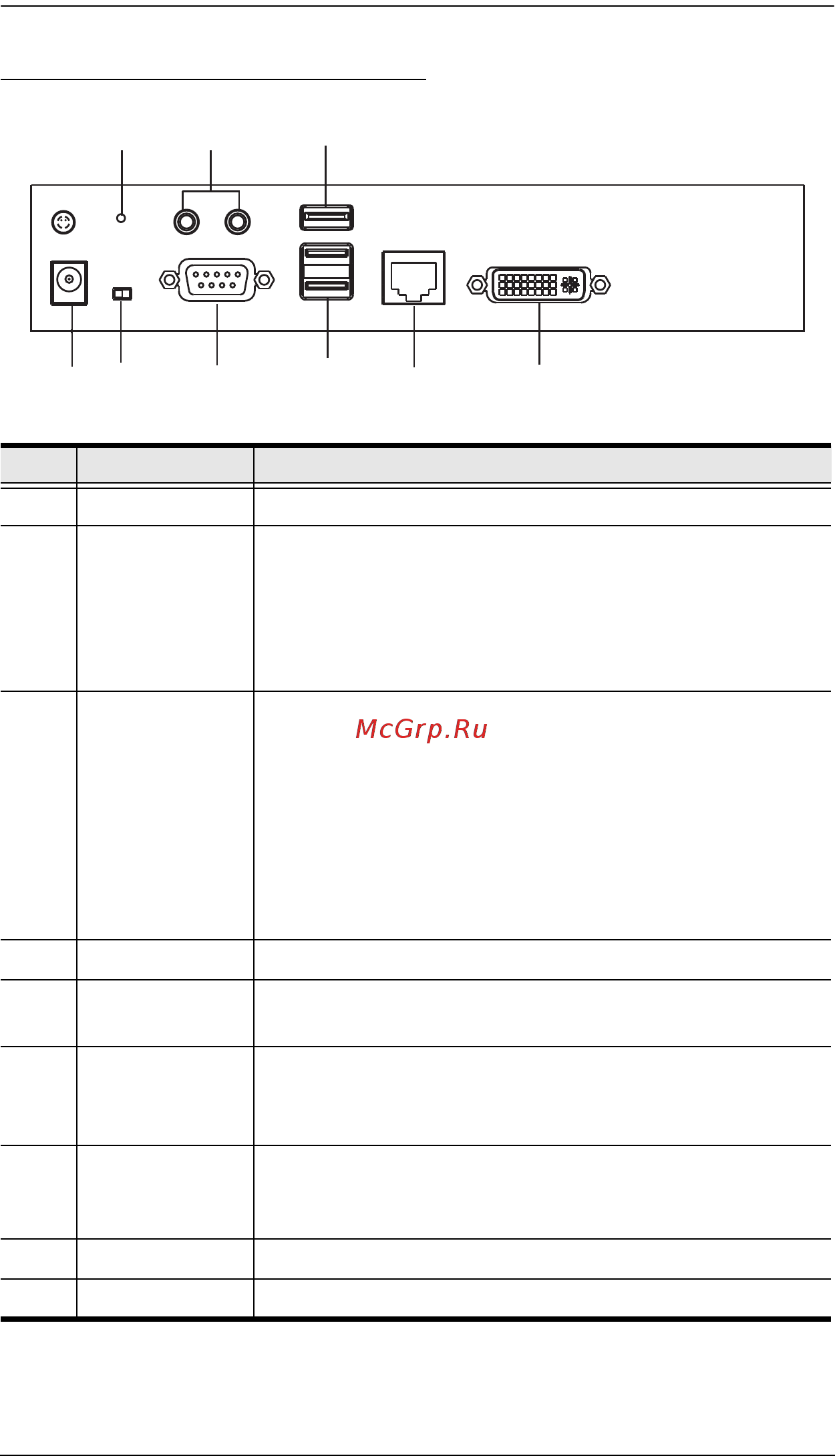

KE6900R (Receiver) Rear View
No. Component Description
1 Power Jack The cable from the DC Power adapter connects here.
2 Function Switch Use this slide switch to set the unit’s mode:
Extension: Sets the device to use the normal TX to RX
extension mode.
RS-232 Config: Sets the device so that you can
configure it using a serial connection via the RS-232 port.
3 Reset This switch must be pushed with a thin object, such as the
end of a paper clip.
Press and release to reboot the device.
Power off, hold reset then power on the device while
pressing reset to recover from a firmware upgrade
failure.
Press and hold it in for more then three seconds
resets the unit back to its factory default settings.
4 RS-232 Port This RS-232 serial port is for connecting to a serial terminal.
5 Audio Ports These mini stereo ports are for the local speakers (green)
and microphone (pink).
6 USB Port Use this port for virtual media or a USB peripheral device.
Note: When using a USB disk plugged into this port, see
USB Mode, page 74.
7 Console Ports The unit’s USB keyboard and USB mouse plug into these
ports. When using a keyboard or mouse with special
functions, see USB Mode, page 74
8 LAN Port The cable that connects the unit to the LAN plugs in here.
9 DVI-I Output The cable from the local DVI monitor plugs in here.
3
1
2
4
5
6
7
8
9
