Aten KE6900 [61/222] Matrix manager software installation

Chapter 4

Matrix Manager Software Installation

Overview

The Matrix Manager is a browser based GUI that provides management of

KE6900 / KE6940 devices over a network. You can download the Matrix

Manager Lite version which is free and manages up to 8 KE devices, or

purchase a full version of the Matrix Manager software. To purchase the full

version contact your local authorized ATEN dealer. To download the free

Matrix Manager Lite software, use the instructions below.

Download - Trial Version

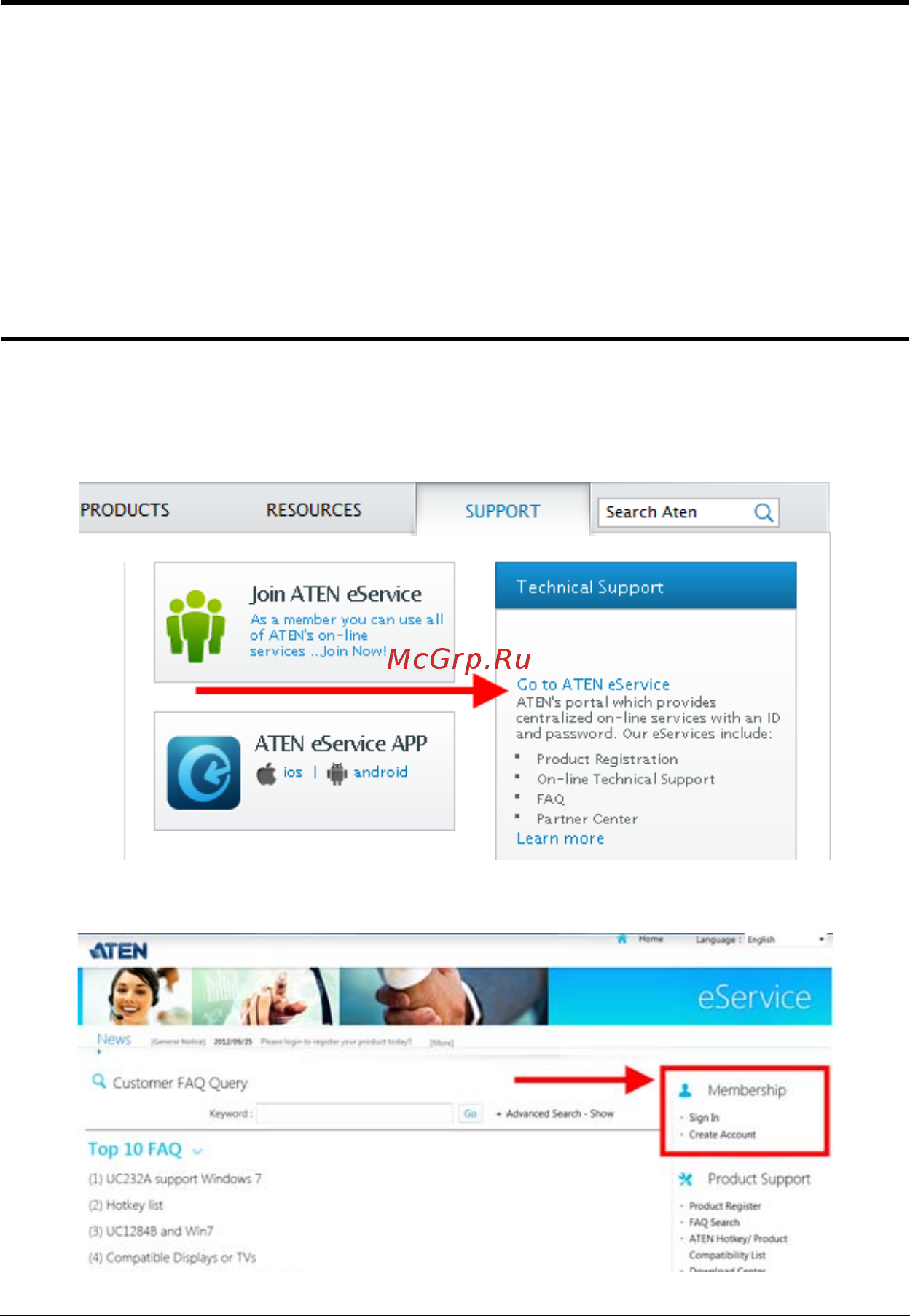

To download the Matrix Manager Lite software, do the following:

1. Visit our website and click Support

→ Go to ATEN eService.

2. Create an account and Sign In to ATEN eService.
