Aten KE6900 [114/222] Adding a video wall

KE6900 / KE6940 User Manual

100

Adding a Video Wall

To add a Video Wall, do the following:

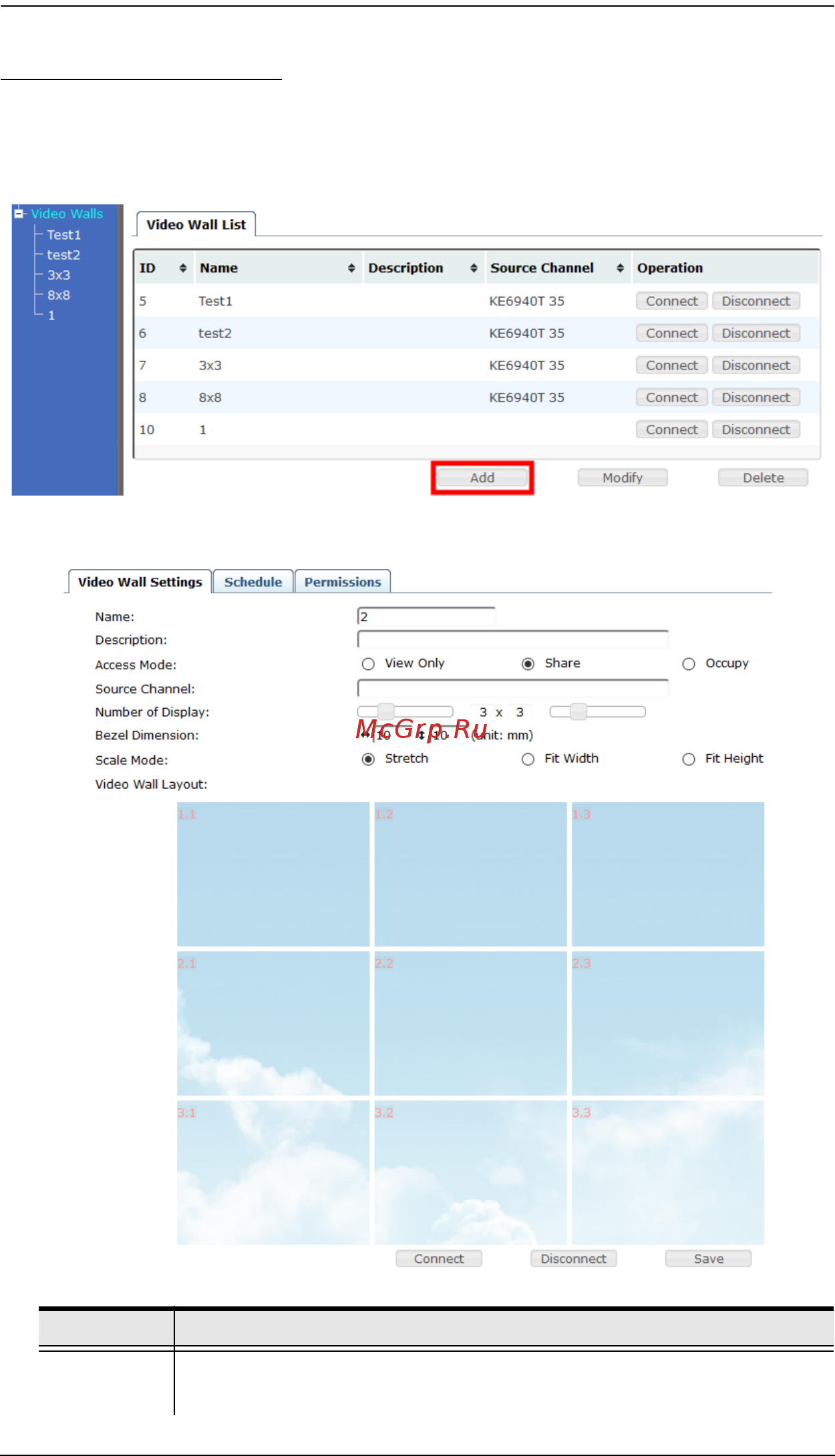

1. From the Video Wall main page, click Add:

2. The Video Wall Settings tab appears allowing you to configure the settings:

Item Description

Name/

Description

Enter a Name and Description for the Video Wall.
