KE6900 / KE6940 User Manual

130

5. Use the Master drop-down menu to select the primary computer’s IP

address.

6. Click OK.

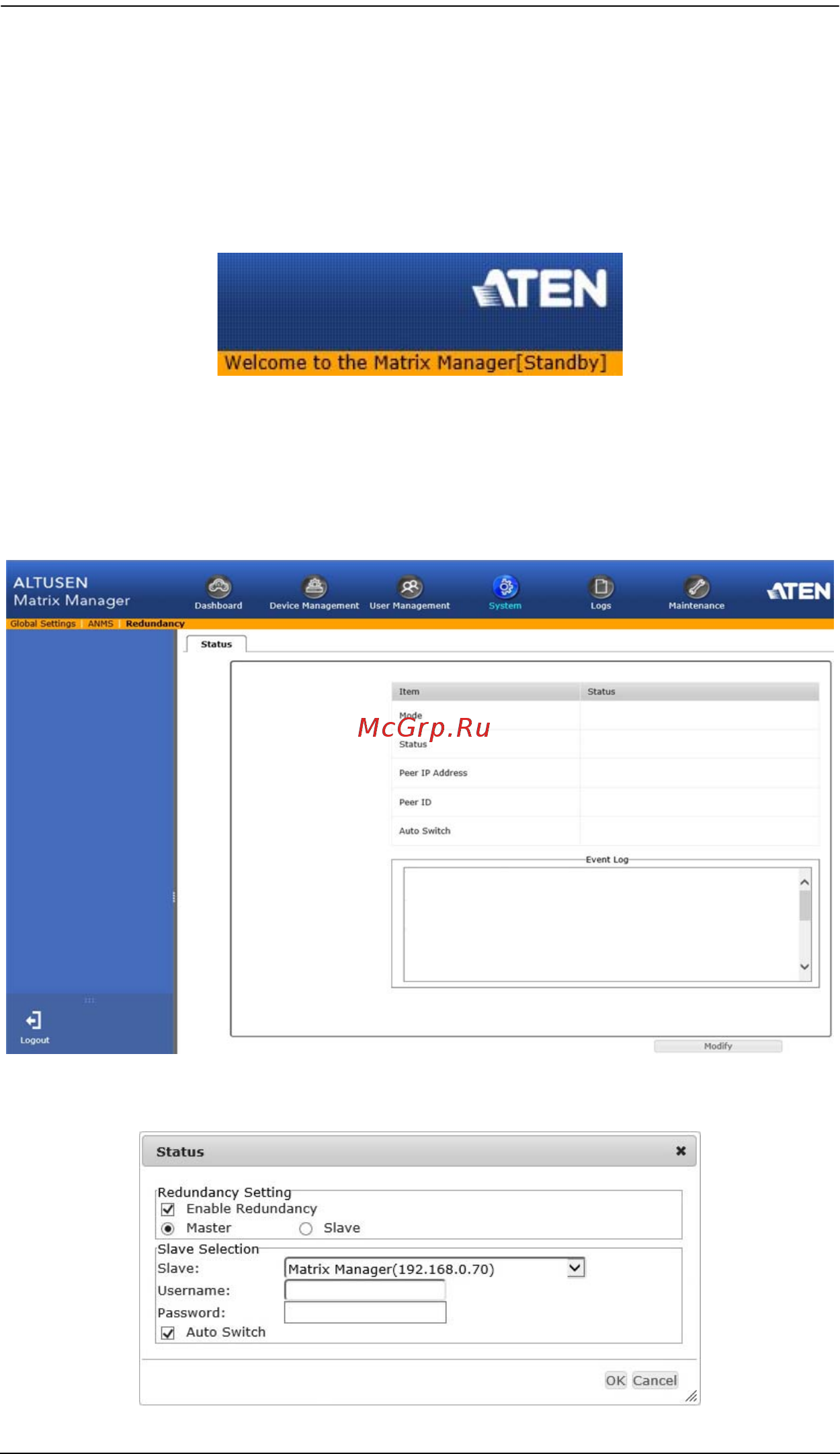

7. This computer is now running in Standby mode, as identified in the

orange status bar:

8. Remove the USB License key and plug it into the primary computer

running the Matrix Manager software.

9. Open the Matrix Manager on the primary computer and go to the System

→

Redundancy page.

10. Click Modify. The Status window appears:
