Chapter 9. System
131
11. Check the Enable Redundancy box and select the Master radio button.
12. Use the Slave drop-down menu to select the secondary computer’s IP
address.
13. Enter the Username and Password of the secondary computer’s local
administrator account.
14. Check the Auto Switch box to automatically switch the Matrix Manager
to the secondary computer when the primary computer is offline – and
reverse the action when the primary computer is back online.
15. Click OK.

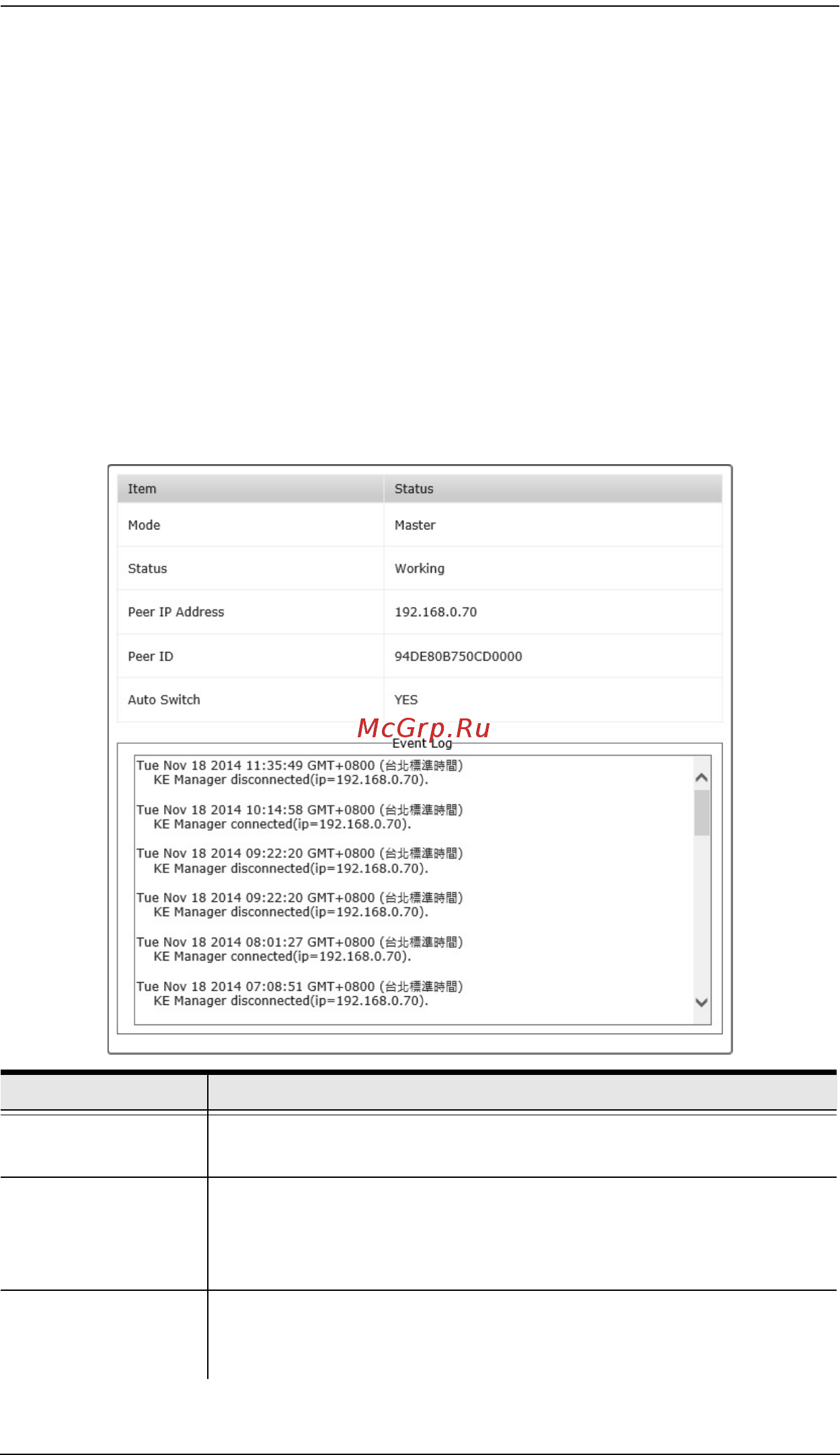

16. The Redundancy page provides information about the configuration.
Item Action
Mode Displays the role of the computer running the Matrix Manager
software: Master (primary) or Slave (secondary).
Status Displays Working for the computer currently managing the
Matrix Manager database. Displays Standby when the computer
is waiting as a backup and getting database updates from the
primary computer running the Matrix Manager.
Peer IP Address Displays the IP address of the computer configured to send
(primary) or receive (secondary) the database updates for
redundancy.
