Chapter 11. Maintenance
143
After the CA sends you the certificate and private encryption key, save
them to a convenient location on your computer.
Importing the Private Certificate
To import the private certificate, do the following:

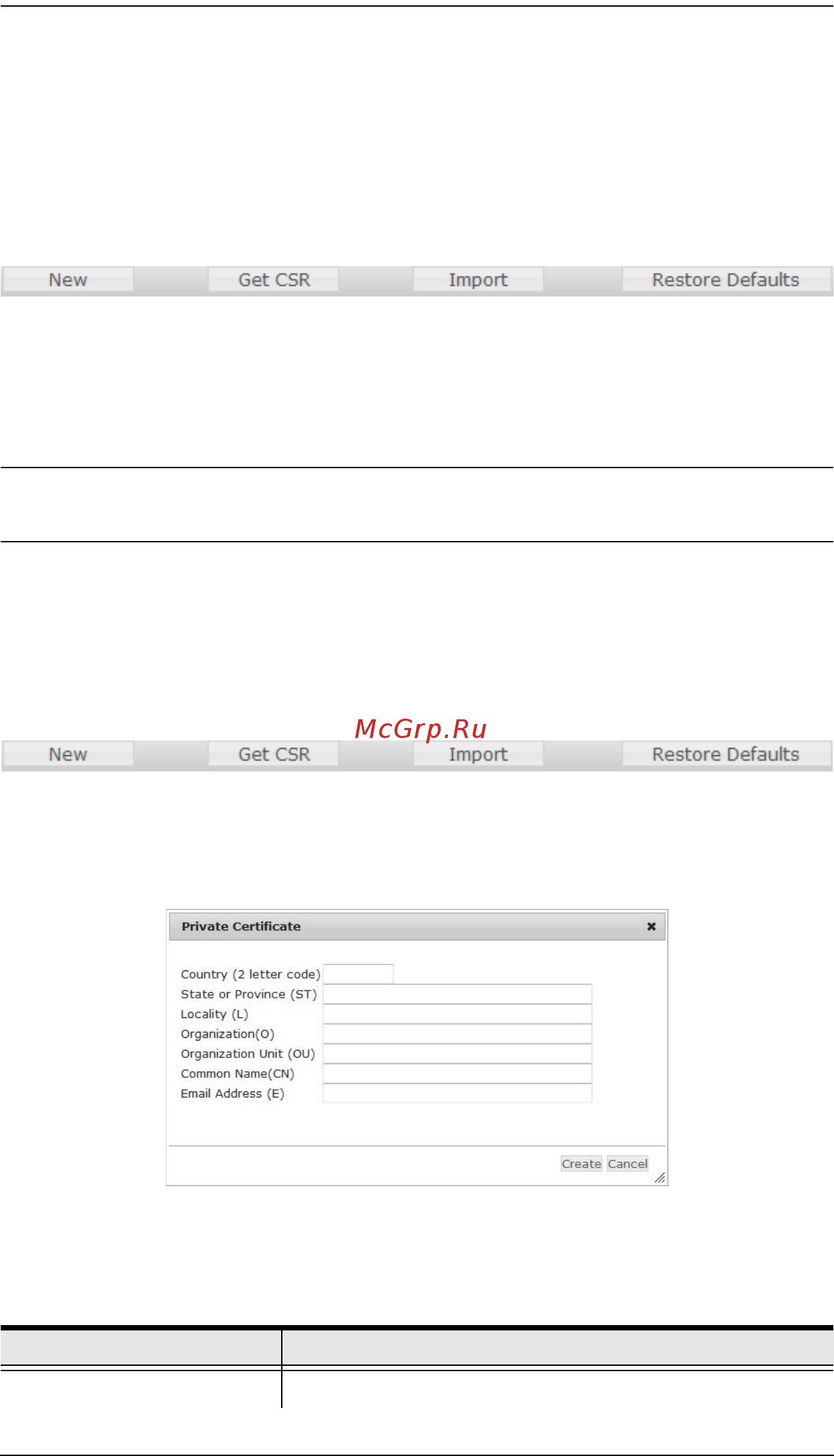

1. Click Import from the bottom of the Private Certificate page, shown here:
2. Click Browse to the right of Certificate Filename; and browse to where
your certificate file is located; and select it.
3. Click Import to complete the procedure.
Note: Clicking Restore Defaults returns the device to using the default ATEN
certificate.
Certificate Signing Request
The Certificate Signing Request (CSR) section provides an automated way of
obtaining and installing a CA signed SSL server certificate.
To perform this operation do the following:
1. Click New. The following dialog box appears:
2. Fill in the form – with entries that are valid for your site – according to the
example information in the following table:
Information Example
Country (2 letter code) TW
