Appendix
201
Determine the Distance
Distance is an important factor when setting up networks, with a shorter
distance and fewer hops through routers, data can be transmitted more
efficiently. So whenever possible decrease the distance and direct network
traffic effectively between subnets that communicate with each other to
increase the data throughput.
Ensure the Bandwidth
Ensuring the bandwidth ahead of time will guarantee performance before
installing KE devices on a network. This will eliminate the primary cause of
problems related to video quality and transmission of data. If the speed is right
at all ends of your network, then the only other causes are derived from device
failure or limits caused by a router, switch or device setting.

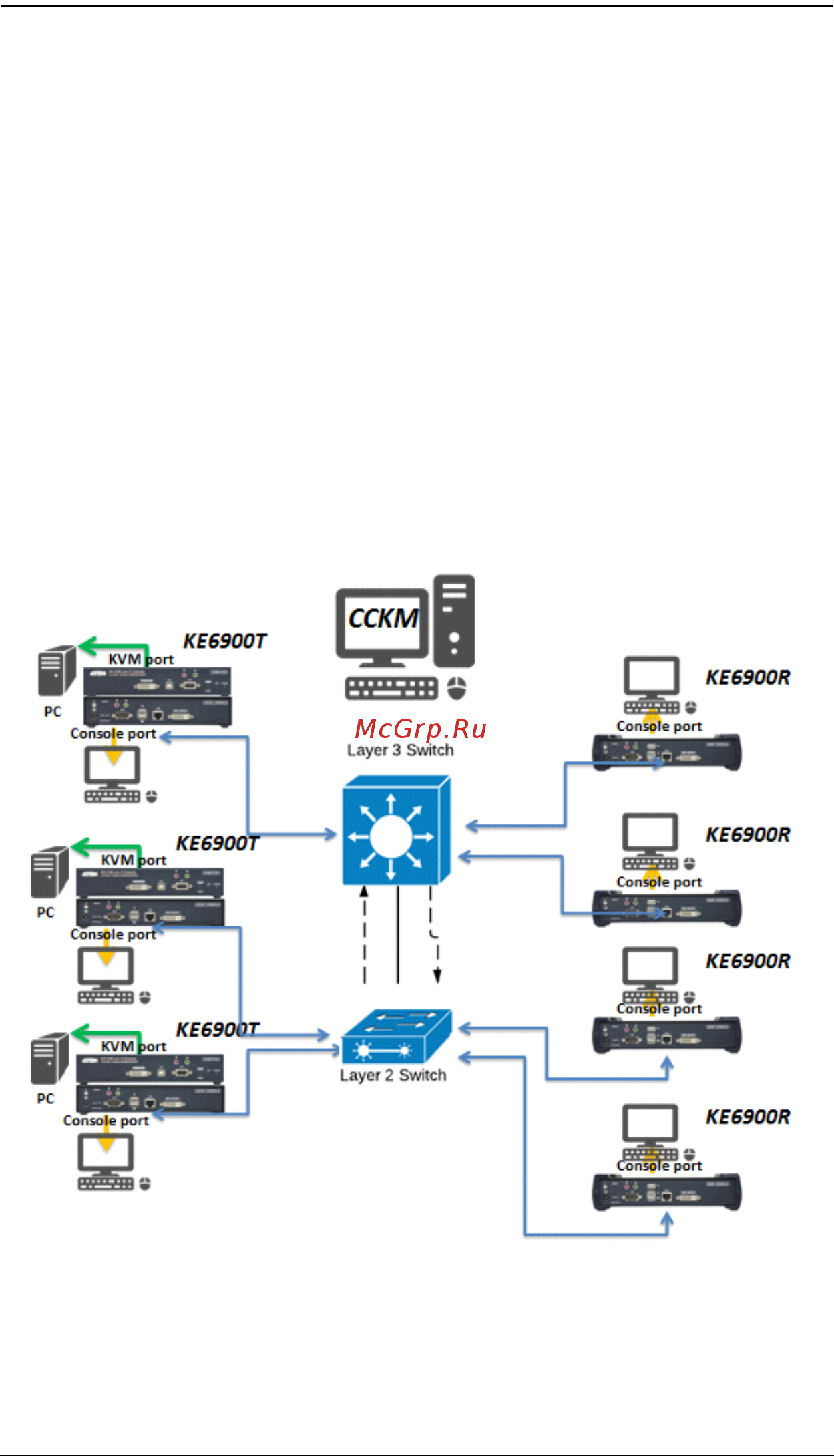

Sample Network Diagram
