Wiring Diagrams ESIEN05-04
1–84 Part 1 – System Outline
3
11
4
5
4.13 FAQ71B

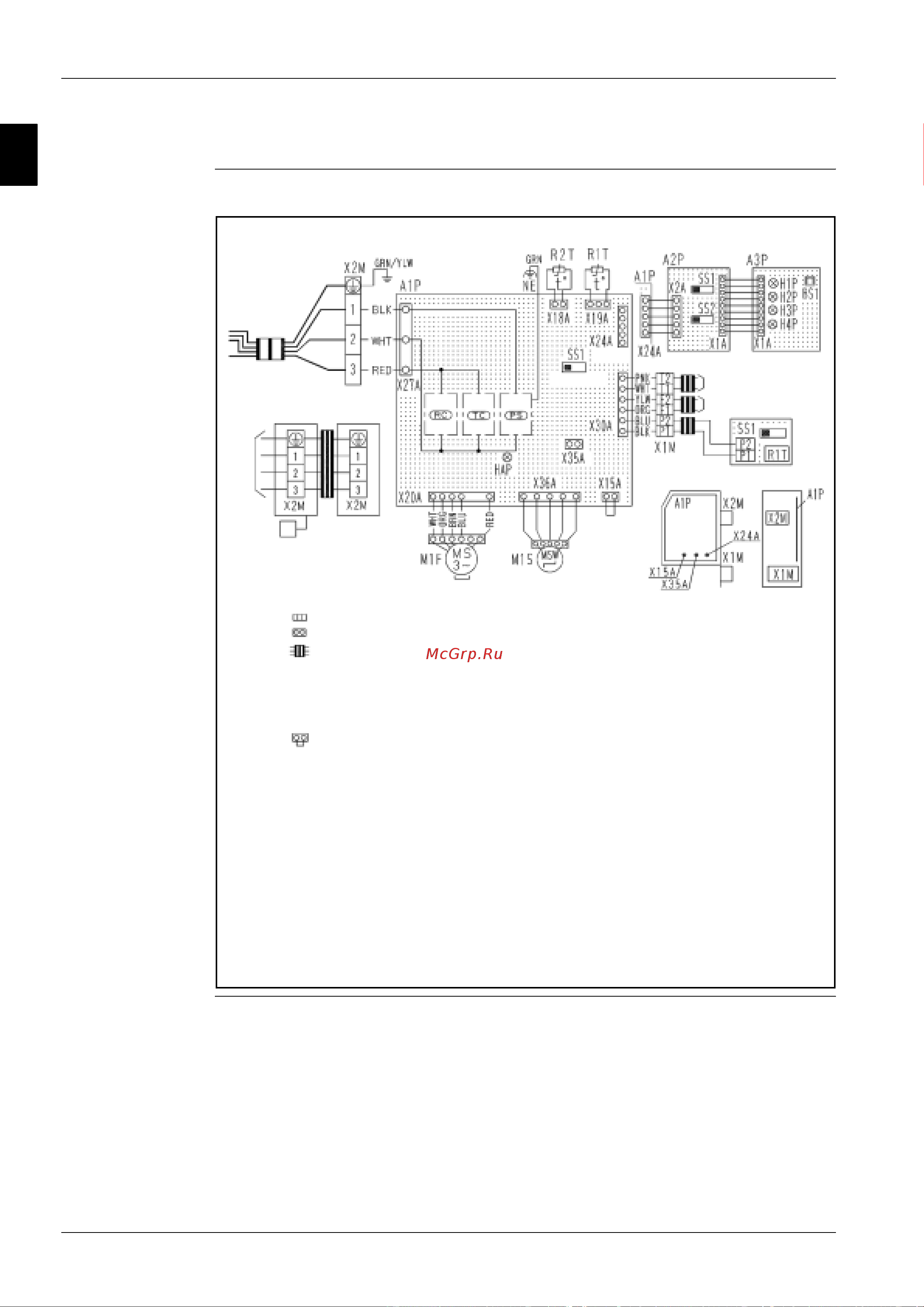

Wiring diagram The illustration below shows the wiring diagram of the unit.
Note 4
Control box
Receiver / Display unit
Attached to infrared remote control)
In case of simultaneous
operation system
Indoor unit
(Master)
Indoor unit
(Slave)
Wired remote control
to Outdoor Unit
Note 4
Notes
1.
2. In case using central remote control, connect it to the unit in accordance with the
attached installation manual.
3. remote control model varies according to the combination system, confirm
engineering materials and catalogs, etc. before connecting.
4. X24A is connected when the infrared remote control kit is being used.
5.
6. Symbols show as follows:
RED : Red
WHT : White
GRN : Green
BLK : Black
ORG : Orange
BRN : Brown
BLU : Blue
YLW : Yellow
PNK : Pink
7. Confirm the method of setting the selector switch (SS1, SS2) of wired remote
control and infrared remote control by installation manual and engineering data,
etc.
: Terminal
: Connector
: Field wiring
Norm.Emg.
remote control
Side
Front
Input from outside
Transmission wiring
Central remote control
Note 2
Shows short circuit connector.
to Outdoor
Unit
