Daikin FAQ100BVV1B [269/381] Removal of swing motor
![Daikin FCQ71B7V3B [269/381] Removal of swing motor](/views2/1697514/page269/bg10d.png)
ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–29
3
5
1
5

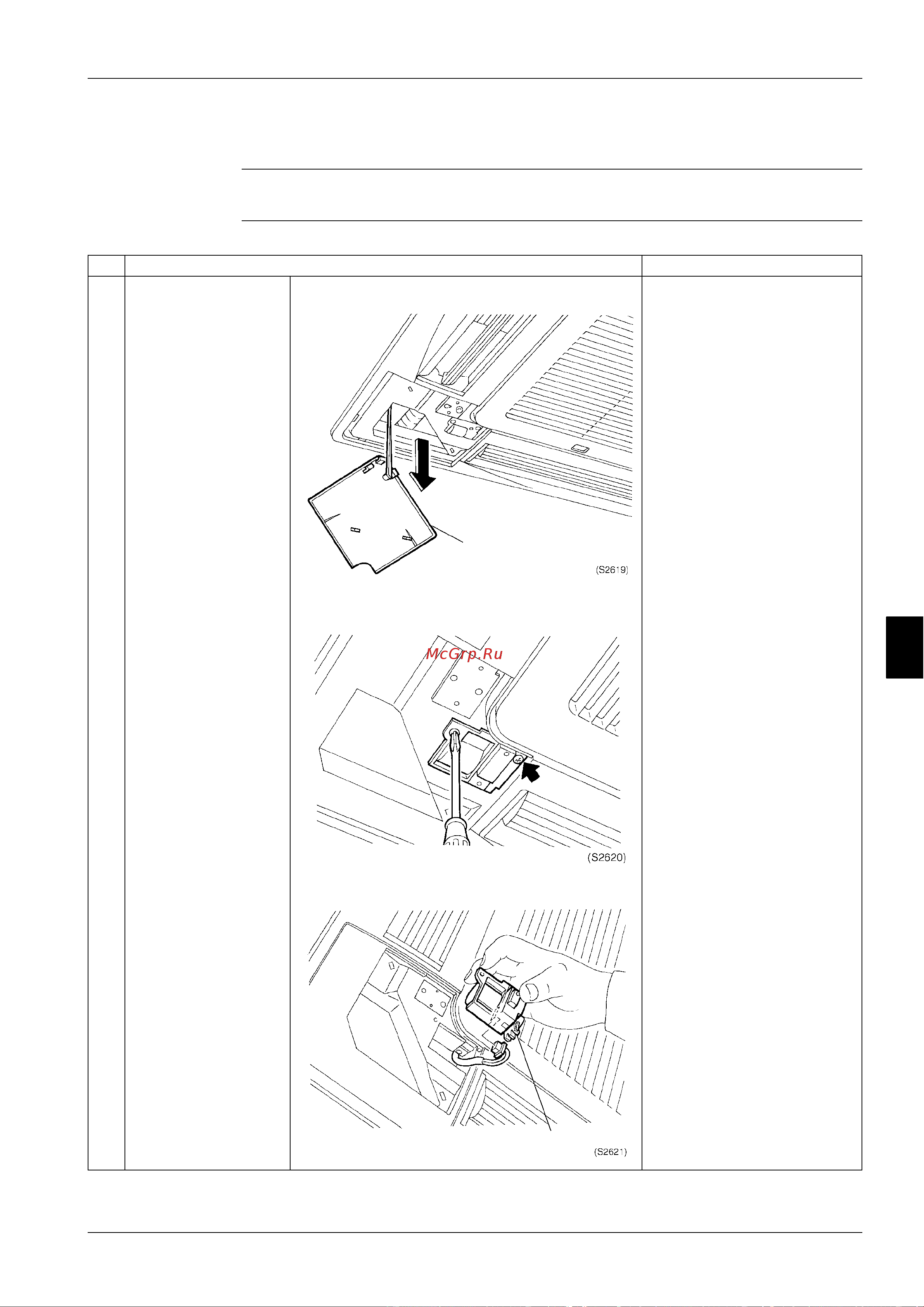

1.11.5 Removal of Swing Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step
Procedure Points
1
Remove the decoration
cover in the corner
located right below the
refrigerant piping.
2
Remove the 2 swing
motor mounting screws.
3
Disconnect the swing
motor connector.
Q The connector section is
protected with the use of
aluminum tape. Remove the
aluminum tape.
Decoration cover in the corner
Swing motor
