Daikin FAQ100BVV1B [219/381] Setting the infrared remote control

ESIEN05-04 Pre-Test Run Checks

Part 4 – Commissioning and Test Run 4–13

2.3 Setting the infrared remote control

Introduction To set the infrared remote control, you have to set the address for:

Q The receiver of the infrared remote control

Q The infrared remote control.

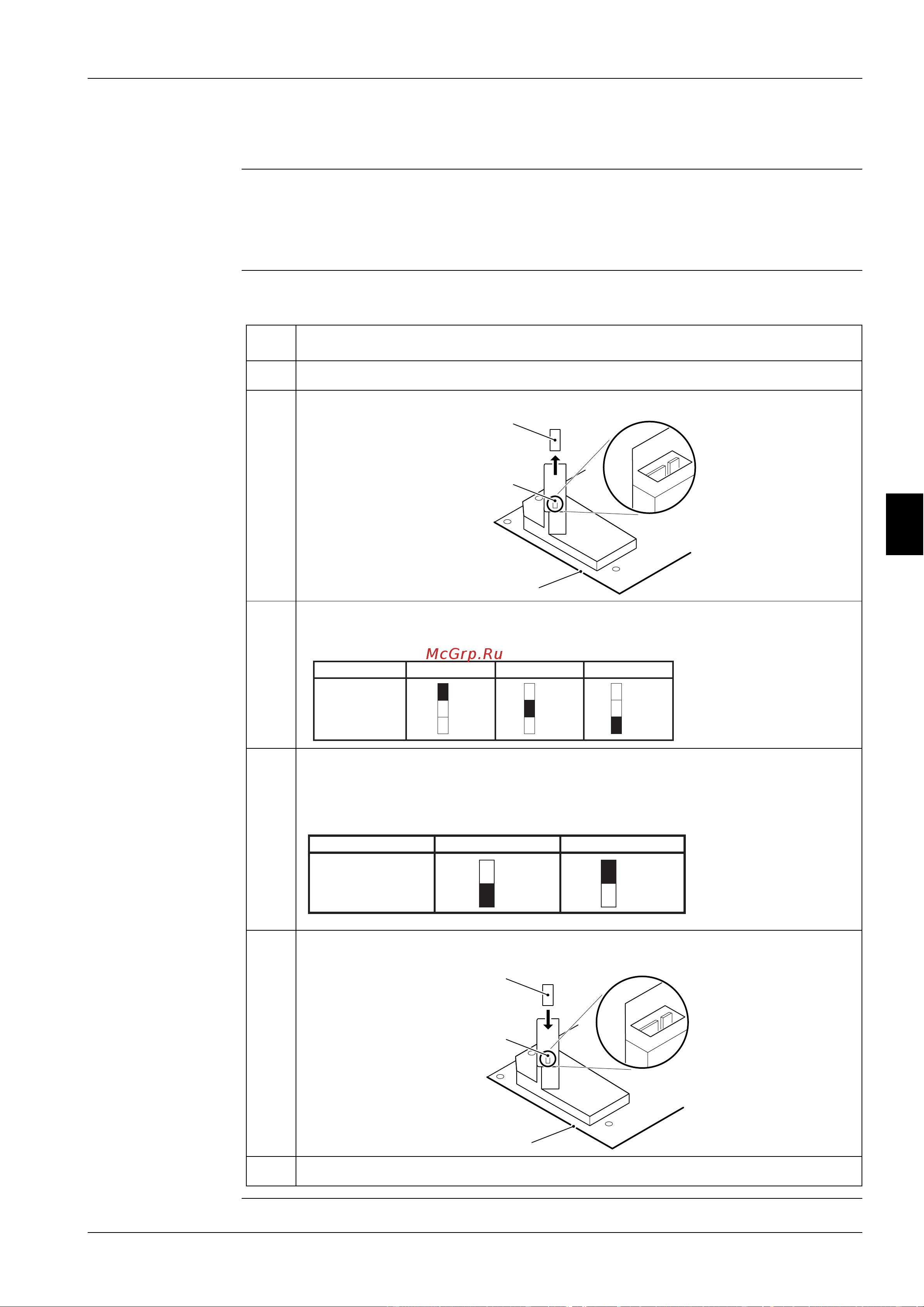

Setting the address

for the receiver

The address for the receiver of the infrared remote control is factory set to 1. To change this setting,

proceed as follows:

Step Action

1 Turn OFF the power.

2 Remove the sealing pad on the top of the receiver.

3 Set the wireless address switch (SS2) according to the table below. You can find the wire-

less address switch attached on the PCB of the receiver and it is visible through the small

opening on the back of the receiver.

4 If you use a wired and a infrared remote control for one indoor unit, proceed as follows:

1. Set the wired remote control to MAIN: On the remote control.

2. Set the infrared remote control to SUB: On the receiver with the MAIN/SUB switch

(SS1).

5 Seal off the opening of the address switch and the MAIN/SUB switch with the attached

sealing pad.

6 Make sure to also change the address on the remote control.

SS2

SS1

Sealing pad

Small opening

Receiver

Unit No.

SS2

No. 3No. 2No. 1

SS1

MAIN

SUB

MAIN/SUB

SS2

SS1

Sealing pad

Small opening

Receiver
