Disassembly and Maintenance ESIEN05-04
5–124 Part 5 – Disassembly and Maintenance
3
1
55

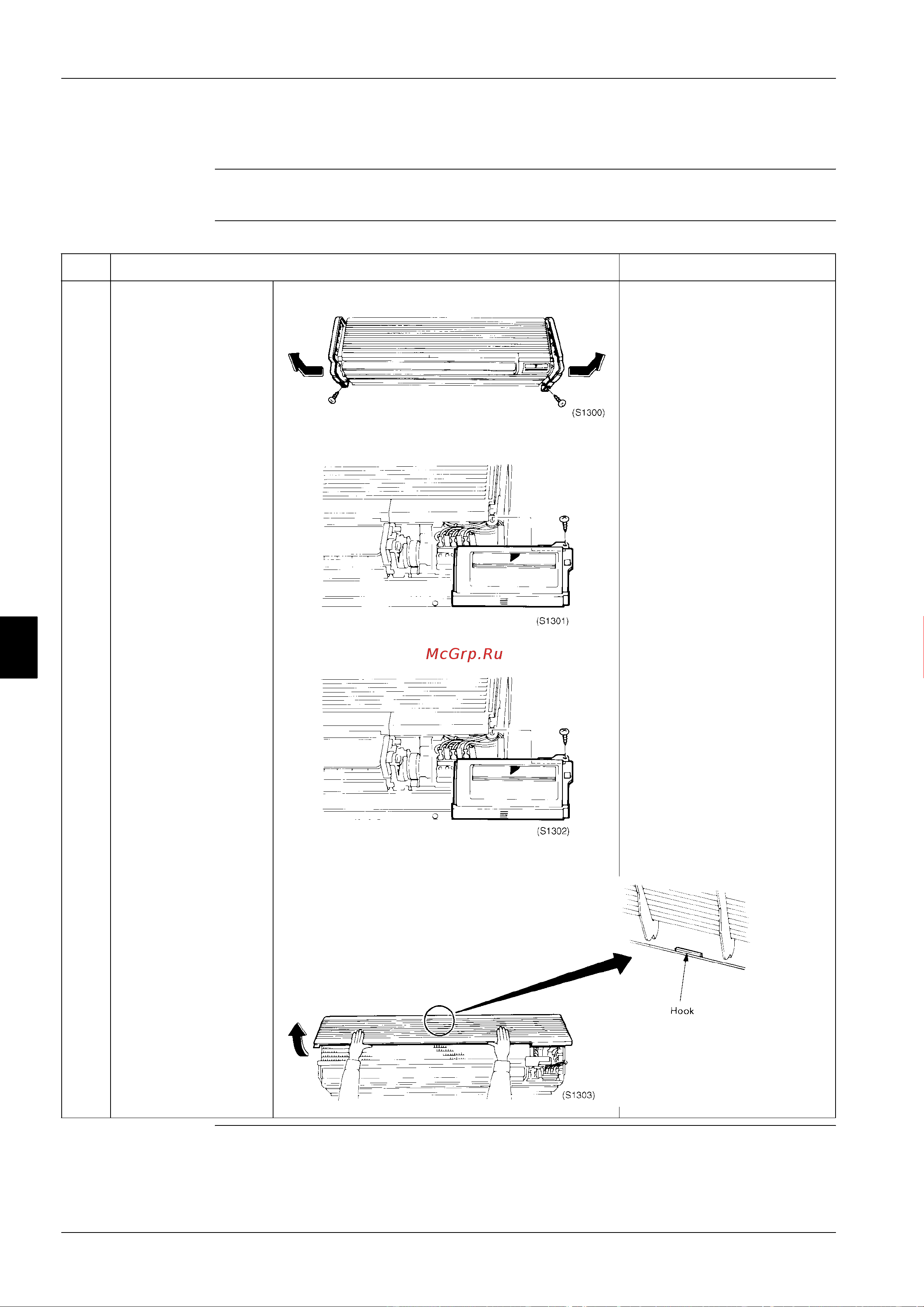

1.16.2 Removal of Slide Panel, Operation Display Cover, and Front Grille
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Remove the left and right
side panels. (1 white
screw each on left and
right)
The wiring diagram is applied to
the right side panel, and
troubleshooting list is applied to
the left side panel.
2 Remove the operation
display cover installation
screw and remove the
cover by sliding to the
right.
3 Remove the front grille
installation screws (3
M4X l12 screws with
spacers)
4 Disconnect the upper
hook of the front grille
and remove.
